Vignette 485 Architectural Gateway with 8 Buttons

OUR PART #:  P700-5492

Our Price: $926.10
List Price: $1,000.00
You save 7%!
Write the first review.
Pathway Connectivity 700-5492
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

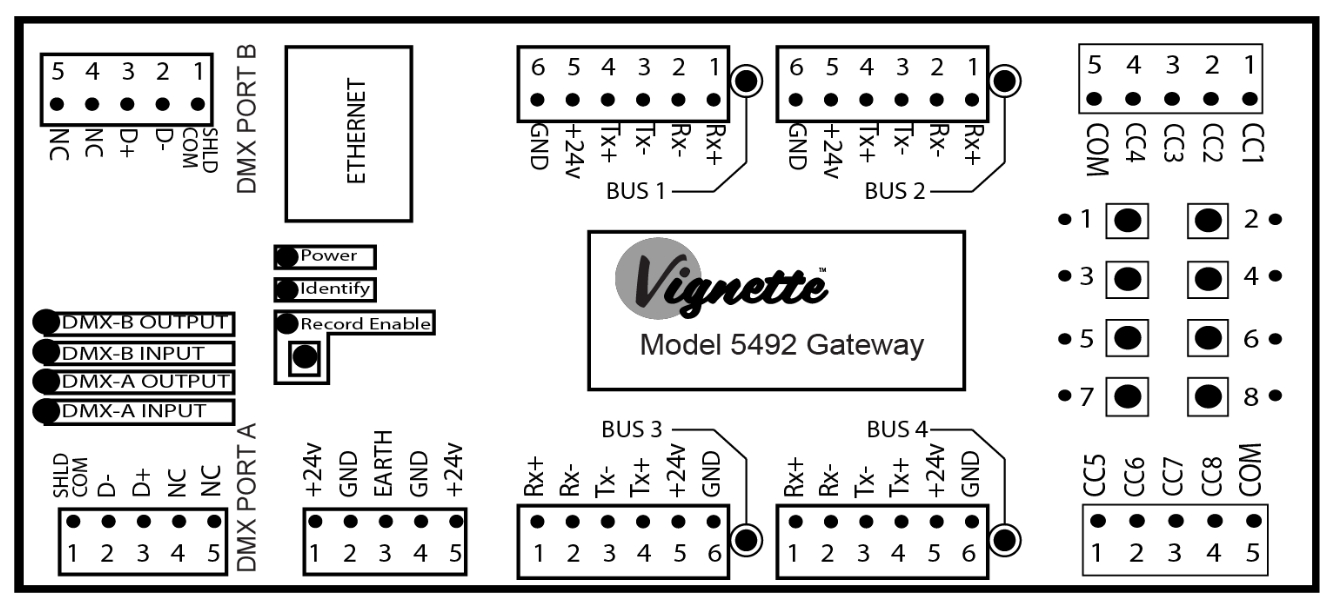

The Vignette Ethernet Gateway provides connectivity for Vignette 485 button and slider stations using a multi-drop serial data bus for recording and recall of lighting snapshots and zone control. The Gateway has four separate buses, each accommodating up to 16 devices (button or slider modules). This device comes in a variety of configurations with or without buttons, auxiliary contact closures, DMX In and Thru/Out and Ethernet connectivity.

This version, the Pathway model 700-5492 is a Vignette Gateway with four buses, each capable of powering 64 Vignette inserts. This version also features DMX and/or sACN capture and playback along with eight contact closures for A/V and third-party control and two integrated DMX512 In and Out/Thru ports that can crossfade on priority changes. Needing zero config for out of the box operation, the 700-5492 has a Record Enable button feature which allows for Press-and-Hold to record a snapshot on any button when used with Vignette.

NOTE: Choreo Vignette Gateway - Required on networks using RS485 Master Inserts.

Pathway 700-5492 Vignette 485 Features:

  • Power and network connectivity for Vignette slider and button modules, with optional DMX512 ports and Contact Closures
  • Configure up to four groupings of presets allows one Gateway to achieve asynchronous fades across four rooms
  • Out of the box DMX512 Snapshot record and playback for multiple rooms
  • Allows using legacy multi-drop wiring where PoE home-run is not feasible
  • Use third-party buttons to trigger snapshot replay
  • Use Pathscape software to configure sACN output universes, sACN priorities, crossfades timing and the function of the two optional DMX512 ports.
  • DMX512 outputs will crossfade between presets and incoming source when present. No sudden blackouts.

Pathway 700-5492 Vignette 485 Specifications:

  • Models 700-5491 and 700-5492 have integrated DMX512 In and Out/Thru ports that can crossfade on priority changes
  • All models can use Pathport Gateways to record and playback up to four universes of DMX512
  • Class 2 (24v DC RS485 over Cat5 or six-wire cable)
  • Compression fit and IDC terminal connections for DMX512 connections and station buses
  • 3.6” wide and 4.5”, 6.25” and 8” long depending on model
  • Gateway requires 10W at 24VDC plus 1W per insert on the 4-port station bus network
  • Operating Conditions: 32°F-105°F (0°C to 40°C ); 10-90% relative humidity, non-condensing
  • Standards Compliance:
    • ANSI E1.11 DMX512-A
    • ANSI E1.31 streaming ACN
    • IEEE 802. Ethernet
    • RoHS 2002/95/EC
