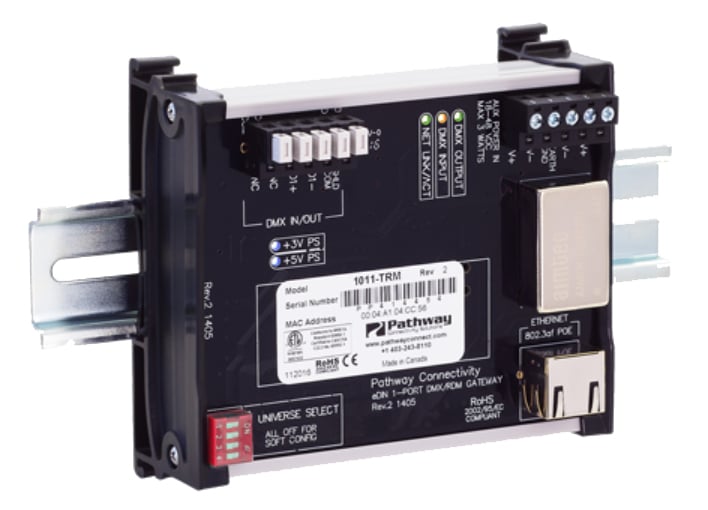

Pathway Connectivity 1011-TRM
Single Port DIN-Mountable Pathport Gateway with Terminal Block Connectors

OUR PART #:  P1011

The Pathport 1011-TRM 1-Port from Pathway Connectivity is a compact gateway for encoding, routing and decoding DMX512 data over a standard Ethernet network.
Learn More
Our Price: $436.99
List Price: $455.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity 1011-TRM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Pathport 1011-TRM 1-Port from Pathway Connectivity is a compact gateway for encoding, routing and decoding DMX512 data over a standard Ethernet network. In addition to DMX, the Pathport 1011-TRM supports RDM discovery and configuration data transport. DIN-rail mountable for fast installation in existing cabinets, or also available as part of a complete ETL-listed assembly.

Pathway 1011-TRM Includes:

  • DIN tray (housing) with end caps
  • 12” (300mm) x 35mm DIN rail
  • Installation/Operations manual

Pathway 1011-TRM Features:

  • One DMX512 port—user configurable as inputs or outputs
  • E1.11 DMX512A and E1.20 Remote Device Management (RDM) compliant
  • LED indicators for port direction, power, Ethernet link activity and identify
  • Operates on 802.3af  Power-over-Ethernet or on an 18-48V wide-range DC input
  • Fully compatible with all Pathport gateways and eDIN interfaces
  • Configuration is set using freely available Pathport Manager
  • Soft patch allows mix-and-match of different protocols
  • Route DMX according to universe or channel-by-channel
  • Multiple sources may be merged and/or prioritized
  • Fully customize your DMX output universes
  • Option to hard-patch port to Universe 1, 2, 3, or 4

Pathway 1011-TRM Specifications:

  • Class 1 PoE powered device
  • Auxiliary input voltage 18-48VDC
  • 4W power consumption
  • 60V protection on each port
  • 10Mb TCP/IP connection
  • Operating conditions: -10° to 50°C (14° to 122°F), 5%-95% relative humidity, non-condensing
  • Physical:
    • 0.40 lbs (0.180kg)
    • 3.6”W x 4.5”L x 1.5”H  (91mm x 115mm x38mm
  • Protocol Support:
    • Art-Net
    • E1.31 streaming ACN (sACN)
    • Pathport Protocol
    • Strand Shownet
    • ETC Net2 (output only)

  • Compliance:
    • ANSI E1.11 DMX512-A(2008)/USITT DMX512(1990)
    • ANSI E1.20 RDM(2010) - Remote Device Management
    • CE/FCC
    • RoHS 2002/95/EC
    • Class 2 Low Voltage
