Product Overview

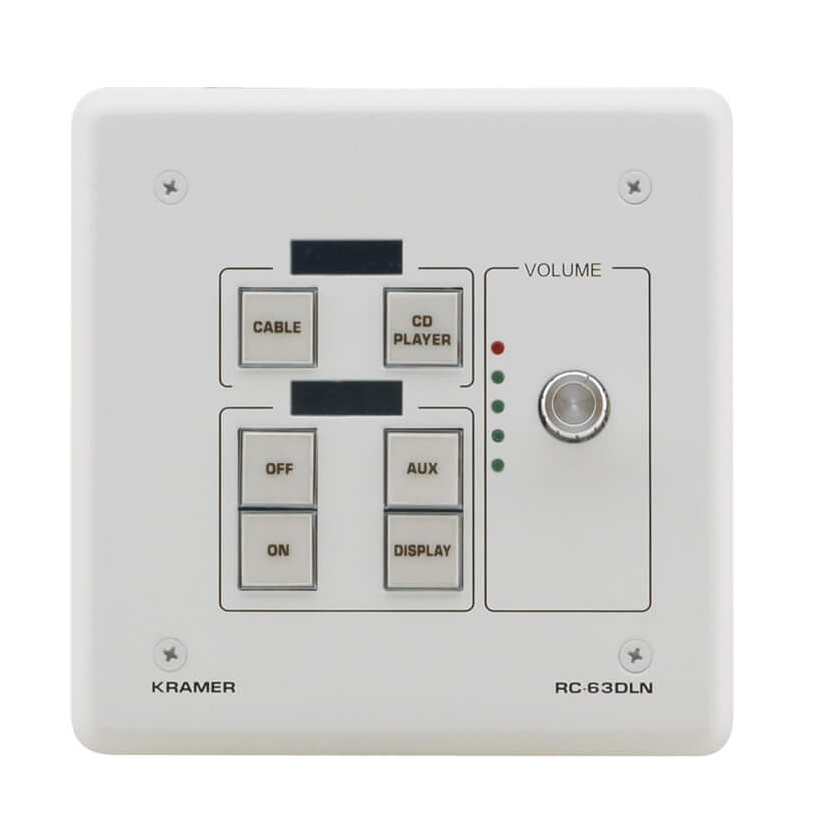

The RC-63DLN from Kramer is a 6-button control keypad with knob and LCD displays. This 2 Gang wall plate is connected over KNET™ to master room controller and auxiliary keypads for remote keypad control, so it can serve either as a standalone room controller or part of a multi-unit KNET™ system. It features 6 front panel buttons designed in two groups; one group of 2 buttons, and another group of 4 buttons. Each group can be programmed according to the user's requirements. The RC-63DLN also has two LCD labels, letting you program the required group label, as well as rolling text on the display. The RC-63DLN is ideal for classrooms and meeting rooms, for convenient control of their multimedia devices and other room facilities such as screens and shades.
Includes
- A configurable digital volume control adjustment knob with five LEDs
- Two relays for the simplified and centralized control of room functions (such as lighting, closing blinds, screen settings)
- An IR output, a bidirectional RS-232 port, and two K-NET ports
- An IR-learner for the customized control of external sources, memorizing the IR commands from different remote transmitters
- A USB port is included for programming the RC-63DLN via a computer.
Features
- Back Lit & Label Capable Buttons — 6 RGB–color, tactile feedback, backlit buttons. Buttons are grouped in 2 groups, 4 buttons in‘SOURCES’ group, and 2 buttons in ‘DISPLAY’ group.
- Custom Labeled, Removable Button Caps.
- Volume Control Knob with LEDs — Bi–directional rotary dialed digital knob for volume control, with 5 LED bar for visual volume level feedback.
- 2 K–NET™ Connectors — Connects to master room controller, and auxiliary keypads for remote keypad control.
- K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control communication information.
- RS–232 Control Port — Controls a device via serial control protocols.
- IR Emitter Control Port — Controls a device via IR control protocols.
- Relay Control Port — Controls a device via relay contact closure.
- IR Sensor Port — Learns commands from IR remotes.
- Program Control — Program configuration with Kramer K–Config software.
- Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.
- Mini USB Port — To upload configuration files, set the K–NET™ID number, and power the device during configuration.
- Mounting — In–wall, in standard 2 gang EU, UK, and US wall junction boxes.
- Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.
Specifications
- Ports: 1 RS–232 on terminal block connectors, 2 K–NET on terminal block connectors, 1 mini USB for programming
- Output: 2 Relays on terminal block connectors (36V AC or DC,2A, 60V AC maximum on non–inductive load), 1 IR emitter on terminal block connectors
- Power Consumption: 12V DC, 100mA
- Fuse: 500mA, FSMD 2920
- Adapter: 12V, 500mA
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: –40° to 158°F (–40° to +70°C)
- Humidity: 10% to 90%, RHL non–condensing
- Included Accessories: Power supply, label set, screwdriver
- Options: RK–121WP 19" rack adapter
- Product Dimension (W x D x H): 4.50" x 0.98" x 4.50" (11.43cmx 2.50cm x 11.43cm)
- Product Weight: 0.2lbs (0.1kg) approx
- Shipping Dimension (W x D x H): 9.13" x 5.35" x 3.94" (23.20cmx 13.60cm x 10.00cm)
- Shipping Weight: 0.9lbs (0.4kg) approx
