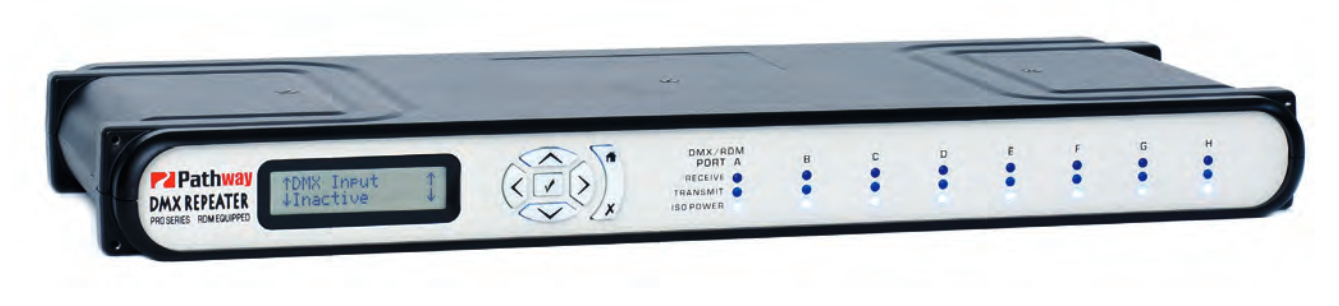

Pathway Connectivity DMX Repeater Pro 9118
8 Way - Front RJ45 Ethercon - Fully Isolated
OUR PART #: P9118
NOTE : Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
Similar Products
-
City Theatrical
SHoW Baby 6
$306.00 -
City Theatrical
SHoW Baby 6 Three Pin
$306.00 -
Elation Pro Lighting
Opto Branch 4
$240.00 -
Elation Pro Lighting
DMX-Branch / 4
$200.00 -
Enttec
70575
$133.00 -
Elation Pro Lighting
Opto Branch 8™
$320.00 -
Leviton
DMXSM-H18
$479.85 -
Blizzard Lighting
PIPELINE
$199.99 -
Blizzard Lighting
LightCaster W-DMX
$299.99 -
Enttec
70572
$133.00 -
ADJ
WIFLY EXR BATTERY
$179.99 -
ADJ
AIRSTREAM BRIDGE DMX
$399.99 -
Blizzard Lighting
LightCaster W-DMX Receiver
$249.99 -
ADJ
D6-BRANCH
$209.99 -
Blizzard Lighting
wICICLE
$79.99 -
Leviton
WCRMX-I1T
$993.98 -
Blizzard Lighting
Pipeline Twin
$199.99 -
Elation Pro Lighting
EWDMXR
$480.00 -
Leviton
DMXSM-H81
$616.95 -
Elation Pro Lighting
EWDMXT
$560.00 -
LumenRadio
CRMX Nova TX USB
$284.20 -
Doug Fleenor Designs
123 [RESTOCK ITEM]![123 [RESTOCK ITEM]](http://www.fullcompass.com/common/products/lg/180407.jpg)
$441.41 -
Pathway Connectivity
P4807
$761.26 -
Whirlwind
AES-SP1x2
$138.00 -
Elation Pro Lighting
EWDMX-SYSTEM
$1,040.00 -
Pathway Connectivity
6202
$768.66 -
Doug Fleenor Designs
125-5-FT
$750.87 -
ETC/Elec Theatre Controls
N34G-DIN
$995.00 -
Blizzard Lighting
SKYLINE
$299.99 -
Lightronics Inc.
WS-RXF
$524.25 -
Lightronics Inc.
IDW-104
$525.00 -
Martin Professional
RDM 5.5
$861.00 -
Martin Professional
DMX 5.3
$758.00 -
City Theatrical
5701M
$1,178.10 -
LumenRadio
LRINDRX1CRMX
$530.18 -
LumenRadio
LRINDTX1CRMX
$975.10 -
LumenRadio
CRMX Nova FX RDM
$1,399.44 -
Pathway Connectivity
P9016
$916.84 -
Interactive Technologies
RJ45 Splitter
$419.16 -
Elation Pro Lighting
OPTO-BRANCH 6 RJ45
$380.00 -
Doug Fleenor Designs
123
$492.48 -
Doug Fleenor Designs
125-5
$703.08 -
Doug Fleenor Designs
1211
$1,400.88 -
Doug Fleenor Designs
SW-1
$162.12 -
Lightronics Inc.
WSTXF
$599.25 -
Doug Fleenor Designs
121-FLEENOR
$382.20 -
Doug Fleenor Designs
Marconi TX
$684.45 -
Doug Fleenor Designs
221E
$1,154.25 -
Leprecon
90-08-0700
$895.00 -
Lightronics Inc.
IDP-104
$300.00
NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
The DMX Repeater Pro series from Pathway® Connectivity are intelligent opto-splitters that bring Ethernet-type features to plain DMX networks. This model (Part# 9118) is an 8 way, front RJ45 Ethercon, that is fully isolated. The DMX Repeater Pro's RDM (Remote Device Management) support allows the Repeater Pro to act as an RDM Controller, or as a proxy.
In venues where a console is moved frequently, Hub Mode allows the Repeater Pro to sense which port is receiving DMX, the automaticallyroute the signal to the remaining ports - eliminating the need for patch bays. The Repeater Pro also allows for easy prioritization between two consoles, or HTP-merge two sources with one source able to roam - ideal for incorporating remote focus units.
Pathway DMX Repeater Pro 9118 Includes:
- Installation/Operations manual
- Rackmount Ears
Pathway DMX Repeater Pro 9118 Features:
- Silent operation
- 8 outputs
- E1.20 RDM and E1.11 DMX512A compliant
- Three modes: RDM, Merge, and Hub
- RDM discovery and end device management from the frontpanel
- RDM can be disabled on a port-by-port basis toaccommodate older equipment
- Merge two controllers without any additional gear
- Automatically switch a console between locations bysimply unplugging and replugging the console
- Units running in different modes can be chainedtogether
- Fully configurable from the front display
- DMX output speed and signal loss behavior areuser-selectable, including hold forever
- Monitor incoming DMX signal levels in real time
- DMX Console sends a channel level to all ports, for anindependent DMX signal check on end devices
- Self-resetting over-voltage protection on all ports
- Racxk ears included
Pathway DMX Repeater Pro 9118 Specifications:
- 85-250VAC 50/60 Hz wide-ranging power input OperatingConditions: -10 to +50°C, 5-95% relative humidity, non-condensing
- 0.75A power consumption
- 2500V opto-isolation between all ports
- 250V fault protection per port
- Standards Compliance:
- USITT DMX512 –1990 \ ANSI E1.11 DMX512-A R2013
- E1.20 RDM R2010—Remote Device Management
- ETL
- CE
- RoHS 2002/95/EC
- Weights and Dimensions:
- 5.2 lb (2.4 kg)
- 17 x 6 x 1.7 in (432 x 150 x 40mm)
