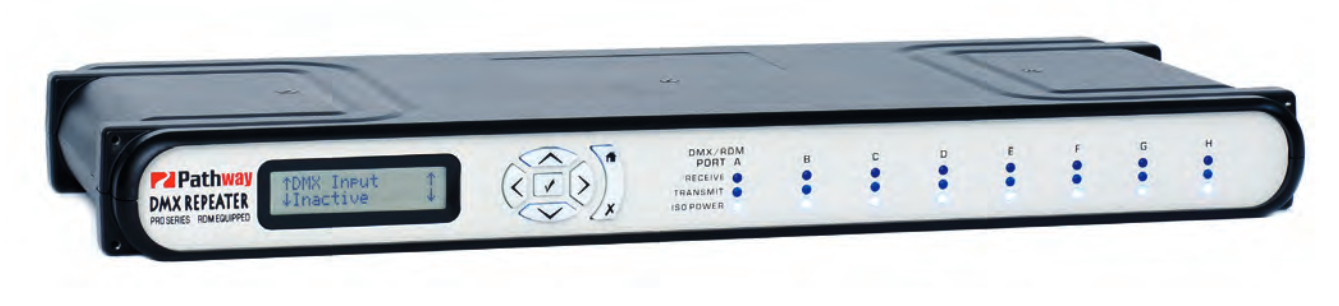

Pathway Connectivity DMX Repeater Pro 9114
8 Way - Rear 5-Pin XLR - Fully Isolated

OUR PART #:  P9114

Our Price: $1,337.70
List Price: $1,500.00
You save 11%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity DMX Repeater Pro 9114
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DMX Repeater Pro series from Pathway® Connectivity are intelligent opto-splitters that bring Ethernet-type features to plain DMX networks. This model (Part# 9114) is an 8 way, rear 5 pin XLR connectors, that is fully isolated. The DMX Repeater Pro's RDM (Remote Device Management) support allows the Repeater Pro to act as an RDM Controller, or as a proxy.

In venues where a console is moved frequently, Hub Mode allows the Repeater Pro to sense which port is receiving DMX, the automatically route the signal to the remaining ports - eliminating the need for patch bays. The Repeater Pro also allows for easy prioritization between two consoles, or HTP-merge two sources with one source able to roam - ideal for incorporating remote focus units.

Pathway DMX Repeater Pro 9114 Includes:

  • Installation/Operations manual
  • Rackmount Ears

Pathway DMX Repeater Pro 9114 Features:

  • Silent operation
  • 8 outputs
  • E1.20 RDM and E1.11 DMX512A compliant
  • Three modes: RDM, Merge, and Hub
  • RDM discovery and end device management from the front panel
  • RDM can be disabled on a port-by-port basis to accommodate older equipment
  • Merge two controllers without any additional gear
  • Automatically switch a console between locations by simply unplugging and replugging the console
  • Units running in different modes can be chained together
  • Fully configurable from the front display
  • DMX output speed and signal loss behavior are user-selectable, including hold forever
  • Monitor incoming DMX signal levels in real time
  • DMX Console sends a channel level to all ports, for an independent DMX signal check on end devices
  • Self-resetting over-voltage protection on all ports
  • Racxk ears included

Pathway DMX Repeater Pro 9114 Specifications:

  • 85-250VAC 50/60 Hz wide-ranging power input Operating Conditions:  14 to 122°F (-10 to +50°C), 5-95% relative humidity, non-condensing
  • 0.75A power consumption
  • 2500V opto-isolation between all ports
  • 250V fault protection per port
  • Standards Compliance:
    • USITT DMX512 –1990 \ ANSI E1.11 DMX512-A R2013
    • E1.20 RDM R2010—Remote Device Management
    • ETL
    • CE
    • RoHS 2002/95/EC
  • Weights and Dimensions:
    • 5.2 lb (2.4 kg)
    • 17 x 6 x 1.7 in (432 x 150 x 40mm)
