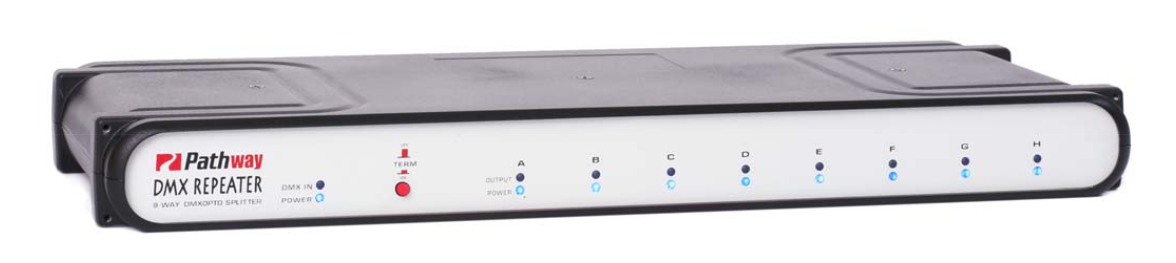

Pathway Connectivity DMX Repeater 9017
DMX Repeater with 8-Way Rear RJ45 Ethercon Connection

OUR PART #:  P9017

Pathway Connectivity offers the DMX Repeater Series, which provides multiple connector choices, including customized arrangements...
Learn More
Our Price: $916.84
List Price: $990.00
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity DMX Repeater 9017
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Pathway Connectivity offers the DMX Repeater Series, which provides multiple connector choices, including customized arrangements, to ensure easy installation in existing systems, and flexibility in new system design. This model (9017) is a DMX Repeater with 8 rear connectors intended for RJ45 Ethercon connectivity.

The Pathway DMX Repeater is an essential component of any DMX512 distribution system, permitting star wiring configurations while isolating and protecting connected equipment from harmful electrical faults, ground loops and common mode voltages.

Pathway DMX Repeater 9017 Features:

  • Silent operation
  • 8 outputs
  • Multiple connector options including RJ45
  • No fuses - Pathway uses self resetting data links
  • Field-serviceable - a spare transceiver and opto-coupler ships with every unit
  • Replacement transceivers and opto-couplers easily sourced from major electronic component suppliers
  • Passive DMX through
  • Termination switch2 500V Opto isolation between input and output signals
  • 250V fault protection on inputs and outputs
  • Two versions offered: connectors on the front or the back
  • Wide range power supply
  • DMX present indicator
  • E1.11 DMX512A compliant
  • Gold plated XLR contacts
  • Rugged cast aluminum housing
  • Custom connector arrangements on request
  • Ships with rack ears

Pathway DMX Repeater 9017 Specifications:

  • 85-250VAC 50/60 Hz wide-ranging power input
  • Operating Conditions: 14 to 122°F (-10 to +50°C), 5-95% relative humidity, non-condensing
  • 0.75A power consumption
  • 2500V opto-isolation between all ports
  • 250V fault protection per port
  • Compliance:
    • USITT DMX512 –1990 ANSI E1.11 DMX512-A R2013
    • ETL
    • CE
    • RoHS 2002/95/EC
  • Physical:
    • 5.2 lb (2.4 kg)
    • 17 x 6 x 1.7 in (432 x 150 x 40mm)
