Pathway Connectivity 700-5493
Vignette 485 Architectural Gateway with 16 Contact Closures

OUR PART #:  P700-5493

The Pathway Connectivty 700-5493 Vignette 485 Architectual Gateway allow you to snapshot four universes of E1.31 sACN or one universe of DMX512.
Learn More
Our Price: $624.26
List Price: $650.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity 700-5493
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

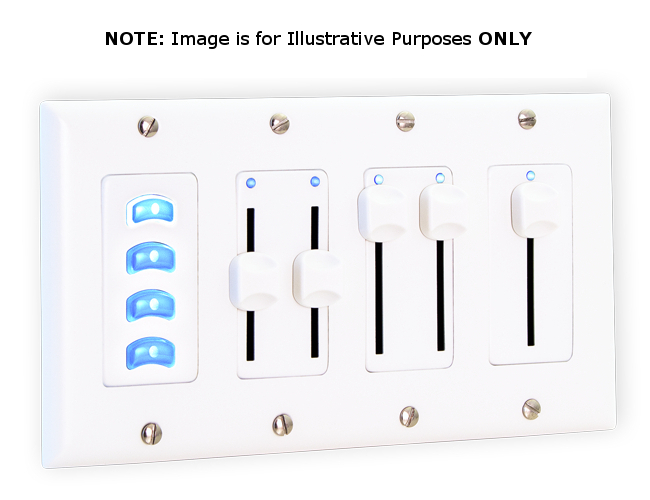

The Pathway Connectivty 700-5493 Vignette 485 Architectual Gateway allow you to snapshot four universes of E1.31 sACN or one universe of DMX512.

Buttons can be press-and-hold to record, and press to play back. Sliders can act as grand master for the Vignette's output, or proportionately control user-defined zones with minimum and maximum values for individual channels.

Playback and crossfade between snapshots, complex zones, single channels or non-dims of a very large network of station, using PoE or multidrop (RS485) wiring topology.

Pathway Connectivity P700-5493 Features:

  • Attractive Decorator-style design in white or black,compatible with Pathway Connectivity or third-party faceplates
  • Master/slave inserts available as single or doublesliders, or as two or four buttons
  • PoE variant works with the VIA PoE switches andPathport gateways
  • RS485 variant requires DIN-rail mounted VignetteArchitectural Gateway that includes an ethernet port for configuration, sACNsend/receive as well as DMX in/out. Each Gateway can support up to 64 modulesacross four separate daisy-chain buses
  • Group stations to mirror each other or workindependently
  • Works as a snapshot record and playback out of thebox. Advanced configuration using Pathscape on Mac OS or Windows PC
  • Buttons have multiple functions including snapshotreplay, non-dim zones, record enable and take control
  • Sliders can act as zone control or grand master

Pathway Connectivity P700-5493 Specifications:

  • Class 2 (PoE or 24V DC RS485 over Cat5 or 3-paircable)
  • 7.5 watts maximum power consumption per station
  • Operating conditions: 32°F-105°F (0°C to 40°C ),10-90% relative humidity, non-condensing
  • Cabling:
    • PoE: Standard Cat5/5e/6 Ethernet, 330 ft (100 m) max
    • RS485: Cat5/5e/6 cable, 500 ft (150 m) max; Belden 9773 or equivalent, 1000 ft (300 m) max
  • Weight: 0.5 lbs (0.225 kg) [per insert]
  • Dimensions (WxDxH): 1.75” x 1.6” x 4” (45 x 40 x 102mm) [Master]
