Pathway Connectivity 0700-5433 Vignette 485 1 Slider Primary Insert

OUR PART #: P700-5433 MFR #: PWWSI V485 S1 BL

Copied to clipboard

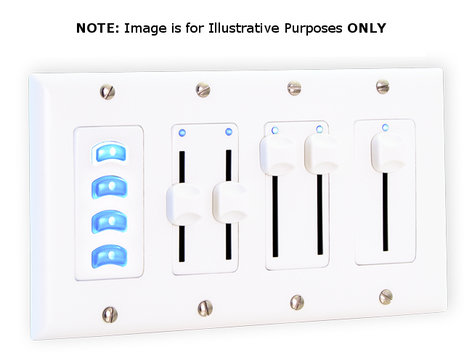

Pathway Connectivity 0700-5433 Vignette 485 1 Slider Primary Insert Image 1

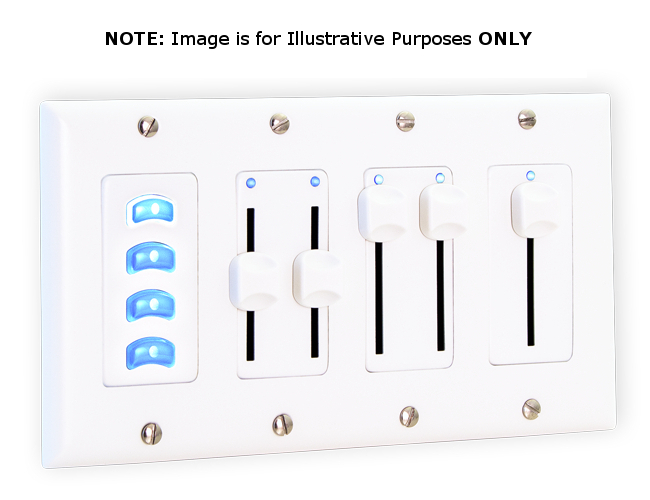

Pathway Connectivity 0700-5433 Vignette 485 1 Slider Primary Insert
Selected Model Price: $455.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Pathway Connectivty 700-5433 Vignette is a system of modular button and slider wall station inserts that allow you to snapshot four universes of E1.31 sACN or one universe of DMX512.

Buttons can be press-and-hold to record, and press to play back. Sliders can act as grand master for the Vignette's output, or proportionately control user-defined zones with minimum and maximum values for individual channels.

Playback and crossfade between snapshots, complex zones, single channels or non-dims of a very large network of station, using PoE or multidrop (RS485) wiring topology.

Pathway Connectivity P700-5433 Features:

  • Attractive Decorator-style design in white or black,compatible with Pathway Connectivity or third-party faceplates
  • Primary/secondary inserts available as single or doublesliders, or as two or four buttons
  • PoE variant works with the VIA PoE switches and Pathport gateways
  • RS485 variant requires DIN-rail mounted VignetteArchitectural Gateway that includes an ethernet port for configuration, sACNsend/receive as well as DMX in/out. Each Gateway can support up to 64 modules across four separate daisy-chain buses
  • Group stations to mirror each other or work independently
  • Works as a snapshot record and playback out of the box. Advanced configuration using Pathscape on Mac OS or Windows PC
  • Buttons have multiple functions including snapshot replay, non-dim zones, record enable and take control
  • Sliders can act as zone control or grand master

Pathway Connectivity P700-5433 Specifications:

  • Class 2 (PoE or 24V DC RS485 over Cat5 or 3-paircable)
  • 7.5 watts maximum power consumption per station
  • Operating conditions: 32°F-105°F (0°C to 40°C ),10-90% relative humidity, non-condensing
  • Cabling:
    • PoE: Standard Cat5/5e/6 Ethernet, 330 ft (100 m) max
    • RS485: Cat5/5e/6 cable, 500 ft (150 m) max; Belden 9773 or equivalent, 1000 ft (300 m) max
  • Weight: 0.5 lbs (0.225 kg) [per insert]
  • Dimensions (WxDxH): 1.75” x 1.6” x 4” (45 x 40 x 102mm) [Primary]

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
