Pathway Connectivity 700-5431
Vignette 485- Two Button Master Insert

OUR PART #:  P700-5431

Selected Model Price: $432.18
List Price: $450.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity 700-5431
Select model: (shipping times are approximate)
Qty:

Similar Products

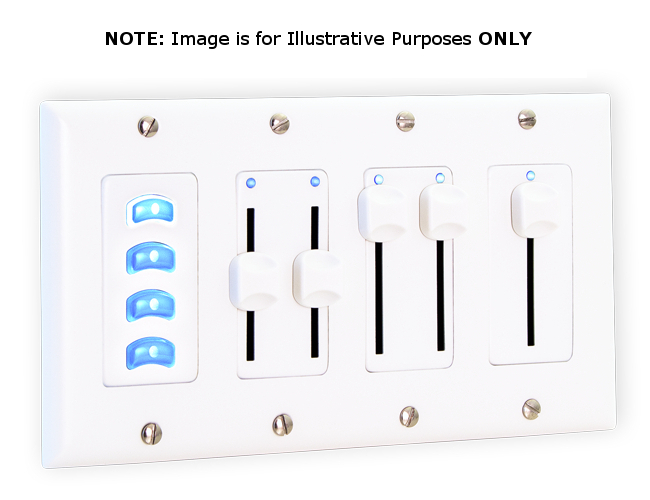

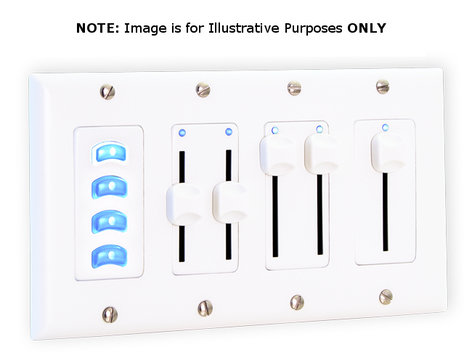

The Pathway Connectivty 700-5431 Vignette is a system of modular button and slider wall station inserts that allow you to snapshot four universes of E1.31 sACN or one universe of DMX512.

Buttons can be press-and-hold to record, and press to play back. Sliders can act as grand master for the Vignette's output, or proportionately control user-defined zones with minimum and maximum values for individual channels.

Playback and crossfade between snapshots, complex zones, single channels or non-dims of a very large network of station, using PoE or multidrop (RS485) wiring topology.

Pathway Connectivity P700-5431 Features:

  • Attractive Decorator-style design in white or black, compatible with Pathway Connectivity or third-party faceplates
  • Master/slave inserts available as single or double sliders, or as two or four buttons
  • PoE variant works with the VIA PoE switches and Pathport gateways
  • RS485 variant requires DIN-rail mounted Vignette Architectural Gateway that includes an ethernet port for configuration, sACN send/receive as well as DMX in/out. Each Gateway can support up to 64 modules across four separate daisy-chain buses
  • Group stations to mirror each other or work independently
  • Works as a snapshot record and playback out of the box. Advanced configuration using Pathscape on Mac OS or Windows PC
  • Buttons have multiple functions including snapshot replay, non-dim zones, record enable and take control
  • Sliders can act as zone control or grand master

Pathway Connectivity P700-5431 Specifications:

  • Class 2 (PoE or 24V DC RS485 over Cat5 or 3-pair cable)
  • 7.5 watts maximum power consumption per station
  • Operating conditions: 32°F-105°F (0°C to 40°C ), 10-90% relative humidity, non-condensing
  • Cabling:
    • PoE: Standard Cat5/5e/6 Ethernet, 330 ft (100 m) max
    • RS485: Cat5/5e/6 cable, 500 ft (150 m) max; Belden 9773 or equivalent, 1000 ft (300 m) max
  • Weight: 0.5 lbs (0.225 kg) [per insert]
  • Dimensions (WxDxH): 1.75” x 1.6” x 4” (45 x 40 x 102mm) [Master]
