Pathway Connectivity 0700-5334 NSB 485 2 Slider Primary Insert

OUR PART #: P700-5334 MFR #: PWWSI N485 S2 BL

Copied to clipboard

The Pathway Connectivty 700-5334 NSB™ 485 is a two slider wall station insert that is fully compatible with Cognito²™ and Choreo™ lighting control platforms. ...Read more

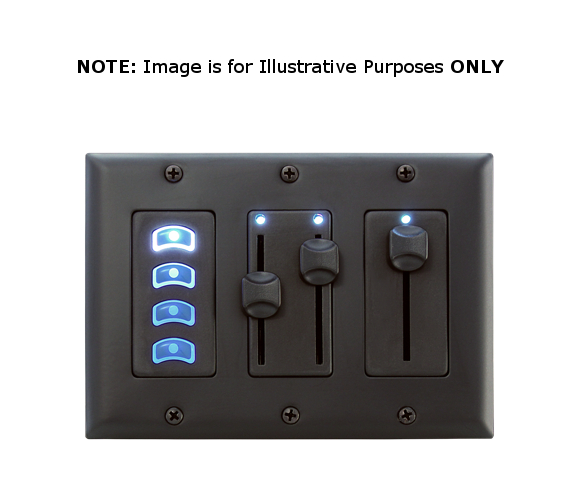

Pathway Connectivity 0700-5334 NSB 485 2 Slider Primary Insert Image 1
Pathway Connectivity 0700-5334 NSB 485 2 Slider Primary Insert
Selected Model Price: $455.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Pathway Connectivty 700-5334 NSB™ 485 is a two slider wall station insert that is fully compatible with Cognito²™ and Choreo™ lighting control platforms.

Pathway Connectivty P700-5334 Features:

  • Attractive Decorator-style design in white or black, compatible with Pathway Connectivity or third-party faceplates
  • Primary/secondary inserts available as single or double sliders, or as two or four buttons
  • PoE variant works with the VIA PoE switches and Pathport gateways
  • RS485 variant requires eDIN NSB Architectural Gateway that includes an ethernet port for configuration and communication with the controller. Each Gateway can support up to 64 modules divided among four separate multi-drop buses
  • Associate buttons and sliders with Memories recorded on a Cognito² or Choreo controller on the same network
  • Button behavior mimics Memory's recorded button actions
  • Discovery and configuration from within Cognito² or Choreo
  • Works with Room Combine to control lights in its own space

Pathway Connectivty P700-5334 Specifications:

  • PoE: Class 2 (PoE of 24V DC RS485 over Cat5 or 3-pair cable)
  • 7.5 watts maximum power consumption per station
  • Operating Conditions: 32°F-105°F (0°C to 40°C ), 10-90% relative humidity, non-condensing
  • Cabling:
    • PoE: Standard Cat5/5e/6 ethernet, 330 ft (100 m) max
    • RS485: Cat5/5e/6 cable, 500 ft (150 m) max, or retro fit onto existing 3-pair Belden 9773 or equivalent, 1000 ft (300 m) max.
  • Weight: 0.5 lbs (0.225 kg) [per insert]
  • Dimensions (WxDxH): 1.75” x 1.6” x 4” (45 x 40 x 102mm)

NOTE:

Product is WHITE or BLACK
