DB Technologies DVX P215
2-Way Passive Speaker

OUR PART #:  DVX-P215

DB Technologies' DVX P215 is a powerful 2-way passive speaker.
Learn More
Our Price: $1,799.00
List Price: $2,200.00
You save 18%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

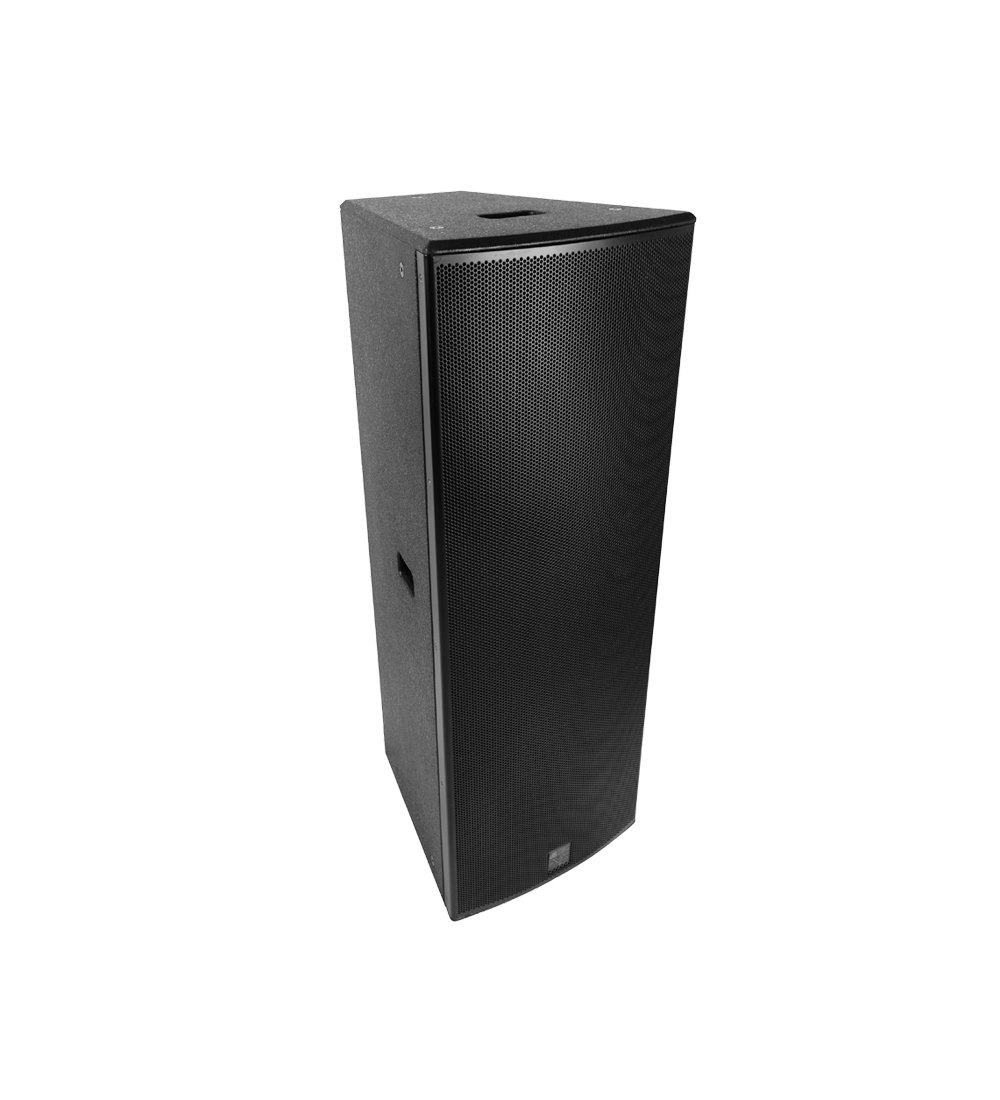

DB Technologies DVX P215
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DB Technologies' DVX P215 is a powerful 2-way passive speaker. Its plywood cabinet reproduces speech contents, background as well as any other kind of music in medium-to-large sized rooms, and delivers more prominence to the lowest part of frequency range. This is thanks to the 15” woofer pair, the increased volume compared with the single 15” woofer model DVX P15 and the acoustic design of the enclosure.

It's the right choice for use as part of a FOH system, and can act both as a full-range or bi-amped speaker.

It features the aforementioned high-quality 15" woofers (3" voice coil) and 1.4" neodymium compression driver (2.5" voice coil) with titanium dome on a 90° x 40° rotatable CD horn, and has a premium crossover that contains precision filters with 12 dB/octave slope for low-pass part and 18dB/octave for high-pass. Additionally, there's a self-resetting thermal protection circuit on the high-frequency driver to prevent protracted overloading. All these features ensure maximum speech intelligibility and deliver assertive bass response with no need for an added subwoofer.

It comes with (4) handles—one per side—for easy transport as well as (11) M10 thread rigging points, and adjustable foot in the bottom. Its rotatable CD-horn allows the user to maintain the same high-frequency coverage angle whether used vertically or horizontally.

DB Technologies DVX P215 Specifications:

General

  • Speaker Type: 2-Way Passive Speaker

Acoustical Data

  • RMS Power: 1000 W/RMS
  • Impedance: 4 Ohms
  • Max SPL: 136 dB
  • Frequency Response [+/- 6dB]: 70 - 20.000 Hz
  • HF: 1.4"
  • Voice Coil HF: 2.5"
  • Directivity: 90° x 40°
  • Horn: CD Horn Aluminium
  • Crossover Frequency (passive): 1300 Hz
  • LF: 2x 15"
  • Voice Coil LF: 3"

Mechanics

  • Housing: Multiplex plywood
  • Rigging Points: 11x M10
  • Dimensions (W x H x D): 17.58" x 47.32" x 17.7" (446.6 x 1202 x 500mm)
  • Weight: 103.6 lbs (47 kg)
