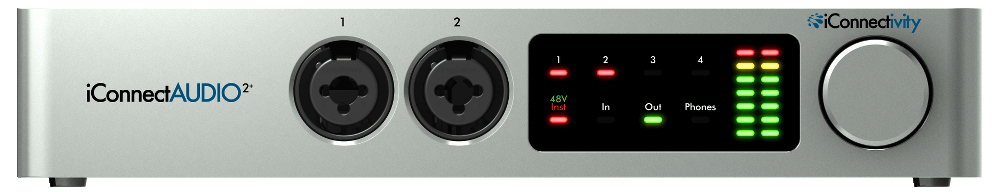

iConnectivity IC-AUDIO2+ IConnectAUDIO2+ Hybrid Multi-Host USB Audio And MIDI Interface Image 1
iConnectivity IC-AUDIO2+ IConnectAUDIO2+ Hybrid Multi-Host USB Audio And MIDI Interface Image 2
iConnectivity IC-AUDIO2+ IConnectAUDIO2+ Hybrid Multi-Host USB Audio And MIDI Interface
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The iConnectivity iConnectAUDIO2+ is a hybrid multi-host USB audio + MIDI interface. iConnectAUDIO2+ adapts to the way you create music. It provides more versatility, more power to create, and more flexible workflow. iConnectAUDIO2+ adapts to the way you create music. Bring it with you to the stage or club, record with it live, use it in your studio. Support for two computer devices gives you more power to create. More creative workflow. Easier collaboration.

iConnectivity iConnectAUDIO2+ Includes:

  • 1 x iConnectAUDIO2+ Hybrid Multi-Host Audio &MIDI Interface with passThru™ technology
  • 1 x USB cable (for Mac / PC connectivity)

iConnectivity iConnectAUDIO2+ Features:

  • Multi-host Device ports – use with one computerdevice plus an iOS device at the same time, or up to two computer devices(Mac/PC) at the same time
  • Audio passThru™ routes audio digitally betweencomputer devices
  • 2 XLR ¼” TRS combo analog inputs, each withindividual +48V phantom power toggle and impedance switching
  • 4 ¼” TRS balanced analog outputs
  • ¼” Headphone output with independent mix
  • 1 X 1 MIDI DIN in/out
  • iConfig software (Mac/PC/iOS) makes it simple to setup filtering/routing/mixing/merging scenes – which are also stored in flashmemory on the device
  • High-resolution audio - up to 24-bit/96kHz AD/DAconversion
  • USB audio and MIDI Class-Compliant
  • Capacitive touch display and control surface
  • Bus powered

iConnectivity iConnectAUDIO2+ Specifications:

  • Microphone Inputs
    • Gain: 0- 60 dB (1 dB steps)
    • Frequency Response: 20 Hz - 20kHz
    • SNR: 104dB (1kHz, 1 Vrms, BW: 22Hz-22kHz, A-weighting, Lowest Gain)
    • THD+N: -90 dB (1kHz, 1 Vrms, BW: 22Hz-22kHz, A-weighting, Lowest Gain)
  • Line Outputs
    • Maximum Output Level: 12 dBu, 9.8 dBV, 3.1 Vrms
    • Frequency Response (flatness): 20 Hz - 20kHz (+/-0.1dB)
    • SNR: +98 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
    • THD+N: -98 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • Line / Instrument Inputs (Balanced)
    • Attenuator: 20 dB (fixed)
    • Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
    • SNR: +104 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
    • THD+N: -88 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
    • Maximum input level: 8 Vrms, 20 dBu, 18 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)
  • Headphone
    • Frequency Response (flatness): 20 Hz - 20kHz (+/-0.1dB)
    • SNR: +100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
    • THD+N: -99 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
    • Power output into 30 Ohms per channel: 34 mW per channel
  • Line / Instrument Inputs (Single Ended Input)'
    • Attenuator: 20 dB (fixed)
    • Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
    • SNR: +104 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
    • THD+N: -88 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
    • Maximum input level: 8 Vrms, 20 dBu, 18 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)
  • Digital Performance
    • 24-bit resolution
    • A-D Dynamic Range:102dB (fs= 48kHz, 20kHz - 20kHz, A-Weighting, 24bit)
    • D-A Dynamic Range:104dB (fs= 44.1kHz, 20kHz - 20kHz, A-Weighting, 24bit)
    • Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
