The Light Source MQSM
Aluminum Mega-Quick Pipe Splice

OUR PART #:  MQSM

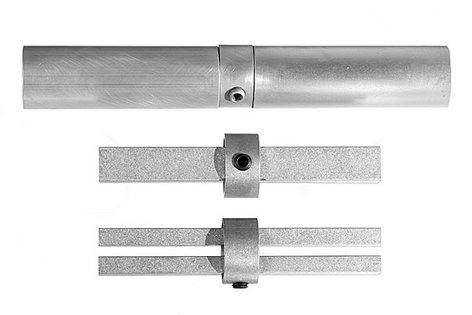

The Light Source MQSM quickly joins two pipes in line together without drilling or threading for permanent or temporary installations.
Learn More
Our Price: $11.70
List Price: $12.50
You save 6%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

The Light Source MQSM
Qty:
Similar Products

The Light Source MQSM quickly joins two pipes in line together without drilling or threading for permanent or temporary installations. The Mega-Quick Pipe Splice is the same outside diameter as the pipe for a nice flush look and feel. Install by loosening the set screw one half turn with a quarter inch hex key to open the splice. Align the set screw so that it will be on the side of the pipe joint. (This will give the maximum strength to the joint.) Pinch the bars together at one end, and insert the splice into the first pipe. Then pinch the other ends of splice together and insert the splice into the second pipe. Slide the pipes tightly toward the splice and tighten the set screw securely with the one quarter inch hex key. Bolts should be tightened to about 30 foot pounds.

The Light Source MQSM Specifications:

  • Safe Vertical Working Load: 600lbs Horizontal, Not rated for vertical use
  • Hardware: 1/2-13 socket set screw
  • Dimensions: 8.25" in total length (Piece in middle is 1" wide)
  • Weight: 15 oz.

To be the first to review this item, click here.
