ADJ AV3 4x3
12 Panel 4x3 AV3 Video Wall Package

OUR PART #:  AV3-4X3

The ADJ AV3 4x3 is a video wall package that includes 12 AV3 panels, four AV3 rigging bars, 11 CAT303 cables...
Learn More

Call for price! Not available online.
List Price: $20,899.99

Similar Products

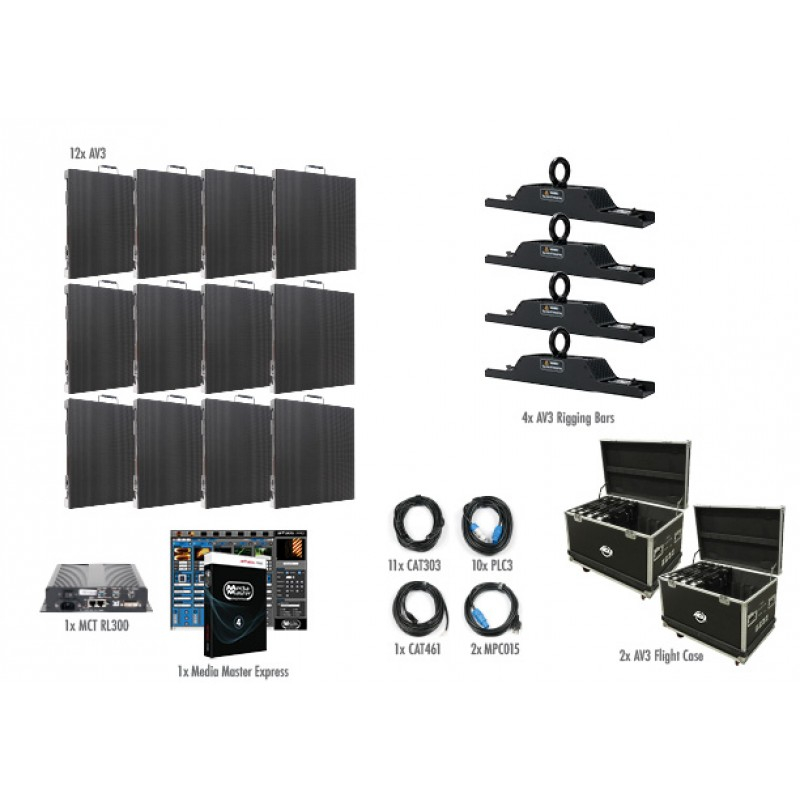

The ADJ AV3 4x3 is a video wall package that includes 12 AV3 panels, four AV3 rigging bars, 11 CAT303 cables, ten PLC3 cables, one CAT461 cable, two MPC015 cables, one MCT RL300 distribution box, two AV3 flight cases, and one Media Master Express.

ADJ AV3 4x3 Specifications:

  • Pixel Pitch: 0.25” (3.91mm)
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 128x128; 65536 per square meter
  • Size :19.75” x 19.75” x 4” (500 x 500 x 100mm)
  • Module Quantity: 2
  • Weight: 20 lbs. (9kg.)
  • Surface Flatness: Gaps<0.5mm
  • Oprical Ratings:
    • Brightness: 1000 NITS
    • View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)
    • Gray Scale / Display Color: 14-bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14-bit
  • Power Supply:
    • Operation Power: 100~240V 50-60Hz
    • Max. Power Consumption: 170W/per panel
    • Ave. Power Consumption: 70W/per panel
    • Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
  • Control System:
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/16
    • Refresh Rate: 1920Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <100m or Fiber Optic>120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet
  • Environmental:
    • Operating Temp / Humidity: -4° + 104° F (-20° + 40°C) / 10-90% (No Condensation)
    • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: <0.02%
    • Listings:  ETL, CE, FCC Class A
  • Optional Accessories:
    • AV3FC (AV3095): Flight Case - fits 8 AV6 Video Walls
    • AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3 Video Panels
    • AV3FWA (AV3111): Rear Support Bracket
    • Novastar VX4S: Video Processor
    • Novastar MCTRL-300: Video Processor
    • Media Master Express 4: Video Software
    • GrandVJ 2.0: Video Software
  • Cables:
    • Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)
    • MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)
    • VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)
    • NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)
    • NEUTRIK powerCON Link Cables
    • NEUTRIK powerCON Main Power Cables
  • ETL Approved
