Product Overview

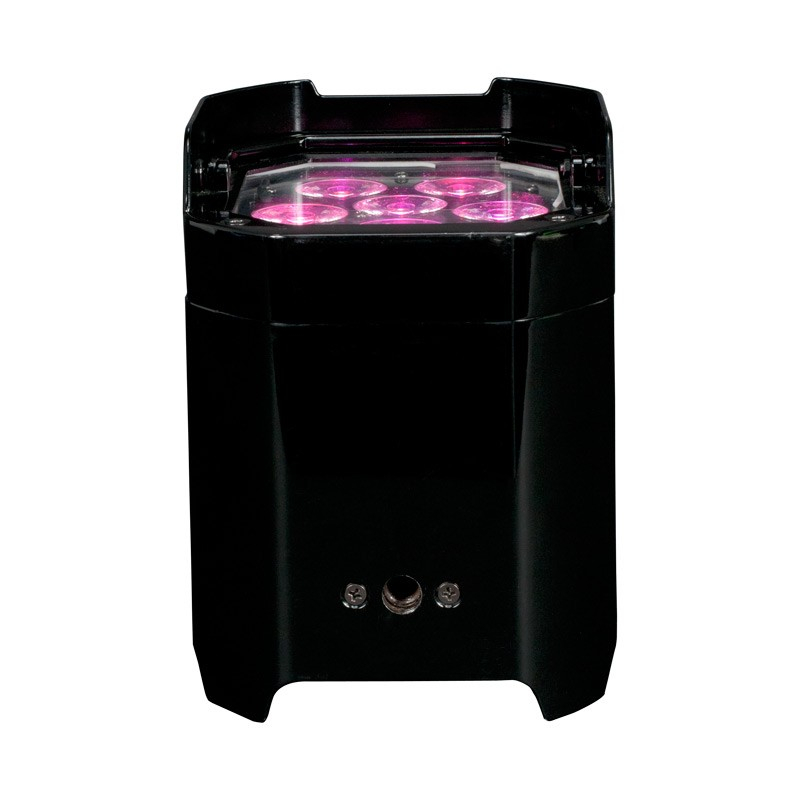

The ADJ Element QA is a battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor use. It’s powered by six 4W RGBA (4-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed.
ADJ Element QA Features:
- Built-in kickstand to angle figure while it’s on the floor
- 4-button DMX menu display on rear panel
- Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
- 64 built-in Color Macros
- Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing
- LED pulse and strobe effect (0.2Hz-11Hz)
- Flicker Free Operation
- Electronic Dimming: 0 - 100% with 5 dimming curves
- Run all night – No duty cycle
- Energy Saving Mode
ADJ Element QA Specifications:
- Optical:
- 6 x 4-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
- Life expectancy: rated at 50,000 hrs.
- LUX: 901 @ 2M; 213 @ 4M
- Beam angle: 40°
- PWM frequency:1000Hz
- Connection:
- DMX: 3-pin DMX In/Out
- IEC In/Out to power battery or daisy chain fixture
- Control:
- Control protocol: WiFLY EXR DMX, 3-pin DMX
- 5 DMX Channel modes: 4, 5, 6, 9 or 10
- Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
- 5 Operational modes: RGBA Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled
- Battery:
- Battery Type: fixed lithium battery
- Battery Energy: 73.26WH (Watt Hours)
- Battery Weight: 0.42 kg.
- Battery Voltage: 11.1V
- Battery Capacity: 6.6AH
- Total Lithium Ion Cells: 9 pieces
- Battery Wrap Material: PVC sleeving + highland barley paper
- Battery Charge Time: 4.5 Hours (With POWER switch On)
- Battery Life: 11 hours (single color)
- Electrical:
- Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Dimensions (LxWxH): 5.5” x 5.5” x 7.5” (140 x 140 x140mm)
- Weight: 6.5 lbs. (2.9kg.)
- Certifications:
- CE Approved
- IP20 Indoor rated
