ADJ AV4IP 4.81mm Pitch IP Rated LED Video Wall Panel

OUR PART #: AV4-IP MFR #: AV4127

Copied to clipboard

The AV4IP from ADJ is a high resolution, flexible video panel with a brightness of 4000 NITS. ...Read more

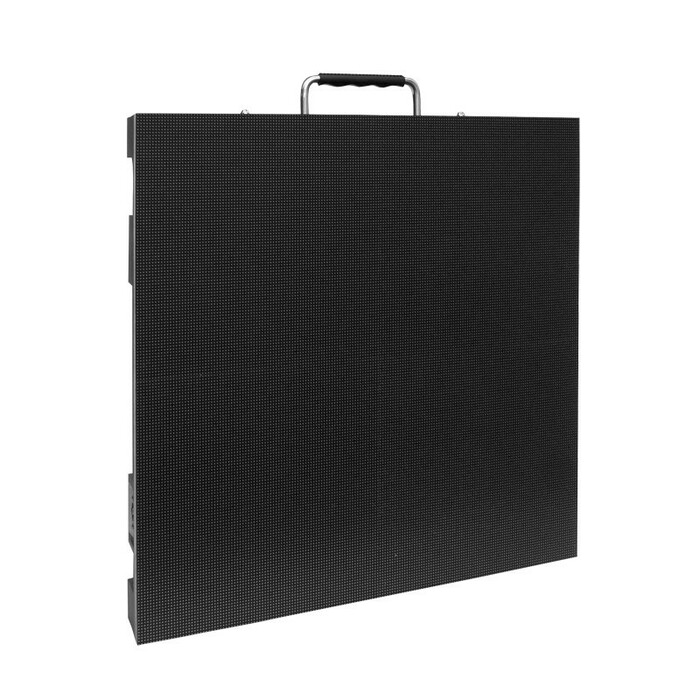

ADJ AV4IP 4.81mm Pitch IP Rated LED Video Wall Panel Image 1
ADJ AV4IP 4.81mm Pitch IP Rated LED Video Wall Panel Image 2
ADJ AV4IP 4.81mm Pitch IP Rated LED Video Wall Panel Image 3
yYFjQP_6030
2 Videos
ADJ AV4IP 4.81mm Pitch IP Rated LED Video Wall Panel
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AV4IP from ADJ is a high resolution, flexible video panel with a brightness of 4000 NITS. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. This panel is IP65 outdoor rated and there are 4 LED modules per panel - this allows for easy serviceability. The AV4IP includes iTrue 1 powerCon In/Out and IP65 etherCON In/Out water proof connections and this panel also features a Novastar receiving card. The AV4IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

ADJ AV4IP Features:

  • 4.81mm pixel pitch high resolution video panel
  • Outdoor rated: (IP65 front, IP54 back)
  • SMD1921 3-IN-1 RGB LEDs
  • NITS: 4,000
  • Pixel Count: 104x104
  • Quick release power supply / receiving card module
  • True1 powerCON In & Out
  • IP65 etherCON In & Out
  • Novastar receiving card
  • Dimensions: 19.7" x 19.7" (500x500mm) panel size
  • Flight Case: AV3FC (AV3095): Flight Case - fits 8AV4IP Panels
  • Rigging Bar: AV3RBI

ADJ AV4IP Specifications:

  • Specifications:
    • Pixel Pitch: 4.81mm (0.19”)
    • LED Configuration: 3-in-1 SMD1921 LED
    • Pixel Density: 104x104; 43264 (dot/m2)
    • Panel Size :19.75” x 19.75” x 4” (500 x 500 x 100mm)
    • Module Quantity: 2
    • Module Size: 250 x 500mm
    • Module Resolution: 52 x 104 pixels
    • Panel Weight: 20 lbs (9 kg)
  • Mechanical Ratings:
    • Surface Flatness: Gaps
  • Optical Ratings:
    • Brightness: 4000 NITS
    • View Angle: Horizontal 140°/Vertical 140°
    • Gray Scaler: 14-bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14-bit
  • Power Supply:
    • Input Voltage: 100~240V 50-60Hz
    • Max. Power Consumption: 180W/per panel
    • Ave. Power Consumption: 60W/per panel
    • Connections Power/Data: Power = True1 powerCON In/Out; Data = IP65 etherCON In/Out
  • Control System:
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/16
    • Refresh Rate: 1920Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable < 100m or Fiber Optic>120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet
  • Environmental:
    • Operating Temp: -14° + 122°F (-10° + 50°C)
    • Humidity: 10-90% (No Condensation)
    • Operating Life / MTBF: @ 50,000 Hours
    • Protection Level: IP65 Front and IP54 Back
    • Out of Control Rate:< 0.02%
    • Listings: cETL, CE, FCC Class A
  • Optional Accessories:
    • AV3FC (AV3095): Flight Case - fits 8 AV4IP
    • AV3RB1 (AV3070): Rigging Bar - Holds up to 15 AV4IP vertically
    • AV3FWA (AV3111): Rear Support Bracket
    • Novastar VX4S: Video Processor
    • Novastar MCTRL-300: Video Processor
    • Novastar NOVA PRO HD: Video Processor
    • Media Master Express 4: Video Software
    • GrandVJ 2.0: Video Software
  • Main Power Cables, IP65 (Blue Powercon to Edison):
    • 10ft. / 3.04M (TRU200)
    • 15ft. / 4.57M (TRU215)
    • 25ft. / 7.62M (TRU230)
    • 50ft. / 15.24M (TRU254)
    • 100ft. / 30.48M (TRU271)
  • Panel to Panel Power Link Cables, IP65 (Blue to White Powercon):
    • 1.64ft. / .50M (TRU064)
    • 3.28ft. / 1M (TRU113)
    • 4.92ft. / 1.5M (TRU126)
    • 9.84ft. / 3M (TRU139)
    • 13.12ft. / 4M (TRU152)
    • 22.96ft. / 7M (TRU165)
    • 49.21ft. / 15M (TRU178)
    • 98.42ft. / 30M (TRU191)
  • Main Data Cables, Bare RJ45 to Ethercon:
    • 10ft. / 3.04M (CAT701)
    • 15ft. / 4.57M (CAT715)
    • 25ft. / 7.62M (CAT729)
    • 50ft. / 15.24M (CAT743)
    • 100ft. / 30.48M (CAT757)
  • Panel to Panel Data Link Cables, IP65 (Ethercon to Ethercon):
    • 1.64ft. / .50M (CAT600)
    • 2ft. / .61M (CAT699)
    • 3ft. / .91M (CAT614)
    • 5ft. / 1.52M (CAT628)
    • 10ft. / 3.04M (CAT642)
    • 16ft. / 4.87M (CAT656)
    • 25ft. / 7.62M (CAT671)
    • 50ft. / 15.24M (CAT685)
