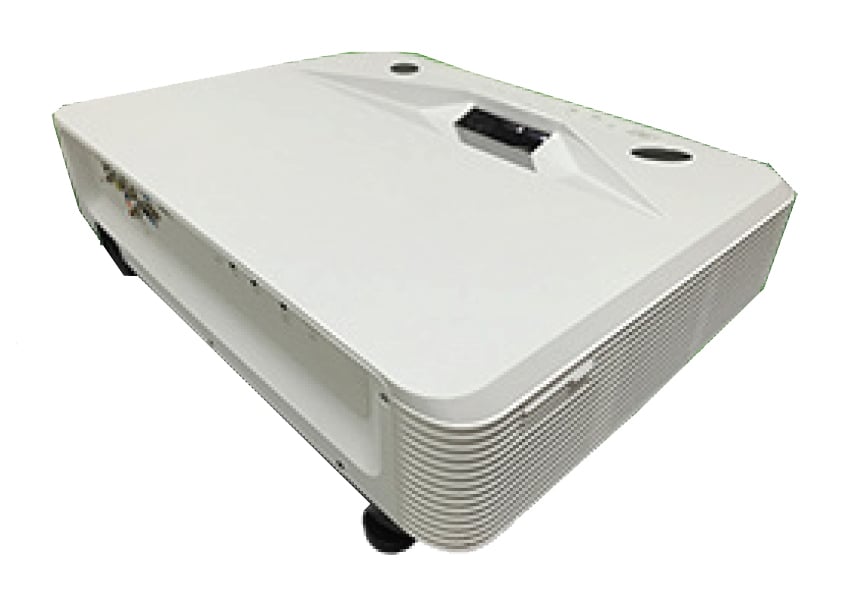

Vivitek DW763USTZ
3500 Lumen WXGA DLP Ultra Short Throw Laser Projector


NOTE : Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
Learn More

Call for price! Not available online.

Related Products

NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

When looking for the care-free operation of laser projector technology in an ultra-short-throw model - then Vivitek's DH763USTZ is the laser projector for your education needs.
Utilizing the next generation of advanced projection technology — laser, the DH763USTZ gives you an immersive big-screen experience, in short viewing distances. It delivers impressively vivid colors and a high brightness of 3,500 ANSI lumens. Built lamp-free, the DH763USTZ provides a low cost of ownership, with minimal maintenance, and emits a stable, high-quality projection for up to 20,000 hours; an unbeatable return on investment.

Vivitek DW763USTZ Includes:

  • Remote Control w/ Batteries
  • User Manual CD
  • Quick Start Guide
  • Warranty Card
  • VGA Cable
  • HDMI Cable
  • 10W Speaker

Vivitek DW763USTZ Features:

  • Laser Phosphor Light engine provides up to 20,000 hrs and a low cost of ownership and ease of operation
  • Quietest laser projector in its class at 28/31 dB
  • Ultra-short throw lens of 0.24:1 projects a large image size – up to 150” diagonal
  • Low profile design
  • Education warranty available

Vivitek DW763USTZ Specifications:

  • Display Type: Single Chip 0.65” DLP Technology by TI
  • Brightness: 3,500 ANSI Lumens
  • Native Resolution: WXGA (1280 x 800)
  • Maximum Resolution: VGA (64 x 480) to WUXGA (1920 x1200)
  • Contrast Ratio: 12,000:1
  • Lamp Life and Type: Up to 20,000 Hours, Laser Light Engine
  • Image Size (Diagonal): 80"-150” Diagonal
  • Aspect Ratio: Native 16:10
  • Lens Shift: No
  • Zoom Ratio: Fixed
  • Throw Ratio: .24:1
  • Keystone Correction: 2D, Vertical and Horizontal ±30°; Auto Vertical
  • Horizontal Frequency: 15 K, 102 KHz
  • Vertical Scan Rate: 23-120 Hz
  • Operating Temp.: 32°-104°F (0°-40°C)
  • HDTV Compatibility: 480i, 480p, 576i, 567p, 720p,1080i, 1080p
  • Video Compatibility: NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz)
  • I/O Connection Ports: HDMI/MHL (x2), Composite Video (in RCA), S-Video (in Mini DIN 4pin), Audio in (Mini Jack), Audio L/R (RCAx2), Audio Out (Mini Jack), LAN RJ45, RS232 (DB-9pin), USB (Type Mini B), Computer in (D-sub 15pin), Monitor Out (D-sub 15pin)
  • Security Solutions: Kensington® Security Slot, Security Bar, Keypad Lock
  • Dimensions (WxDxH): 18” x 14.8” x 5.2” (456 x 376 x132 mm)
  • Weight: 23.1 lbs (10.5 kg)
  • Available Color: White
  • Noise Level: 31 dB / 28 dB (Normal / Economy Mode)
  • Power:
    • Supply and Cons.:
      • AC 100-240V, 50/60 Hz; AC 100-240 V, 50/60 Hz
  • Instant on/off: Yes
