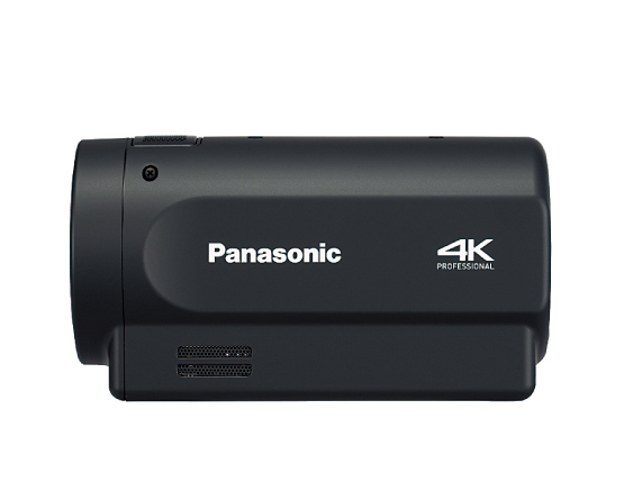

Panasonic AG-UCK20GJ Compact 4K Camera Head with 20x lens for Portable Recorder

The Panasonic AG-UCK20GJ is a compact recorder with versatile operation for broadcasting, live streaming, video production, and more. A Compact, Lightweight, Free-Style Shooting: Inheriting the features of the first-generation POVCAM plus the operating ease of a touch panel. Network Operation for IP Control and IP Streaming: LAN connection enables zooming and real-time video monitoring with a PC or tablet. Double SDXC Memory Card Slots: Extended recording capability with large-capacity SDXC Memory Cards and Relay Recording. High-Quality, Newly Designed 4K (UHD) Camera Head: Featuring a high-resolution, progressive MOS sensor and 29.5mm (35 mm equivalent) wide-angle optical 20x zoom lens.

Features

• Inheriting the compact, lightweight, free-style shooting features of the First-generation POVCAM plus the operating ease and versatility of a touch panel
• Network operation for IP control and IP streaming versatile system functions, including 3G-SDI/HDMI/IP simultaneous output
• Double SD memory card slots (SDXC memory card) and relay recording a memory card recorder with high image quality and extended recording
• 4K (UHD)-compatible, 29.5 mm wide-angle optical 20x zoom lens compact camera head with improved image quality and functions
• POVCAM applications using the compact camera head

Specifications

• Power: DC 9 V (supplied from the AG-UMR20)
• Power consumption: 0.6 A
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Operating humidity: 10 % to 80 % (no condensation)
• Camera:
  • Pickup device: 1/2.3-type MOS MOS solid state image sensor (Total pixels: approx. 12.76 megapixels)
  • Lens:
    • Zoom: optical 20x motorized zoom
    • Fvalue: F1.8 to F3.6, Focal length: f= 4.08 mm to 81.6 mm
    • 35 mm conversion: 29.5 mm to 612.0 mm (Hybrid O.I.S mode “OFF”)
    • Filter diameter: 49 mm, ND filter: CLEAR, 1/4, 1/16, 1/64 (built-in)
    • Shortest shooting distance: 4.9 ft (1.5 m) at zoom range, 0.1 ft (3 cm) at wide angle
    • IR cut filter: Incorporates the ON/OFF control function
  • Zoom:
    • i. Zoom: x30 (HD), x22 (4K)
    • Digital zoom: x1.4, x2, x4, x6, x8
  • Image stabilizer:
    • Optical image stabilizer (HD/4K)
    • 5-Axis hybrid image stabilizer (HD)
  • Horizontal resolution:
    • 1,300 TV (HDMI output 2160/29.97p, when 25.00p playback)
    • 1,000 TV (HDMI output 1080/59.94p, when 50.00p playback)
  • Input/Output:
  • AUDIO IN: Built-in microphone (2 CH stereo)
  • Connector: 20 pin dedicated interface (to the AG-UMR20)
• Weight: Approx. 0.717 lbs
• Dimensions (WxHxD): 2-17/32" x 2-27/32" x 5-5/32"

Note

Additional specifications can be found in the Documentation tab.
