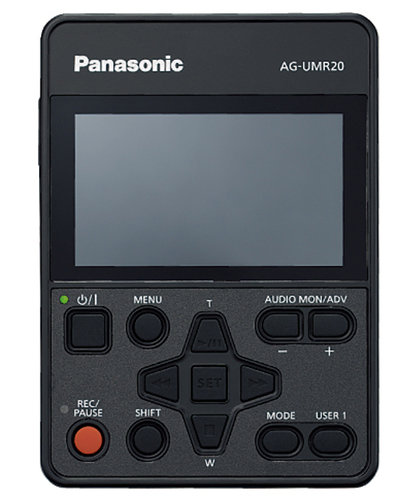

Panasonic AG-UMR20PJ
Memory Card Portable Recorder

OUR PART #:  AG-UMR20PJ

The Panasonic AG-UMR20PJ is a conpact recorder with versatile operation for broadcasting, live streaming, video production, and more.
Learn More
Our Price: $2,300.00
List Price: $2,395.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Panasonic AG-UMR20PJ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Panasonic AG-UMR20PJ is a conpact recorder with versatile operation for broadcasting, live streaming, video production, and more.

A Compact, Lightweight, Free-Style Shooting: Inheriting the features of the first-generation POVCAM plus the operating ease of a touch panel.

Network Operation for IP Control and IP Streaming: LAN connection enables zooming and real-time video monitoring with a PC or tablet.

Double SDXC Memory Card Slots: Extended recording capability with large-capacity SDXC Memory Cards and Relay Recording.

High-Quality, Newly Designed 4K (UHD) Camera Head: Featuring a high-resolution, progressive MOS sensor and 29.5mm (35 mm equivalent) wide-angle optical 20x zoom lens.

Panasonic AG-UMR20PJ Features:

  • Inheriting the compact, lightweight, free-styleshooting features of the First-generation POVCAM plus the operating ease andversatility of a touch panel
  • Network operation for IP control and IP streamingversatile system functions, including 3G-SDI/HDMI/IP simultaneous output
  • Double SD memory card slots (SDXC memory card) andrelay recording a memory card recorder with high image quality and extendedrecording
  • 4K (UHD)-compatible, 29.5 mm wide-angle optical 20xzoom lens compact camera head with improved image quality and functions
  • POVCAM applications using the compact camera head

Panasonic AG-UMR20PJ Specifications:

  • General:
    • Power: DC 9 V (supplied from the AG-UMR20)
    • Power consumption: 0.6 A
    • Operating temperature: 32°F to 104°F (0°C to 40°C)
    • Operating humidity: 10 % to 80 % (no condensation)
    • Weight: Approx. 0.717 lbs (325 g)
    • Dimensions (WxHxD): 2-17/32" x 2-27/32" x 5-5/32" (64 x 72 x 131 mm)(excluding protrusion)
  • Camera:
    • Pickup device: 1/2.3-type MOS MOS solid state image sensor (Total pixels: approx. 12.76 megapixels)
    • Lens:
      • Zoom: optical 20x motorized zoom
      • Fvalue: F1.8 to F3.6, Focal length: f= 4.08 mm to 81.6 mm
      • 35 mm conversion: 29.5 mm to 612.0 mm (Hybrid O.I.S mode “OFF”)
      • Filter diameter: 49 mm, ND filter: CLEAR, 1/4, 1/16, 1/64 (built-in)
      • Shortest shooting distance: 4.9 ft (1.5 m) at zoom range, 0.1 ft (3 cm) at wide angle
      • IR cut filter: Incorporates the ON/OFF control function
    • Zoom:
      • i. Zoom: x30 (HD), x22 (4K)
      • Digital zoom: x1.4, x2, x4, x6, x8
    • Image stabilizer:
      • Optical image stabilizer (HD/4K)
      • 5-Axis hybrid image stabilizer (HD)
    • Gain setting: Automatic, manual 0 dB to 30 dB(1 dB step), Super Gain 33 dB, 36 dB
      *At auto mode, 3 dB to 30 dB (3 dB steps) can be selected with AGC limit setting
    • White balance: ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000 K to 15000 K)
    • Shutter speed:
      • 59.94i/59.94p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
      • 29.97p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec. to 1/8000 sec. (same as above)
      • 23.98p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec. to 1/8000 sec. (same as above)
      • 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec. to 1/8000 sec. (same as above)
      • 25.00p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec. to 1/8000 sec. (same as above)
    • Slow shutter:
      • 59.94i/59.94p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec. 29.97p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
      • 23.98p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
      • 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
      • 25.00p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
    • Synchro scan:
      • 59.94i/59.94p mode: 1/60.0 sec. to 1/285.6 sec.
      • 29.97p mode: 1/30.0 sec. to 1/206.5 sec.
      • 23.98p mode: 1/24.0 sec. to 1/280.1 sec.
      • 50i/50p mode: 1/50.0 sec. to 1/209.2 sec.
      • 25p mode: 1/25.0 sec. to 1/224.3 sec.
    • Minimum illumination: 0.2 lx (slow shutter: 1/2 sec., gain: +36 dB)
    • Horizontal resolution:
      • 1,300 TV (HDMI output 2160/29.97p, when 25.00p playback)
      • 1,000 TV (HDMI output 1080/59.94p, when 50.00p playback)
  • Input/Output:
    • AUDIO IN: Built-in microphone (2 CH stereo)
    • Connecter: 20 pin dedicated interface (to the AG-UMR20)
