Roland System Group V-800HD MKII
Multi-Format Video Switcher with 16 Inputs and 8 Cross Points

OUR PART #:  V-800HD-MKII

With a refreshed interface for improved workflow, Roland's V-800HD MKII is an updated version of the industry standard in multi-format video switchers.
Learn More

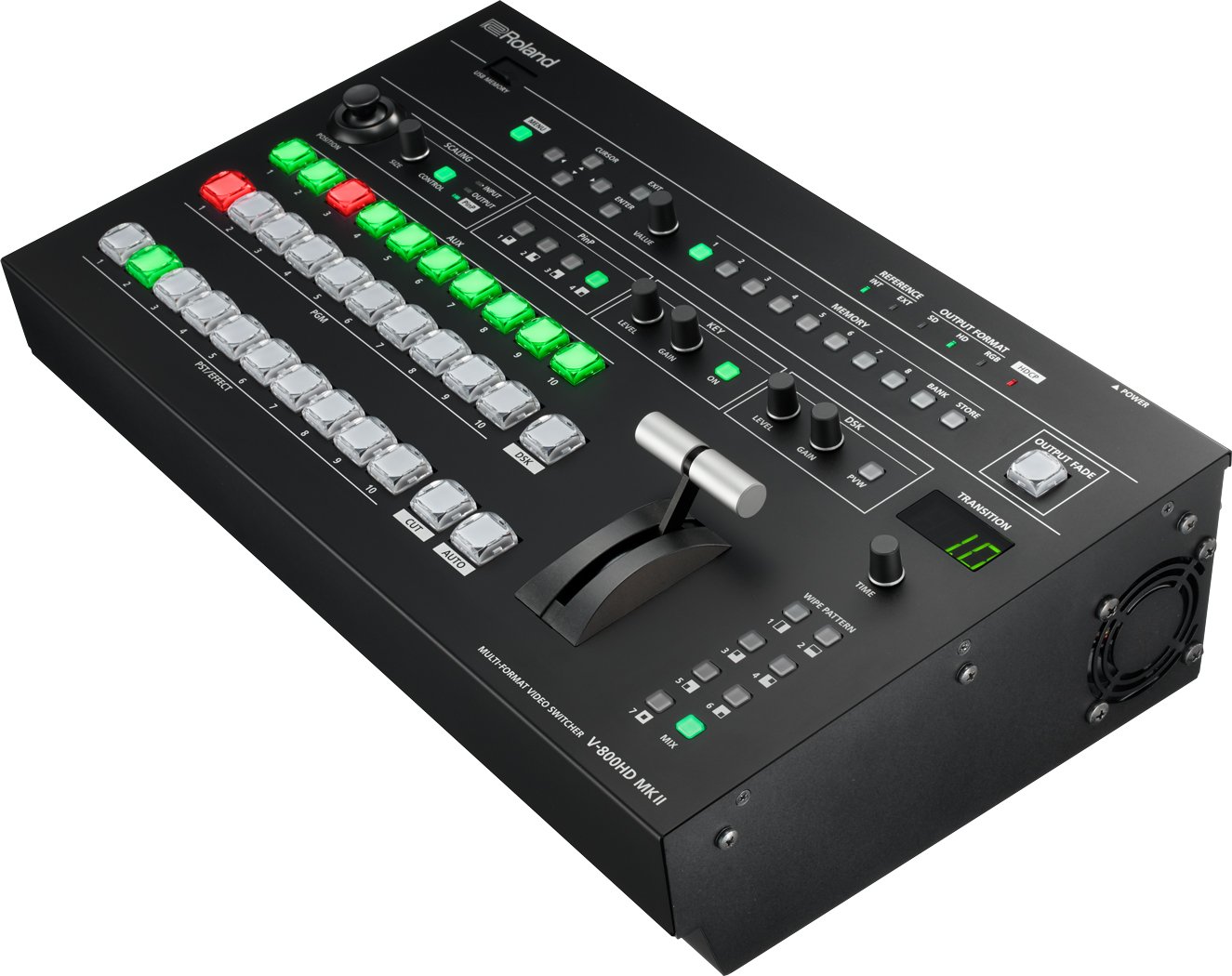

Roland V-800HD MKII - Angled View
Roland V-800HD MKII - Right Side View
Roland V-800HD MKII - Left Side View

Click a thumbnail to see more images. (6 total)

Call for price! Not available online.
List Price: $7,995.00

Similar Products

With a refreshed interface for improved workflow, Roland's V-800HD MKII is an updated version of the industry standard in multi-format video switchers. A newly added AUX bus delegation layer switches and enhances both visibility and operability. This creates a superior and easy to use interface for managing effects and switching for great results - giving you high-end performance for every situation.

Supporting live events requires being ready for an ever-changing variety of input sources. The V-800HD MK II is equipped with scaling for every input and a wide range of common video connectors allowing camera, data and smart device sources of different resolutions and frame rates to be automatically detected, scaled and then adjusted as needed. Fine position adjustment for each input can be set in real-time using the joystick positioner control or from the menu displayed on the multi-viewer.

Typical situations for using the V-800HD MKII include, but are not limited to:

  • Live Event Production:
    • Lectures, Meetings and Presentations: The V-800HD MK II’s 4:4:4/10 bit processing ensures pixel accurate color making it the ideal switcher for large screens over 300 inches and ensures the crisp detail of hi-resolution data sources are sharply output to today’s low dot pitch LED displays. The new AUX bus selection layer makes it easier than ever to send a source to a second output destination such as a confidence monitor, presenter notes display, second display or overflow rooms.
    • Hall, Theater and Church: The V-800HD MK II is also a powerful solution for installation in facilities that have both professional and in-experienced operators. Complex settings can be recalled with a one-touch memory recall and a straight forward interface makes it easy to step-up and operate without training. Two still images are assignable to the cross points from a choice of 16 internal stored images. This is useful for displaying corporate or institution logos and safety slides. The V-800HD MK II also makes it easy to create up to 3 “angles” from a single camera source with the high-resolution scaling of the multi-zoom function.
  • Live Streaming Production:
    • Web Switching: Modern webcasts require a variety of camera and computer sources of a variety of formats. The V-800HDMKII simultaneously supports video resolutions of 1080i, 1080p, 720p, 480i/p and computer data resolutions of up to WUXGA allowing for high quality webcast requirements. The built-in PnP and Key Compositing features are ideal for creating informative training instruction and news webcasts.

Roland V-800HD MKII Features:

  • Up to 16 inputs, 8 cross points (4 SDI/Composite + 4DVI-I/HDMI)
  • 6 outputs (2 SDI + 2 DVI + RGB + Composite) Simultaneous output
  • Dedicated multi-view monitor output
  • High quality 4:4:4/10 bit processing
  • 1080p/i, WUXGA processing
  • 1 M/E (KEY, PinP) + AUX or DSK
  • Frame Sync & Scaler on all inputs and outputs
  • 3G, HD, SD 3-mode SDI (3G-SDI Level A/B compatible)
  • DVI-D/RGB/HDMI compatible
  • Input signal status confirmation LEDs
  • HDCP Compatible
  • Two active still images from sixteen still memories
  • Ten assignable cross points
  • AUX bus switch

Roland V-800HD MKII Specifications:

  • Video Processing:
    • Processing: 4:4:4 (Y/Pb/Pr, RGB), 10-bit
  • Supported Formats:
  • Video: 480/59.94i, 576/50i, 480/59.94p, 576/50p,720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p (* SDI andComposite input can input the same frame rate as a setup menu setting.)
  • PC: 640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz(*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz(*2)

NOTES:
* Conforms to VESA DMT Version 1.0 Revision 10
    *1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
    *2 Reduced blanking
    *3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.

  • Still Image: Windows Bitmap File (.bmp) (* Maximum1900x 1200 pixels, 24-bit per pixel, uncompressed)
  • Input/Output Level and Impedance:
    • Composite: 1.0 Vp-p, 75 ohms
    • Analog HD/RGB: 0.7 Vp-p, 75 ohms (H, V : 5 VTTL)
  • Input Connectors:
    • 3G/HD/SD-SDI: BNC type x 4  * Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C
    • DVI-I/HDMI: DVI-I type x 4  * Select DVI-A or DVI-D/HDMI using switch per channel
    • Analog Video (HD): Component (Mini D-sub 15-pin type) x 4  * Combined use with Analog RGB
    • Analog Video (SD): Composite (BNC type) x 4  * Select Composite or SDI using menu per channel
    • Analog RGB: Mini D-sub 15-pin type x 4
      NOTES:
      * Combined use with Analog Video (HD)
      * Select DVI-D/HDMI or Analog RGB using menu per channel
  • Output Connectors:
    • 3G/HD/SD-SDI: BNC type x 2  * Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C
    • DVI-D/HDMI: DVI-I type x 2, HDMI x 1 (for multi-view monitor)
    • Analog Video (HD): Component (Mini D-sub 15-pin type) x 1  * Combined use with Analog RGB
    • Analog Video (SD): Composite (BNC type) x 1
      NOTES:
      * Combined use with Analog Video (HD)
      * Does not synchronize with Reference Input.
    • Analog RGB: Mini d-sub 15-pin type x 1  * Combined use with Analog Video (HD)
  • Other Connectors:
    • Tally: Mini D-sub 15-pin type x 2  * Input (max) : 12 V, 200 mA Open collector Type
    • Reference: BNC type (IN, THRU)  * Black Burst (Sync to frames), Bi-Level, Tri-Level
    • MIDI: 5 pin DIN type (IN, OUT/THRU)
    • RS-232: D-sub 9 pin type x 1
    • USB port (host): A type x 1 (for USB memory)
  • Effects:
    • Transition: Mix, Cut, Wipe (9 patterns)
    • Composition: PinP, DSK, Chrominance Key, Luminance Key, External Key
    • Others: Output Fade, Output Freeze
  • Others:
    • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
    • Power Consumption:
      • 75 W/0.7 A (115 V, 117 V)
      • 75 W/0.4 A (220 V, 230 V, 240 V)
    • Operation Temperature:
      • +32° to +104° Fahrenheit
      • +0° to +40° Celsius
    • Accessories: Owner's Manual, Power cord, Rack-mount angle x 2
  • Size and Weight:
    • Dimensions (WxDxH):  19" x 10-7/8" x 4-5/8" (482 x 275 x 116 mm)

NOTE: * When rack mount angles are fitted.

    • Weight: 12 lbs 3 oz (5.5 kg)

NOTE: * This product is a Class A digital device under FCC part 15.
