Roland Professional A/V XS-1HD 4x4 HD Multi-Format Matrix Switcher

OUR PART #: XS-1HD MFR #: XS-1HD

Copied to clipboard

This versatile and compact switcher with multi-screen output and video compositing is the XS-1HD from Roland. ...Read more

Roland Professional A/V XS-1HD 4x4 HD Multi-Format Matrix Switcher Image 1
Roland Professional A/V XS-1HD 4x4 HD Multi-Format Matrix Switcher Image 2
Roland Professional A/V XS-1HD 4x4 HD Multi-Format Matrix Switcher Image 3
QU6VvE_o5wA
1 Video
Roland Professional A/V XS-1HD 4x4 HD Multi-Format Matrix Switcher
Our Price: $2,100.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 14-17 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

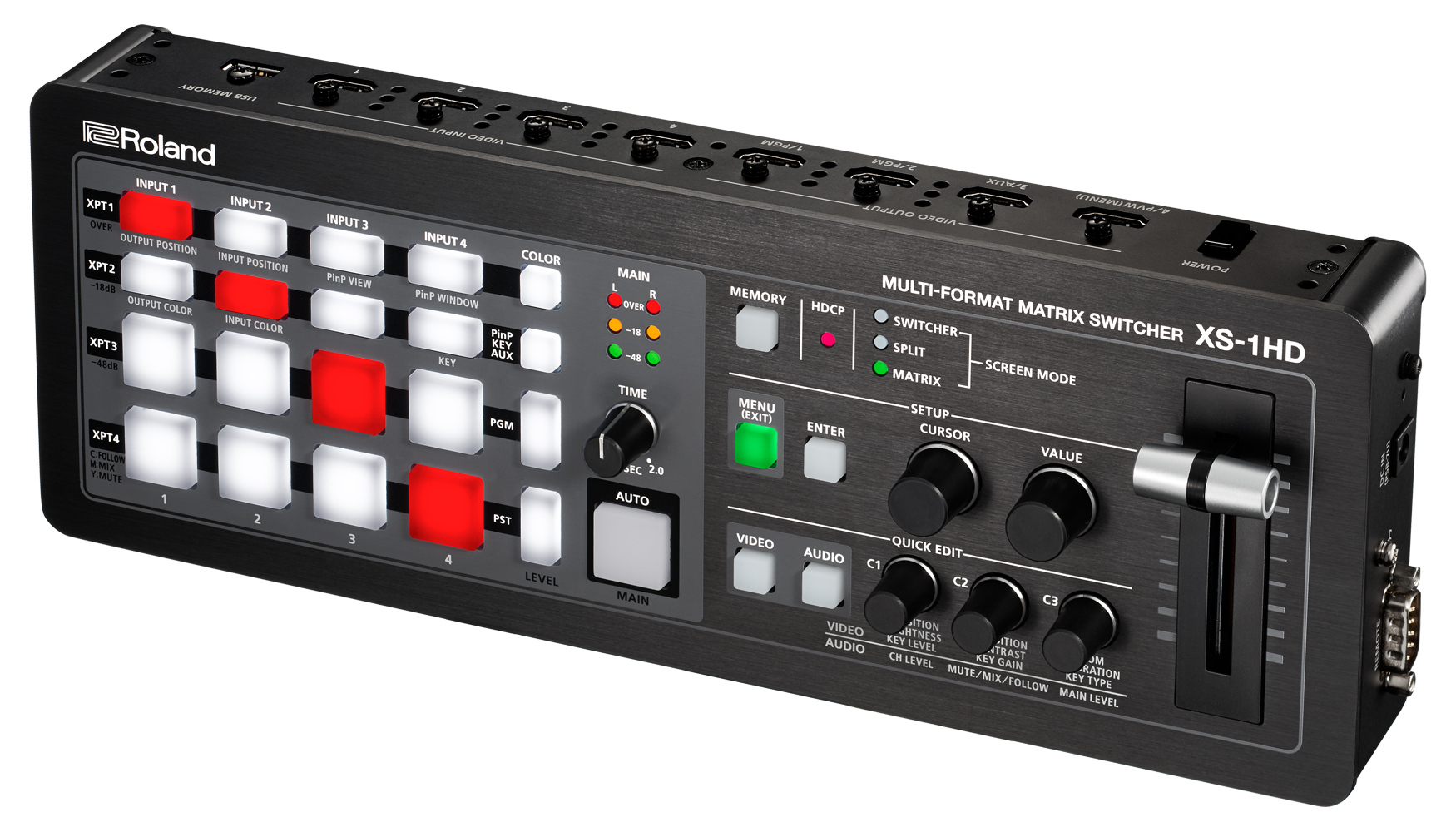

This versatile and compact switcher with multi-screen output and video compositing is the XS-1HD from Roland. As a multi-format matrix switcher with scalers, the XS-1HD supports video formats up to full HD. Even with its compact footprint, the XS-1HD lets you operate its powerful functions using only the operation panel. Since HDMI input/output and the controls are integrated into a single unit, it can be used in a variety of situations such as on a small desk or podium, or on a media cart.

The XS-1HD provides three screen modes for a variety of applications - in addition to the matrix switcher mode, there's a Switcher mode that lets you use PinP or key-compositing, dissolve transitions and provides a multi-view output, and a Split mode that can display up to three PinP images. All contained in a compact format, the XS-1HD incorporates a switcher, scalers, and audio mixer into a single unit. Additionally, high-quality image processing allows output to large high-resolution screens, without any degradation of quality when using this multi-format matrix switcher.

Applications:

  • Live Events
  • Exhibits
  • Stage Events / Conferences
  • Installed Systems
  • Meeting Rooms / Theaters / Churches
  • Online Store

Includes:

  • Owner's Manual
  • AC adapter
  • Power cord

Features:

  • A table-top matrix switcher that's the width of a 13” laptop, equipped with four HDMI inputs and outputs
  • High-quality 4:4:4 / 10-bit processing at up to WUXGA / 1080p
  • Frame synchronizer and scaler on all inputs
  • Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs
  • Switcher Mode allows PinP, key-compositing, and dissolve transitions
  • Split Mode allows PinP of up to three inset windows
  • Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input
  • Built-in EDID emulator, and HDCP-compliant
  • Still images can be loaded from a USB flash drive

Specifications:

  • Video:
    • Processing:
      • 4:4:4 (Y / Pb / Pr, RGB) / 10 bits
      • 4:2:2 (Y / Pb / Pr) / 10 bits
    • Input Connectors:
      • HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
      • *HDCP Supported
    • Output Connectors:
      • HDMI: HDMI type A x 4 (HDMI OUTPUT 1--4)
      • *HDCP Supported
    • Formats:
      • 480 / 59.94i (*1), 576 / 50i (*1), 480 / 59.94p (*1), 576 / 50p (*1), 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p, 800 x 600 / 60 (*1)(*2), 1024 x 768 / 60 (*2), 1280 x 720 / 60 (*2), 1280 x 800 / 60 (*2), 1366 x 768 / 60 (*2), 1280 x 1024 / 60 (*2), 1400 x 1050 / 60 (*2), 1600 x 1200 / 60, 1920 x 1080 / 60, 1920 x 1200 / 60 RB
      • *Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
      • *Frame rate is 59.94Hz (NTSC) or 50Hz (PAL).
      • (*1) Input only.
      • (*2) Output refresh rate is 75Hz when frame rate is set to 50Hz.
    • Effects:
      • Output Mode: Switcher, Split, Matrix
      • Transition: Mix, Cut (*3)
      • Composition (Keyer): 2 (*3)
      • Others: HDCP Supported, Test Pattern Generator.
      • (*3) These effects depends on Output Mode.
    • Still Image:
      • Internal Memory: 1
      • Maximum Size: 1920 x 1200 pixels
      • Format: Windows Bitmap File (.bmp) 24-bit per pixel, uncompressed
    • Audio:
    • Sampling Rate: 24-bits / 48kHz
    • Input Connectors:
      • HDMI: HDMI type A x 4
      • AUDIO INPUT: RCA pin type
    • Output Connectors:
      • HDMI: HDMI type A x 4
      • AUDIO OUTPUT: RCA pin type
      • PHONES: Stereo mini type
    • Input Level:
      • AUDIO INPUT: -10dBu (Maximum : +8dBu)
    • Input Impedance:
      • AUDIO INPUT: 15kΩ
    • Output Level:
      • AUDIO OUTPUT: -10dBu (Maximum : +8dBu)
      • PHONES: 72mW + 72mW (32Ω)
    • Output Impedance:
      • AUDIO OUTPUT: 1kΩ
      • PHONES: 10Ω
    • Formats:
      • HDMI: Linear PCM, 24-bits, 48kHz, 2 ch
    • Processing:
      • Mixer: 4 ch (Delay : Maximum 500ms, Audio Follow)
      • Test Tone Generator
    • Others:
    • External Connectors:
      • REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
      • USB MEMORY : USB A type x 1 (USB Memory)
    • Preset Memory: 16 - *Auto Memory Function
    • Power Supply: AC Adapter
    • Current Draw: 2.1A
    • Power Consumption: 25W
    • Operation Temperature: +32° to +104°F (+0° to +40°C)
    • Dimensions (WxDxH): 12-15/16" x 4-5/8" x 2-1/4" (328 x 117 x 57mm)
    • Weight: 2 lbs, 11oz (1.2kgs)
