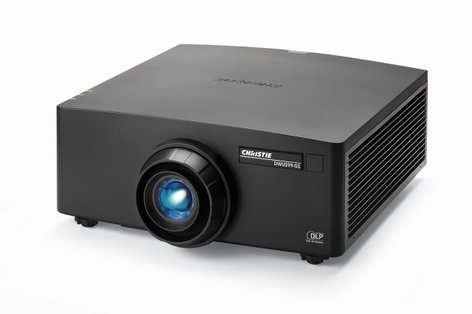

Christie Digital DWU599-GS-B
6065 Lumen 1DLP WUXGA Laser Projector in Black - Body Only

OUR PART #:  DWU599-GS-B

NOTE : Some gear shown above are NOT INCLUDED and sold separately . Lenses sold separately.
Learn More
Christie DWU599-GS-B - Low Right View
Christie DWU599-GS-B - High View
Christie DWU599-GS-B - Low Left View

Click a thumbnail to see more images. (5 total)

Similar Products

NOTE: Some gear shown above are NOT INCLUDED and sold separately. Lenses sold separately. For more information on this and other products, please contact your Sales Pro.

Delivering accurate color reproduction, image quality and high-brightness the Christie Digital DWU599-GS-B 6,065 lumen laser projector also has the benefits of being a long-life laser phosphor projector which means low-cost of ownership. This model comes with the projector body only (lenses sold separately) and is in the color black.

Now you'll avoid the down-time, cost of lamp replacements and maintenance by choosing the Christie® GS Series of solid state illumination projectors for your next project. From business venues to events and beyond, professional-grade Christie GS Series delivers great performance and reliability in high-usage environments. As part of the GS Series, the Christie DWU599-GS-B typically provides an astonishing 20,000 hours of low-cost operation. Wireless connectivity a small footprint, low-weight, quiet operation and a full suite of lenses makes this member of the GS Series ideal for boardrooms, conference rooms, education, houses of worship and other small and medium venues.

Christie DWU599-GS-B Features:

  • Laser phosphor illumination and 1DLP technology for excellent image quality and reliability
  • 20,000 hours of low-cost operation
  • Features precise software color adjustments for hue, saturation and gain. Adjust the hue of each primary color component (red, green, blue and white) for perfecting images on an individual projector or for matching colors across multiple adjacent displays
  • Blending and warping capabilities for curved surfaces using the optional Dual processor warp module
  • 24/7 operation
  • Standard HDBaseT input
  • Optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes

Christie DWU599-GS-B Specifications:

  • Part Number: 140-036100-01
  • Technology: 1DLP
  • Brightness:
    • 6065 ISO lumens (typical)
    • 5400 Center lumens (typical)
    • 5400 ANSI lumens (typical)
  • Contrast:
    • 1,5?00,000:1 with full on/off (Christie RealBlack™? enabled) 250:1
    • ANSI (nominal) with full on/off (Christie RealBlack disabled): 1200:1
    • Display: 1DLP 0.65" DMD
    • Resolution: 1920 x 1200
    • Illumination: Solid State (Laser Phosphor)
    • Illumination Life: 20,000 hrs
  • Inputs:
    • HDMI x 1
    • DVI-D x 1 (digital only)
    • DisplayPort x 1
    • VGA x 1
    • Composite video x 1 (RCA)
    • S-Video x 1 (mini DIN)
    • Component video (Y/Pb/Pr)
    • USB x 1 (type B mini) - display over USB
    • USB x 1 (type A) - image viewer or WiFi dongle (optional)
    • RJ45 x 1 (ChristiePresenter over wired network connection)
  • Signals: HDTV formats VGA through to WUXGA (1920 x1200)
    • Pixel clock: 162 MHz
    • Scan rates:
    • Horizontal 15 kHz to 100 kHz
    • Vertical: 24 Hz to 85 Hz
    • Monitor out: HD15 x 1
  • Networking:
    • RS-232 in
    • Ethernet (10/100) RJ45 with ChristieNET connectivity
    • Built-in backlit keypad
    • Compatible with Crestron Connected, AMX Discovery
  • Standard accessories:
    • IR remote w/ wired remote jack (wire not included)
    • AC line cord for projector head
    • User manual
  • Optional accessories:
    • 1DWUSB-BGN (wireless dongle for video and control) (133-113106-XX)
    • Warp module (133-111104-XX)
    • Cable cover (140-106108-XX white | 140-106119-XX black)
    • Ceiling mount (108-506102-XX)
    • Portrait side cover (140-108100-XX white | 140-108111-XX black)
    • Christie One Mount (108-506102-XX)
    • One Mount Extender Rod (121-125109-XX)
    • One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod) (121-126100-XX)
  • Lens mount:
    • Tool-free lens insertion system
    • Boresight adjustable
    • Motorized horizontal and vertical lens offset
    • Motorized zoom and focus adjustment
  • Lenses:
    • 0.75-0.95: 1 zoom lens G (140-119102-XX)
    • 0.95-1.22 :1 zoom lens G (140-101103-XX)
    • 1.22-1.52: 1 zoom lens HP G/GS (140-131106-XX)
    • 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-100102-XX)
    • 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-132107-XX)
    • 1?.52-2.89:1 zoom lens G (140-102104-XX)
    • 2.90-5.50: 1 zoom lens G/GS (140-107109-XX)
  • Offsets:
    • +/-50% vertical (+/-648 pixels)
    • +/-15% horizontal (+/-288 pixels)
  • Power:
    • Voltage: 100-240VAC @ 50/60 Hz
    • Consumption: 550W max, 280W eco mode
    • Current: 6.0A max
  • Dissipation: 1774 BTU/hr max, Full power mode: 1875.5BTU/hr +/-15% ECO mode: 954.8 BTU/hr +/-15%
  • Audible noise:
    • Standard Mode: 38dB(A)
    • Eco Mode: 34dB(A)
  • Dimensions (LxWxH):
    • Physical: 19.9 x 17.95 x 7.5" (505 x 456? x 190mm) w/o feet
    • Shipping: 24.6 x 23.5 x 13.4" (810 x 595 x 341mm)
  • Weight:
    • Physical: 36.0 lbs (16.5 kg)
    • Shipping: 49.2 lbs (22.3 kg)
  • Operating environment:
    • Temperature: 5 to 40°C (40 to 104°F)
    • Humidity: 0 to 90% non-condensing
  • Regulatory:
    • UL/CSA/IEC 60950-1
    • FCC Class A, FDA, CE, CCC, KC, EAC, PSE, C-tick, EAC, SABS, BIS, VCCI, RCM?
    • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
    • RoHS, REACH, WEEE
  • Limited warranty:
    • 3 years parts and labor on the projector
    • 3 years or 15,000 hours parts and labor on the illumination system*
    • Contact an authorized Christie representative for full details of our limited warranty

NOTE: *Please reference to the Christie Standard Limited Warranty document for details.
