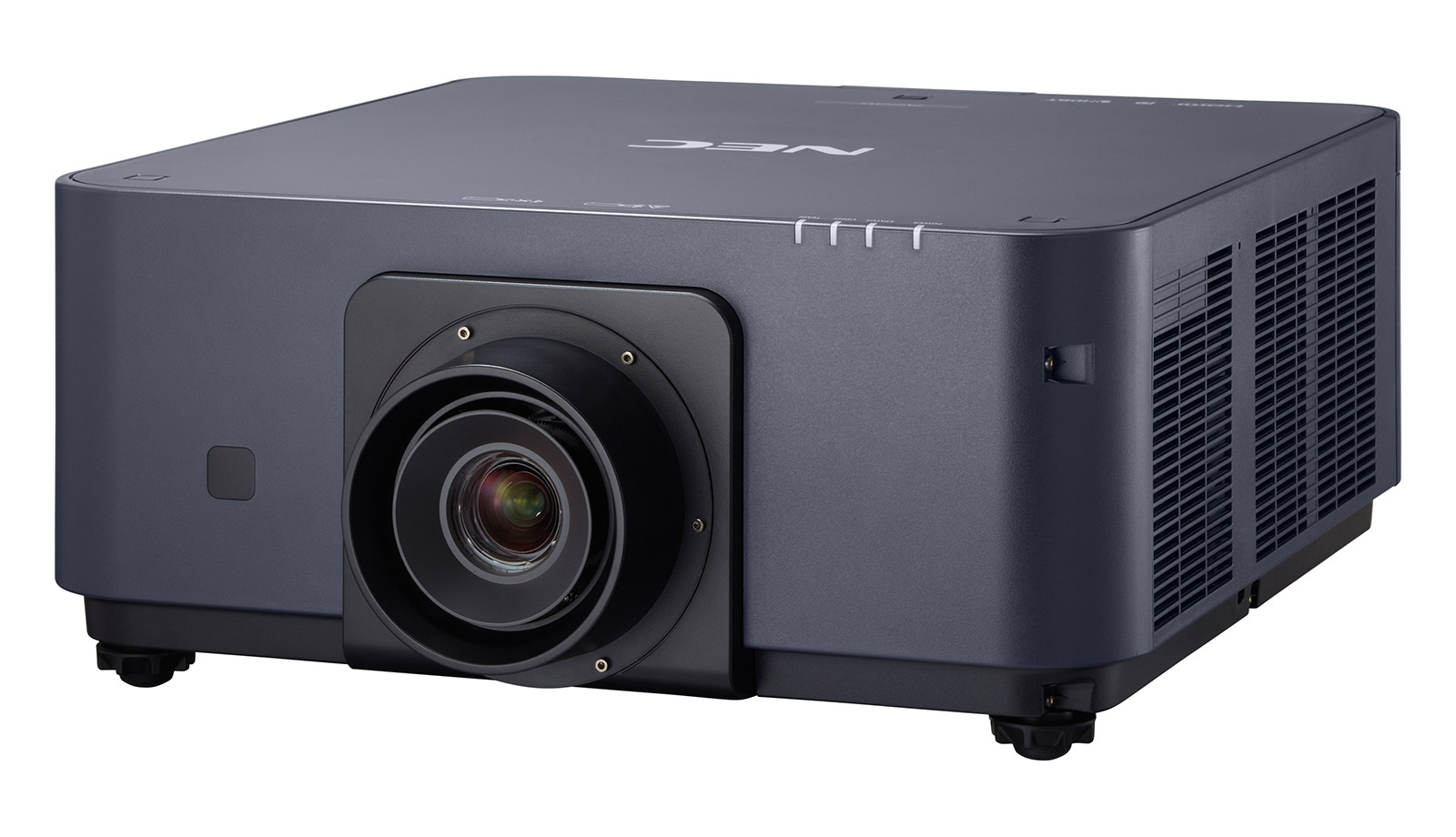

NEC Visual Systems PX602UL
6000 Lumen DLP Laser Installation Projector in Black - Body Only

OUR PART #:

NOTE : Some gear shown above are NOT INCLUDED and sold separately . Lenses sold separately.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

NOTE: Some gear shown above are NOT INCLUDED and sold separately. Lenses sold separately. For more information on this and other products, please contact your Sales Pro.

If you're looking to be able to project precise images up to 500 inches across (diagonally) from your PC or Mac computer, VCR, Blu-ray player or document camera, the PX602UL laser projector is a strong consideration. With a long-life laser diode equipped in the light module (giving you a life of 20,000 hours), you'll benefit from NEC's innovation in light source technology with this DLP laser installation projector.

The  NEC PX602UL (order code 60003795) delivers on all the benefits associated with the latest laser light source - with no lamp replacement necessary, maintenance is not required and longevity is assured. Achieving an outstanding color gamut and supreme image detail at high resolutions, laser is the light source of the future. Addressing the demanding large venue environment, the NEC PX602UL presents advanced network, multi-media and professional installation features for superior projection performance within Rental/Staging, Higher Education, Museums, large Corporates and Signage installations.

NEC PX602UL Features:

  • No lamp replacement – up to 20,000 hours maintenance free operation possible due to Laser Light Source.
  • Easy installation – selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantees hassle-free installation and replacement of old installation projectors.
  • Easy way to a big picture – up to 4K interface,HDMI-out signal loop through, built-in signal splitter and edge blendingcapability enables large presentation pictures without any externaldevices.PiP function allows additional sources to be displayed.
  • Outstanding Picture Quality – whole new visualisation experience with high brightness, up to 4K input signal and unique picture & color processing technology based on the latest NEC scaler chip.
  • Rich connectivity – including HDBaseT, the world’s first HDMI-out interface, 1xHDMI and DisplayPort technology guarantees outstanding connectivity.
  • Widest application support – portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled installation capability.
  • Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

NEC PX602UL Specifications:

  • Product Information:
    • Product Name: PX602UL
    • Product Group: Laser Projector
    • Order Code: 60003795 (BK), 60003695 (WH)
  • Image:
    • Projection Technology: 1-chip DLP™ Technology
    • Native Resolution: 1920 x 1200 (WUXGA)
    • Contrast Ratio 1: 10000:1
    • Brightness 1: 6000 ANSI Lumen, with std. optional lenses

NOTE: 1 Compliance with ISO21118-2012

    • Lamp: Laser Light Source
    • Lamp Life [hrs]: 20000
    • Lens: 5 optional bayonet lenses
    • Projection Factor: depending on lens selection
    • Projection Distance [m]: 1.02 – 19.39
    • Screen Size (diagonal) [cm] / [inch]: Maximum: 760 / 300"; Minimum: 127 / 50"
    • Zoom: Motorized
    • Focus Adjustment: Motorized
    • Supported Resolutions: 4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50;
    • 576p/50; 480p/60; 480i/50
    • Frequency: Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz
  • Connectivity:
    • RGB (analog): Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
    • Digital:
      • Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP
      • Output: 1 x HDMI supporting HDCP
    • Video: Input: 1 x BNC R Share
    • S-Video: Input: 1 x BNC G/B Share
    • Control: Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT
    • Option Slot: Input: 1 x Slot for optional OPS modules
    • USB: 1 x Type A (USB 2.0 high speed for mouse support)
    • 3D Sync: Output: 1 x Mini DIN 3pin
    • Video Signals: NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
  • Remote Control:
    • Input: 1 x 3.5 mm Stereo Mini Jack
    • Remote Control: Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select; Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection
  • Electrical:
    • Power Supply: 100-240 V AC; 50 - 60 Hz
    • Power Consumption [W]: 270 Eco Mode; 550 Normal Mode
  • Mechanical:
    • Dimensions (W x H x D): 19.06" x 7.68" x 20.04" (484 x 195 x 509mm) (without lens and feet)
    • Weight: 40.79 lbs (18.5Kg)
    • Fan Noise [dB (A)]: 38
    • Color Versions: Black; White
  • Ergonomics:
    • Safety and Ergonomics: CE; ErP; RoHS; TUEV Type Approved
  • Additional Features:
    • Special Characteristics: 3D ready; 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5 max, horizontal ± 0,15 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK;
    • Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control
  • Green Features:
    • Energy Efficiency: Laser Light Source
    • Ecological Materials: 100% recyclable packaging; Downloadable manuals
    • Ecological Standards: ErP compliant
  • Warranty:
    • Projectors: 3 years pan-European service
    • Light Source: 3 years or 10000h (whatever comes first)
  • Shipping Content:
    • Shipping Contents: IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Stacking Holder; Users Manual on CD-ROM; Utility software
  • Optional Accessories:
    • Optional Accessories: Ceiling Mount Kit; DLP-Link 3D Glasses (VolfoniFit); Flightcase; Portrait Mode Cover (NP07CV); Stacking Frame (PJ01FPX); XpanD 3D Glasses (X105-RFX2);  XpanD 3D RF Emitter (AD025-RF-X1)
    • Lenses: NP33ZL (0.75-95:1) available from 04/2015; NP34ZL (0.95-1.22:1); NP35ZL (1.22-1.53:1); NP37ZL (1.52-2.92:1); NP38ZL (2.9-5.5:1)
    • OPS Slot-in Modules: Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs
