The Light Source MAB2 Mega Clamp with 2" Long Bolt, Black

OUR PART #: MAB2

Copied to clipboard

The Light Source MAB2 Mega-Clamp is the world’s new standard theatrical lighting C-Clamp. ...Read more

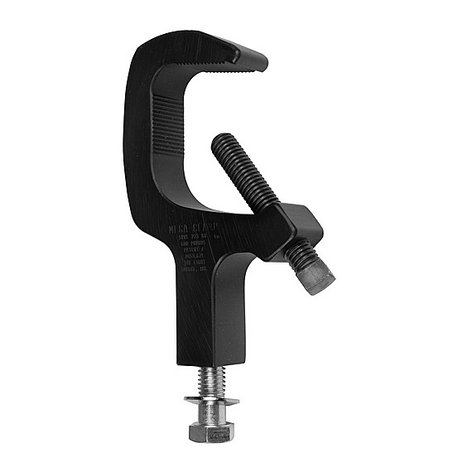

The Light Source MAB2 Mega Clamp With 2" Long Bolt, Black Image 1
The Light Source MAB2 Mega Clamp With 2" Long Bolt, Black
Our Price: $18.35

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Light Source MAB2 Mega-Clamp is the world’s new standard theatrical lighting C-Clamp. The Mega-Clamp is created from high tensile, aircraft grade, extruded aluminum; so it’s both stronger and lighter than cast iron clamps. The Mega-Clamp’s safety factor far exceeds industry standards, breaking at over 2-1/2 tons at an independent testing laboratory. It is half the weight and twice as strong as most cast iron clamps.

The MAB2 Mega-Clamp fits from 1" pipe to 2" pipe sizes (1-1/4" OD to 2.375" OD tubes). This means you can hang fixtures from a 2" pipe without having to buy an expensive “Heavy Duty Clamp”. The Mega-Clamp fits the larger pipe standard.

The Light Source MAB2 Specifications:

  • Minimum Size: 1" pipe, 1.315" OD
  • Maximum Size: 2" pipe, 2.375" OD
  • Safe Vertical Working Load: 600 lb (273 kg)
  • Hardware:
    • 1/2" x 1" long hex head Grade 5 zinc bolt
    • 1/2" x 3" long square head set screw
    • Belleville spring washer
  • Dimensions (HxWxD): 5.875" x 3.675" x 1"
  • Weight: 13.4 oz
  • Case Quantities: 48
