Product Overview

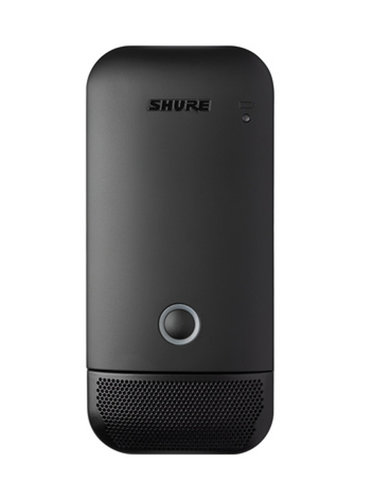

Shure's ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.
Applications
- Hotel / Conference Center
Features
- Offers up to 9 hours of continuous battery life with Shure rechargeable batteries and over 8 hours with AA alkaline batteries
- Works with the SBC850 and SBC450 Networked Charging Stations
- Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement
- Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
- Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup
- Compatible with ULX-D® and QLX-D® digital receivers
- Optional SB900A rechargeable batteries provide up to 9 hours of runtime
- Compatible with standard AA alkaline batteries
- Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
- Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
- Adjustable RF power, high-pass filter, and power lock settings
Specifications
- Available Frequency Bands:
- G50 (470-534 MHz)
- H50 (534-598 MHz)
- J50A (572-616 MHz)
- X52 (902-928 MHz)
- Gain Adjustment Range: 0 to 21 dB (in 3 dB steps)
- Battery Type / Battery Runtime @ 10 mW:
- Shure SB900/SB900A Rechargeable Li-Ion / Up to 9 hours 20 minutes
- AA batteries 1.5 V / Up to 8 hours 40 minutes
- Dimensions (H x W x D): 113.94 x 61.83 x 34.28 mm (4.48 x 2.43 x 1.35 in)
- Weight: 241 g with AA batteries
- Operating Temperature Range: 0°C (32°F) to 45°C (113°F)
- Housing: Molded Plastic
- RF Output
- Antenna Type: Integrated PIFA
- Impedance: 50 Ω
- Occupied Bandwidth:
- Modulation Type: Shure proprietary digital
- Power: 1 mW, 10 mW, 20 mW (varies by region)
Note
- When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
