Roland System Group V1HD-MONARCH-HD

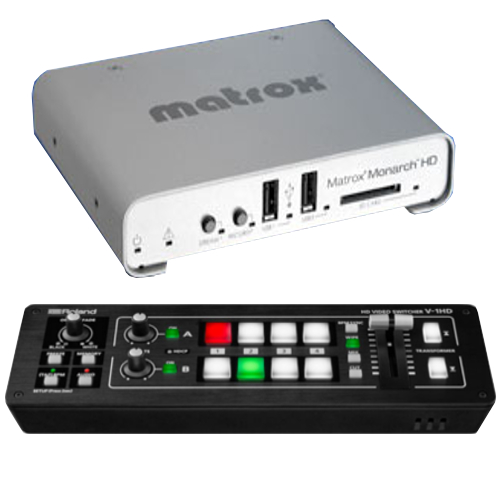

Roland V-1HD with Matrox Monarch HD

OUR PART #:  V1HD-MONARCH-HD

The Roland V-1HD makes it easy to connect and switch video cameras, smart phones, computers...
Learn More
Our Price: $1,899.00
List Price: $1,990.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Roland System Group V1HD-MONARCH-HD
Qty:
In Stock

Similar Products

The Roland V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” ideal for news broadcast or corporate training productions.

Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) such as YouTube Live, Facebook Live and Ustream are focused on delivering quality video to your audience while you control the quality of the archive.

From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264- encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

Roland V-1HD Includes:

  • Owner’s Manual
  • AC Adaptor
  • Power Cord
  • Cord Hook

Roland V-1HD Features:

  • Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
  • 4 HDMI inputs
  • Supports up to Full HD 1080p
  • Easy to Use Interface
  • Picture-in-picture and split functions
  • Two EFFECTS knobs deliver genuine visual performance
  • Full 12 Channel Audio Mixer Included
  • Easy to Operate with Hardware Controls
  • Two HDMI Outputs
  • Remote Control via USB or MIDI Connection

Roland V-1HD Specifications:

  • Video:
    • Video Processing: 4:2:2(Y/Pb/Pr), 8-bit
    • Input Connectors: HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
    • Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
    • Input Formats:
      • HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
      • HDMI: 1080/59.94i,1080/50i,1080/59.94p,
      • 1080/50p(FORMAT switch = 1080i or 1080p)
    • Output Formats:
      • HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
      • HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
      • HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
    • Video Effects:
      • Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), TRANSFORMER(11 types)
      • EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@, GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/2)@, SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@, SPLIT(V-CENTER)@
  • Audio:
    • Audio Processing: Sampling rate: 24bit/48kHz
    • Input Connectors:
      • Digital: HDMI INPUT 1–4 (19 pins) x 4
      • Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
    • Output Connectors:
      • Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
      • Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
    • Input Level:
      • AUDIO IN: -10 dBu (Maximum : +8 dBu)
      • MIC: -41 – -13dBu (Maximum : -1 dBu)
    • Input Impedance:
      • AUDIO IN: 15 k ohms, MIC:10 k ohms
    • Output Level:
      • AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
    • Output Impedance:
      • AUDIO OUT: 1k ohms, PHONES: 10 ohms
    • Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
  • Others:
    • Other Connectors: USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
    • Other Functions:
      • MEMORY (8 types), FREEZE (input video captured),
      • BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK)
    • Power Supply: AC adaptor
    • Current Draw: 1.5A
    • Power Consumption: 18W
    • Dimensions (WxDxH): 12-1/3" x 4" x 2-1/3" (313 x 102 x 59 mm)
    • Weight: 2 lbs 10-2/5 oz (1.2 kg)(excluding AC adaptor)

Matrox Monarch HD Includes:

  • Matrox Monarch HD device
  • Matrox Monarch HD external power supply
  • IEC-C8 power cords (US, GB and EU)

Matrox Monarch HD Features:

  • Record master quality video while streaming
  • Ready to edit and upload with MP4 and MOV
  • Robust and practical design
  • Easily reach your audience
  • Stream and record SDI signals
  • Record to anything
  • Presets and profiles for simple configuration
  • Remote command and control
  • Integrate Matrox Monarch HD into your own application or environment
  • Integrate with Crestron
  • Install in a rack

Matrox Monarch HD Specifications:

  • HDMI Video Input:
    • Progressive:
      • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
      • 1280x720@ 60/59.94/50 Frames per second
    • Interlaced: 1920x1080i 29.97/25 frames per second
    • Video Input Format is Auto-Detected
  • HDMI Video Output: Preview output of video input signal. 2 Frame delay from input to output
  • Audio Input:
    • Processes first two channels of audio embedded in HDMI input signal
    • Unbalanced analog stereo input via 1/8” (3.5mm) jack
    • Line Level
  • Audio Output:
    • Passthrough of all embedded audio channels in HDMI signal
    • Unbalanced analog stereo output via 1/8” (3.5mm) jack – passthrough of input
    • Line Level
  • Resolutions: 128x128 to 1920x1080
  • 2 x USB 2.0
  • 1 x SD card Slot
  • Dimensions:
    • 5.60" long (14.2 cm)
    • 4.30" deep (10.9 cm) excluding inserted SD-CARD
    • 4.40" deep (11.2 cm) including inserted SD-CARD
    • 1.22" (3.1 cm) high including rubber feet
  • Weight: 0.66 lbs (300 grams) excluding power supply
  • Operating conditions: 32° to 104°F (0° to 40°C), 20 to 80% relative humidity (non-condensing)
  • Power:
    • Line Voltage: 100-240V AC, 0.5A
    • Frequency: 50-60 Hz
    • Input: External AC/DC adapter - IEC320-C8
    • Output: +5VDC, 3A max
    • Total power consumption: 15 Watts
    • DIN4 Locking Power Connector
  • Transport and Storage:
    • Max Operating Altitude: 3000 meters
    • Max Transport altitude: 12,000 meters
    • Storage Humidity 5 to 95% relative humidity (non-condensing)
  • Regulatory:
    • FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI
    • RoHS Directive 2002/95/EC
  • Warranty: 2 years with free telephone support
