Neutrik NCJ6FA-V XLRF 1/4" TRS Combo Jack with Vertical PCB Mount

OUR PART #: NCJ6FA-V MFR #: NCJ6FA-V

Copied to clipboard

Neutrik's NCJ6FA-V is a 3-pole XLR female receptacle with a 1/4" stereo jack and vertical PCB mount. ...Read more

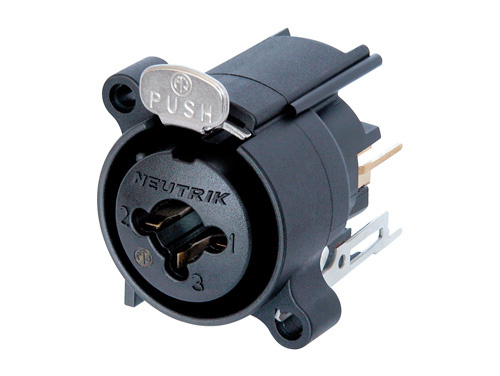

Neutrik NCJ6FA-V XLRF 1/4" TRS Combo Jack With Vertical PCB Mount Image 1
Neutrik NCJ6FA-V XLRF 1/4" TRS Combo Jack With Vertical PCB Mount
Our Price: $1.91
List Price: $2.23
You save 14%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$1/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Neutrik's NCJ6FA-V is a 3-pole XLR female receptacle with a 1/4" stereo jack and vertical PCB mount. This XLR/jack hybrid chassis connector combines a 3-pole XLR receptacle and 1/4" jack in the smallest available XLR housing.

Neutrik NCJ6FA-V Features:

  • Combined 3-pole XLR receptacle and 1/4" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
  • Dramatic space saving - 15% over the predecessor combo
  • Two connectors in one housing - substantial cost, material and labor saving
  • Very low conductor capacitance - great for digital audio
  • Front panel cut-out compatible with Neutrik's XLR A Series
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NCJ6FA-V Specifications:

  • Connector Type: Combo
  • Gender: female
  • Electrical Specifications:
    • Contact resistance: < 10 mOhms (XLR & jack)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhms (initial)
    • Insulation resistance: > 0.5 GOhm (after damp heat test)
    • Rated current per contact: 3 A (XLR)
    • Rated current per contact: 3 A (Jack)
    • Rated voltage: < 50 V
    • Grounding options: Separate ground contact to mating connector shell and front panel
  • Mechanical Specifications:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Panel thickness: max. 3 mm (0.12")
    • Wiring: Vertical PCB mount
    • Locking device: latch lock
    • Mounting direction: Rear mounting
    • Mounting screw: A-screw
  • Material Specifications:
    • Contact plating: 0.2 µm AuCo (XLR), 2 µm Ag (Jack RS)
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6.6 30% GR)
    • Locking element: Steel Ck67
  • Environmental Specifications:
    • Flammability: UL 94 HB
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
