Kramer WP-580T-BLACK
Black Wall Plate, HDMI over HDBaseT Transmitter

OUR PART #:  WP-580T-BLACK

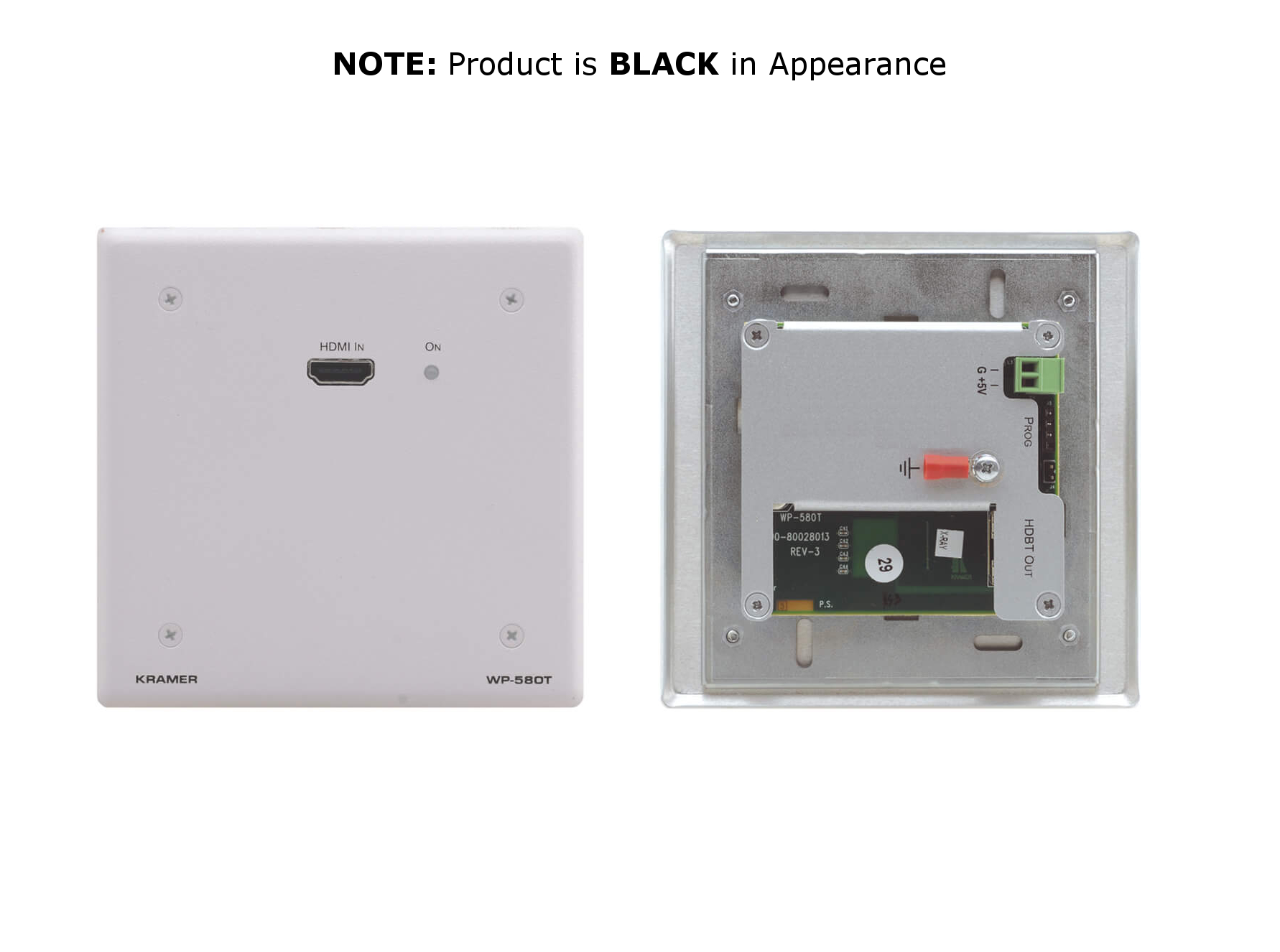

The Kramer WP-580T is a high-performance, HDBaseT twisted pair wall plate transmitter for HDMI signals.
Learn More
Our Price: $232.00
List Price: $290.00
You save 20%!
Write the first review.
Kramer WP-580T-BLACK
Qty:
In Stock

Related Products

The Kramer WP-580T is a high-performance, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP-580T inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP-580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

https://k.kramerav.com/images/diagrams/wp-580t_wp-580r.jpg

Kramer WP-580T Features:

  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • HDTV Compatible
  • HDCP Compliance
  • HDBaseT™ Technology
  • HDMI Support: Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC
  • 3D Pass–Through
  • EDID PassThru: Passes EDID signals between the source and display
  • 2K & 4K Support
  • System Range: Up to 230ft (70m)
  • Cable: For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges
  • Indicators: Status LEDs for input, output, link and power

Kramer WP-580T Specifications:

  • Inputs: 1 HDMI connector
  • Outputs: 1 HDBaseT twisted pair RJ–45 connector
  • Bandwidth: 10.2Gbps (3.4Gbps per graphic channel)
  • RS-232 Baud Rate: 115200
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Power Consumption: 5V DC, 360mA
  • Included Accessories: Power supply
  • Product Dimensions (WxDxH): 4.50" x 1.10" x 4.50"(11.43 x 2.80 x 11.43cm)
  • Product Weight: 0.4lbs (0.2kg) approx
  • Shipping Dimensions (WxDxH): 9.13" x 5.35" x 3.94"(23.20 x 13.60 x 10.00cm)
  • Shipping Weight: 1.5lbs (0.7kg) approx
