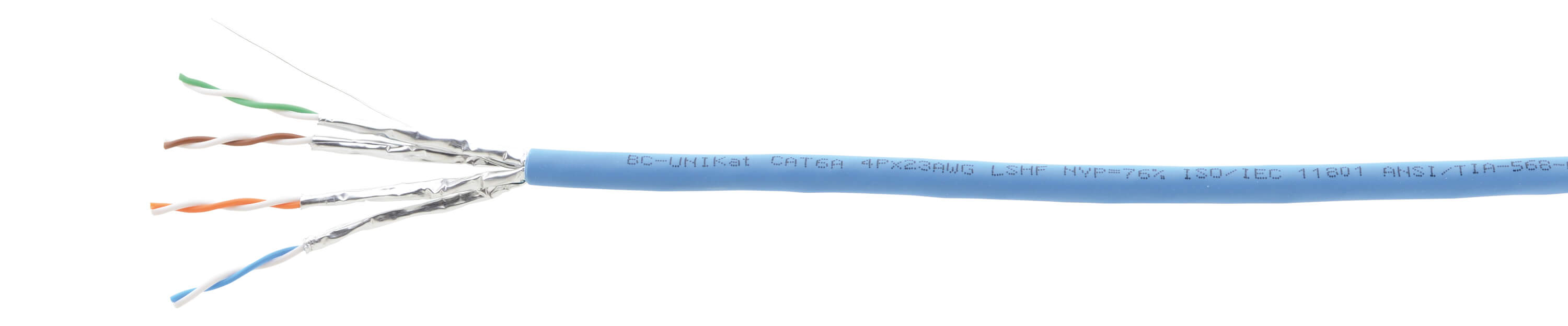

Kramer BC-UNIKat
CAT6a U/FTP Video & LAN Cable, Low Smoke & Halogen Free, Priced by the Foot

OUR PART #:  BC-UNIKat/LSHF-FOOT

Kramer's BC-UNIKat cable is a unified CAT6a cable that handles all the latest technology signals.
Learn More
Our Price: $0.28
List Price: $0.33
You save 15%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer BC-UNIKat
Qty:
Similar Products

Kramer's BC-UNIKat cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer’s DGKat™ technology, 4K UHD HDBaseT™ technology or LAN applications and ensures optimum signal performance.

Kramer BC-UNIKat CAT6a Video & LAN Cable Features:

  • Quality Construction: Four shielded twisted pairs (U/FTP) of 23 AWG solid copper conductors are cabled together in an unshielded outer jacket
  • Optimized for Kramer Hardware: Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (sold separately). Terminate with shielded transmitter-receiver sets (DGKat™ and HDBaseT) and shielded RJ-45 connectors
  • HTBaseT Recommended
  • RJ-45 Connector: The larger diameter 23 AWG twisted pair cable requires a special RJ-45 connector

Kramer BC-UNIKat CAT6a Video & LAN Cable Specifications:

  • Construction Specifications:
    • Conductors: Eight 23AWG, annealed copper
    • Outer Diameter: 0.56 ± 0.01 mm (0.022")
    • Insulation Material: Skin/foam/skin HDPE
    • Color: Per TIA/EIA 568-B
    • Screening: Alu/PET per pair (Alu side out)
    • Drain Wire: 90% tinned copper, outer diameter: 0.4 ± 0.01 mm (0.016")
    • Jacket: LSHF, blue RAL5012
  • Thickness: = 0.5 mm (0.020")
  • Diameter: 7.2 ± 0.2 mm (0.284")
  • Physical Specifications:
    • Maximum Pulling Tension: 100N
    • Bending Radius: Installation 60 mm (2.36"), installed 50 mm (1.97")
    • Thermal Characteristics: Storage/transport/installation 0°C to 50°C (32°F to 122°F), operation 20°C to 60°C (–4°F to 140ºF)
  • Regulatory Specifications:
    • Electrical: EIA/TIA 568A, ISO/IEC 11801
    • Fire Performance: IEC 60332–1
    • Smoke Density: IEC 61034
    • Halogen Free: IEC 60754
  • Electrical Specifications:
    • Impedance: 1-100MHz : 100 ± 15 Ohms
    • Impedance: 100-250MHz : 100 ± 20 Ohms
    • Impedance: 250-500MHz : 100 ± 50 Ohms
    • Propagation Velocity: 76%
    • Mutual Pair Capacitance: = 42pF/m
    • Capacitance Unbalanced Pair/Ground: = 1500pF/km
    • Max. Conductor DC Resistance: < 79.8 Ohms/km
    • Pair Resistance Unbalance: DC < 1.5%
    • Dielectric Strength: 2.5kV DC (2s)
    • Insulation Resistance: > 5000 MOhms/km
    • Voltage Rating: 30V
