Premium Gold Flat Patch Cable, 28 cm

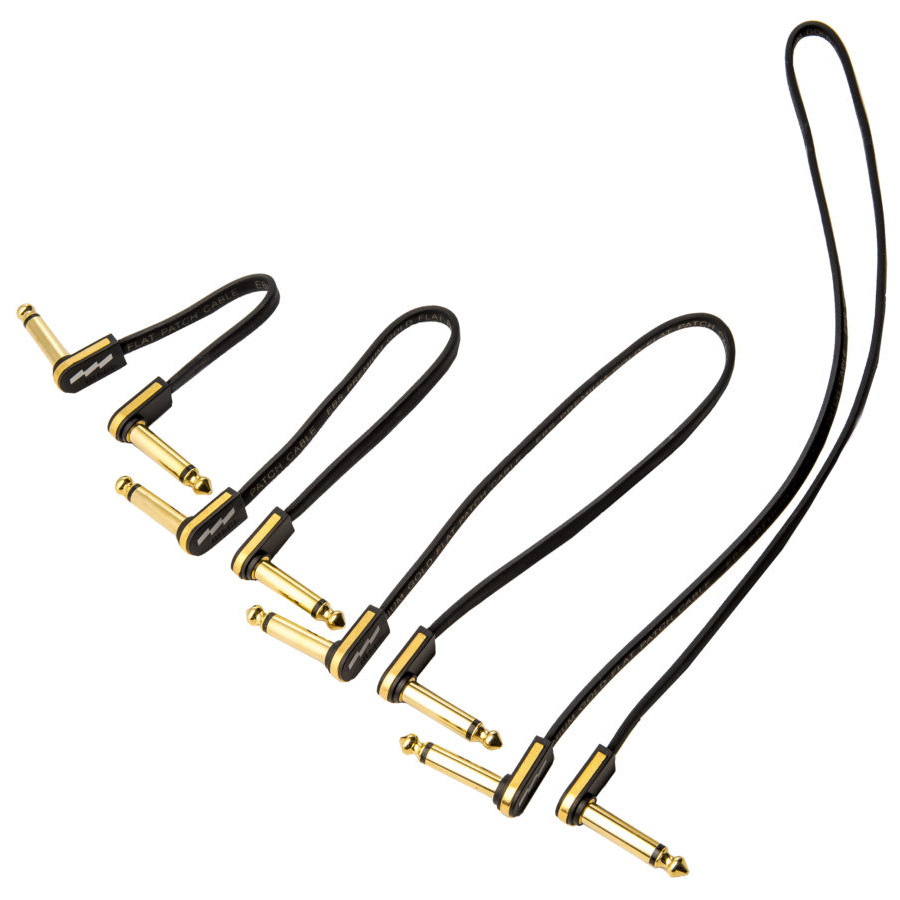

NOTE: The image above shows four different lengths of the EBS Premium Gold Flat Patch Cable. This model is the  28 cm version only.
Learn More
Our Price: $11.95

5.0 / 5

★★★★★ 1 Review. Write Yours

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Similar Products

NOTE: The image above shows four different lengths of the EBS Premium Gold Flat Patch Cable. This model is the 28 cm version only.

EBS Premium Gold Flat Patch Cables feature contact housing made of 24 carat gold plated die cast welded zinc, as well as 24 carat gold plated 1/4" contacts. These ultra compact and double shielded flat patch cables offer very low resistance and capacitance to keep your sound uncolored without signal loss.

EBS Premium Gold Flat Patch Cable Features:

  • Die cast welded zinc contact housing
  • Gold plated connectors and housing
  • Copper conductors
  • Super compact angled contacts
  • Extremely well shielded
  • Very low resistance

EBS Premium Gold Flat Patch Cable Specifications:

  • Contact House: 24 carat gold plated
  • Double Shield: Conductive PVC and copper shield protect effectively from both LF and HF interferences
  • Conductor: Flexible copper conductor low voltage audio signal system
  • Operating Temperature: -15ºC to +70°C
  • Outer Insulation: PVC (Polyvinyl Chloride)
  • Signal Copper Cores: 20 x 0.12 mm
  • Signal Insulation: PE (polyethylene)
  • Twisted Copper Shield: 45 x 0.12 mm
  • Capacitance Cond./Shield: < 10 pF/decimeters
  • Conductor Resistance: < 10 mOhm/decimeters
  • Dimensions: 5.3 x 2.5 mm (rectangular cable), 22.0 x 11.5 x 5.0 mm (contact house)
