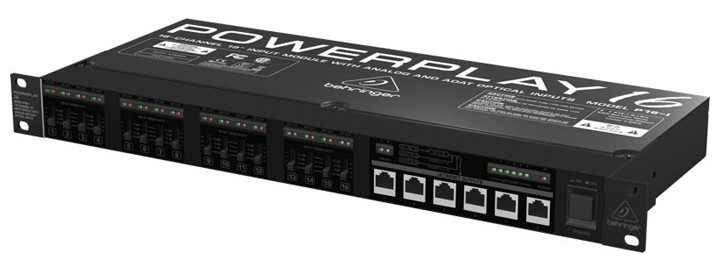

Behringer P16-I [USED ITEM]
16-Channel Interface Module with Analog and ADAT Optical Inputs

OUR PART #:  P16-I-RST-09

NOTE: This is a USED item that may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $163.29
List Price: $299.99
You save 46%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Behringer P16-I [USED ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a USED item that may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Behringer's P16-I audio interface module works in conjunction with the P16-M personal mixers. A basic installation consists of one P16-I Input Module, which connects to the main mixing console, and up to six P16-M Personal Mixers, creating a system big enough to equip a typical recording studio, a small to medium-sized band, or a worship team. You’ll also need a few standard audio and CAT5 cables. The optional P16- MB mounting bracket allows the P16-M Digital Personal Mixer to be attached to any standard microphone, music or drum stand. The system can easily be expanded via the P16-D Digital ULTRANET Distributor, six of which can be combined to drive up to forty-eight P16-M Personal Mixers.

Behringer P16-I Features:

  • Converts 16 analog inputs into 24-bit digital audio to be transmitted via standard CAT5e cable
  • 2 x 8-channel ADAT optical inputs with auto detect and priority select
  • 16 balanced, high-headroom TRS audio inputs
  • State-of-the-art 24-bit A/D converters for premium audio quality
  • 4-position gain switches per channel pair (-10, 0, +4, +22 dB)
  • Digital inputs support 44.1 and 48 kHz sample rates
  • Ultra-low system latency of less than 1 millisecond
  • Signal Present and Clip LEDs per channel plus ADAT status LEDs
  • Standard CAT5e connection delivers power and signals for up to 6 Personal Mixers
  • ULTRANET expansion network connector (RJ45)
  • Internal auto range power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • Extremely rugged construction ensures long life even under the most demanding conditions

Behringer P16-I Specifications:

  • Analog Inputs:
    • Inputs: 16 x 1/4" TRS, balanced, line-level
    • Input level: +4 dBu optimal, +22 dBu maximum
    • Input gain: -10 dBV / 0 dBu / +4 dBu / +22 dBu, adjustable
    • Gain selector: 4-position switch (per channel)
  • Digital Inputs:
    • Optical inputs: 2 x standard TOS-link optical connector
    • Input format: ADAT, 16 / 20 / 24-bit 48 kHz (standard)/ 44.1 kHz
    • 8 channels per ADAT connection
    • Synchronization: From ADAT input A only (external clock)
    • Indicators: 2 x LED's
    • Input selection: Auto select for channels 1 – 8 / 9 – 16
  • Digital Outputs: Ultranet x6 (RJ45)
  • Power Supply / Voltage (Fuses):
    • USA / Canada: 120 V~, 60 Hz (T 1 A H 250 V)
    • UK / Australia / Europe: 220-240 V~, 50/60 Hz (T 1 A H 250 V)
    • Korea / China: 220-240 V~, 50/60 Hz (T 1 A H 250 V)
    • Japan: 100 V~, 50/60 Hz (T 1 A H 250 V)
  • Power consumption: Max. 40 W
  • Mains connection: Standard IEC receptacle
  • Dimensions (HxWxD): Approx. 1.7" x 19" x 7.5" (appr. 44 x 482 x 190 mm (1RU))
  • Weight: Approx. 4.6 lbs (2.1 kg)
  • A/D conversion:
    • 24-bit
    • 48 kHz (standard for analog in)
    • 44.1 kHz (if ADAT 44.1 kHz)
    • Converter type: 24-bit, delta-sigma
  • System:
    • Signal: 16 channels, plus bus-power for P16-M
    • Latency: <0.9 ms (from P16-I to P16-M)
    • Frequency response: 20 Hz - 20 kHz (+0 / -3 dB)
    • Dynamic range: Typical 92 d
  • Cabling:
    • Connectors: RJ45
    • Cables: Shielded CAT5
    • Cable length: Max. 246 ft (75 m) recommended
