JBL Control 16C/T [USED ITEM]
6.5" 2-Way White Ceiling Speaker

OUR PART #:  CONTROL-16C/T-RST-01

NOTE: This is a USED item that may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $90.40
List Price: $149.50
You save 40%!
Write the first review.

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 16C/T [USED ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a USED item that may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

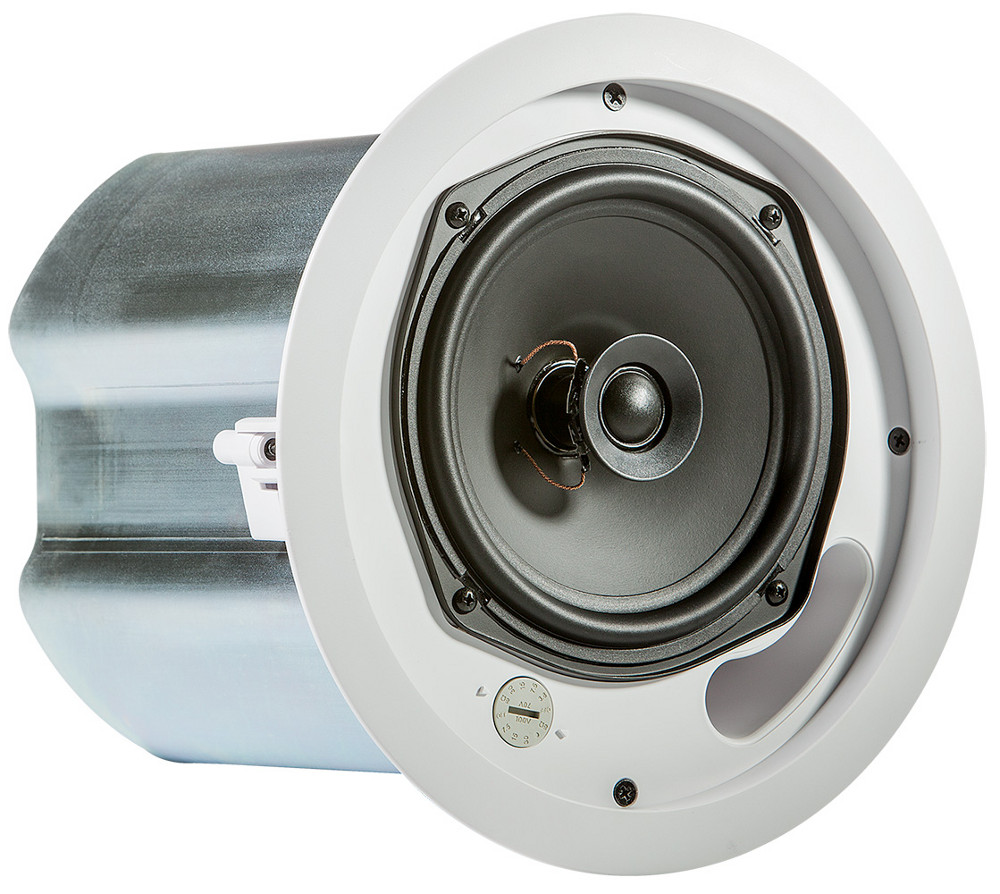

JBL's Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

JBL Control 16C/T Includes:

  • C-ring support backing plate
  • 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans)
  • Cutout template
  • Paint shield
  • Removable locking multi-pin connector
  • Grille

JBL Control 16C/T Features:

  • Components:
    • 165 mm (6.5") high output driver with polypropylene cone and butyl rubber surround
    • 19 mm (0.75") soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    • 50 Watts at 8 Ohms nominal setting
    • 30W multi-tap at 70V/100V
  • 62 Hz – 20 kHz bandwidth with wide 110° coverage
  • High 91 dB sensitivity for high maximum SPL

JBL Control 16C/T Specifications:

  • Frequency Range (-10 dB): 62 Hz – 20 kHz
  • Power Capacity (at low-Z): 100 Watts Continuous Program Power, 50 Watts Continuous Pink Noise
  • Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V(plus 3.8 W @ 70V only)
  • Frequency Response (±3 dB): 96 Hz – 15 kHz
  • Nominal Sensitivity: 91 dB
  • Nominal Coverage Angle: 110° conical coverage
  • Directivity Factor (Q): 7.8
  • Directivity Index (DI): 8.2 dB
  • Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average,116 dB peak
  • Nominal Impedance: 8 ohms (in direct/bypass 8 Ohm setting)
  • Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
  • LF Driver: 165 mm (6.5") with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
  • HF Driver: 19 mm (3/4"), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
  • Input Connector: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
  • Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, SignalingSpeaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions: 253 mm diameter x 225 mm depth from back of baffle (10" diameter x 8.8" depth)
  • Ceiling Cutout Size: Circular cutout with 170 mm (6.7") diameter (cardboard cutout template included)
  • Ceiling Thickness Range: Up to 38 mm (1.5") with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm(2.4") ceiling thicknesses
  • Safety Seismic Attachment: One point, top surface
  • Net Weight: 3.4 kg (7.4 lbs, one speaker)
  • Shipping Weight: 11.2 kg (24.7 lbs, pair inmaster carton)
