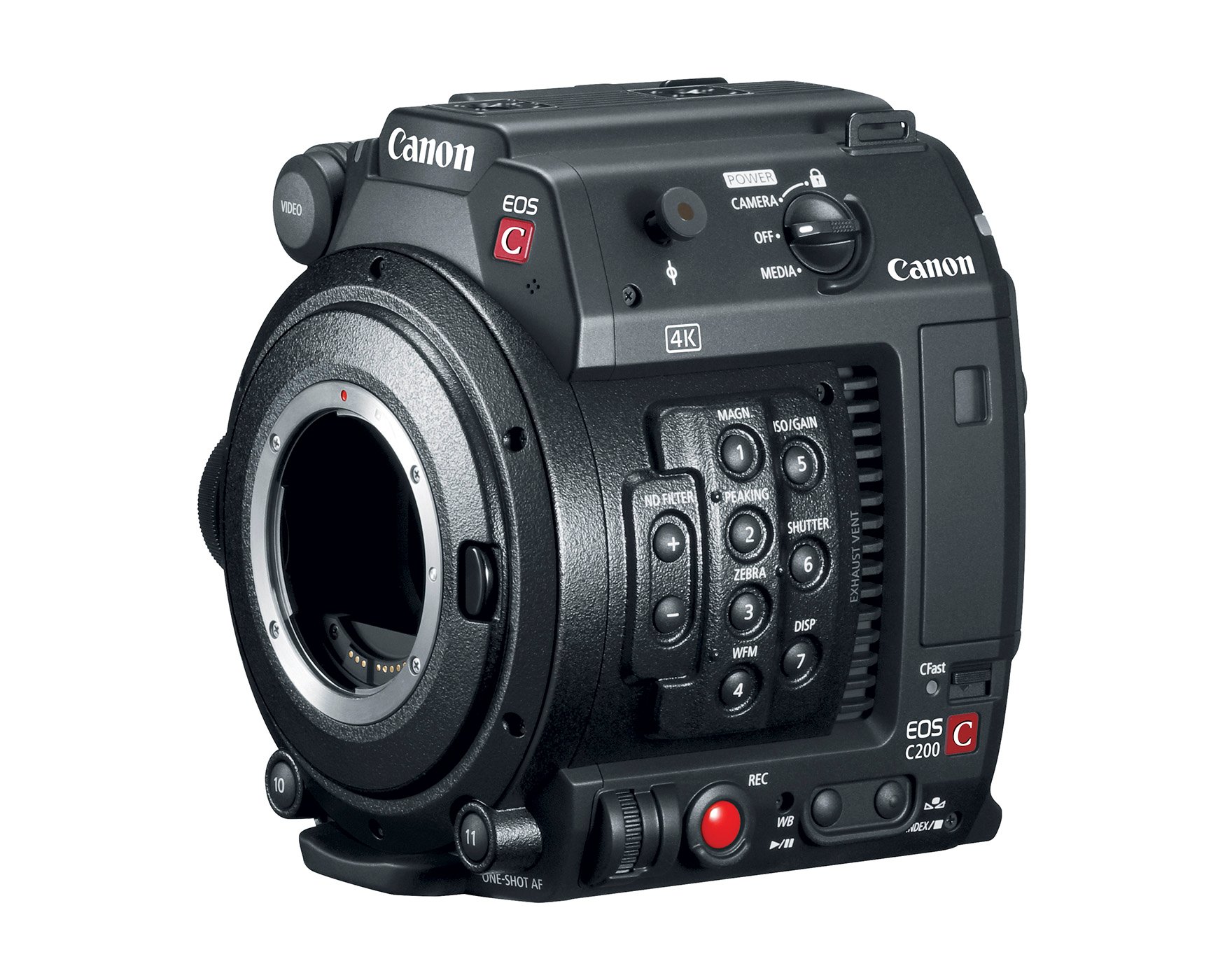

Canon EOS C200B 4K Cinema Camera with 8.85 Megapixel Super 35mm CMOS Sensor, Body Only

The Canon EOS C200B Digital Cinema Camera is a “ready-to-go” production camera that comes with a built-in electronic viewfinder and an array of accessories including a 4-inch touch screen LCD monitor, a versatile handle and ergonomic handgrip. The camera can record internal 4K RAW to a CFast™ 2.0 card in Canon's new Cinema RAW Light format without compromising detail, as well as 4K UHD and Full HD in MP4 format to SD cards. The EOS C200B comes as a standalone camera body, excluding the built-in electronic viewfinder, LCD monitor, handle and handgrip. This allows the user the flexibility to customize the camera with a wide range of accessories to fit their specific needs. The EOS C200B's small form factor allows it to be used in tighter spaces, and more easily attached to a gimbal or drone.

The 8.85 Megapixel Super 35mm CMOS sensor, 13 stops of dynamic range, Dual Pixel CMOS AF, full compatibility with Canon EF-mount lenses, and HDR capability help make the EOS C200B ideal for film, documentary and television production, corporate and event videography, and newsgathering. The camera’s multitude of features help deliver outstanding image quality, performance and versatility.

Canon EOS C200B Features:

• New Cinema RAW Light
• 8.85 Megapixel Super 35mm CMOS Sensor
• Dual DiG!C DV 6 Image Processors
• High Dynamic Range – 13-stops
• Wide DR Gamma, Canon Log and Canon Log 3
• ISO Range of 100 to 102,400 Supported
• Internal 4K RAW Recording to CFast™ 2.0 Card
• Internal 4K UHD/Full HD Recording to SD Cards
• Fully Compatible with Canon EF-Mount Lenses
• Dual Pixel CMOS AF
• Built-in Viewfinder, Touch Screen LCD Monitor, Camera Grip and Handle Unit (EOS C200 Only)
• Professional 4K/2K Workflow
• Full HD 120P/100P Slow-Motion Recording
• High Sensitivity and Low Noise
• ACES 1.0 Support*
• HDR Support
• Wireless Remote Control Support
• NOTE

Canon EOS C200B Specifications:

• Image Sensing Device:Sensor:
  • CMOS Sensor (single-panel) equivalent to Super 35mm
  • Total Pixels: Approx. 9.84 megapixels (4206 x 2340)
  • Number of Effective Pixels:
  • Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
  • Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
  • Filter: RGB primary color filter (Bayer array)
• Lens Mount: Canon EF mount
• Exposure Mode:
  • (1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting
  • (2) Push auto iris control, auto iris control (light metering system selection/AE shift possible)
    • Shutter Setting: Speed, Angle, Clear Scan, Slow, or Off mode selected
    • Either 1/3 or 1/4 steps selected as speed increment
  • Iris Setting:
    • (1) Manual setting in 1/2-step increments, 1/3-step increments or fine possible
    • (2) Push auto IRIS control*
    • (3) Auto IRIS control*
  • *Lenses that support Auto Iris:
• EF lenses:
  • EF-S 10–18mm f/4.5–5.6 IS STM
  • EF-S 18¬–55mm f/3.5–5.6 IS STM
  • EF-S 18–135mm f/3.5–5.6 IS STM
  • EF-S 55–250mm f/4–5.6 IS STM
  • EF-S 18–135mm f/3.5–5.6 IS USM
  • EF 24–105mm f/3.5–5.6 IS STM
• Cinema lenses:
  • CN 7x17 KAS S/E1
  • CN 20x50 IAS H/E1
  • CN-E 18¬–80mm T4.4 L IS KAS S
  • CN-E 70–200mm T4.4 L IS KAS S
• ISO Speed Setting:
  • 1 step, 1/3 step settings
  • [*100 - 160 - 25600 - *102400]
  • NOTE: *When the sensitivity is expanded
• Gain Setting:
  • Normal [*-6dB - -2dB - 42dB - *54dB]
  • Fine: Setting in 0.5 dB step increments possible
  • NOTE: *When the sensitivity is expanded
• ND Filter:
  • 5 density settings (2, 4, 6, 8*, 10* stops)
  • NOTE: *When expansion is selected
• Motorized drive
• Focus Control:
  • Dual Pixel CMOS AF supported, Manual Focus, One-Shot AF, Continuous AF, AF-Boosted MF, Face Detection AF (only lenses that support AF functions can be used in any of these modes), Focus Guide
• Viewfinder:
  • 0.46" (1.18 cm on the diagonal), color wide-screen organic EL display
  • Approx. 1,770,000 dots (854 x RGB x 480), 100% field of viewratio
• White Balance:
  • AWB, Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC), Daylight, Tungsten, Set A, Set B)
• Frame Rate:
  • (1) 59.94 Hz mode (59.94P/29.97P/23.98P)
  • (2) 50.00 Hz mode (50.00P/25.00P)
  • (3) 24.00 Hz mode (24.00P)
• Dynamic Range:
  • Canon Log 3: 1600% (ISO 800 or above)
  • Canon Log/Wide DR: 800% (ISO 400 or above)
• Video Formats:
  • RAW: Video:
    • Codec: Cinema RAW Light
    • Resolution: 4096 x 2160
    • Bit Depth: 10 bit (59.94P/50.00P), 12 bit(29.97P/23.98P/25.00P/24.00P)
    • Bit Rate: 1 Gbps
    • Audio: Linear PCM: 16 bit / 48 kHz / 4 channels
  • MP4: Video:
    • Codec: MPEG-4 AVC/H.264
    • Resolution: 3840 x 2160 / 1920 x 1080
    • Bit Rate: 150 Mbps (3840 x 2160), 35 Mbps (1920x 1080)
    • Color Sampling: YCC420 8 bit
  • MP4 (Proxy): Video:
    • Resolution: 2048 x 1080
    • Bit Rate: 35 Mbps
    • Color Sampling: YCC420 8 bit
  • Audio: MPEG-4 AAC-LC (16 bit / 48 kHz / 2 channels), Linear PCM (16 bit / 48 kHz / 4 channels)
• Recording Media:
  • Time Code:
    • Drop frame* or non-drop frame
    • Rec run, free run, regeneration
    • NOTE: *In 59.94P/29.97P mode only
  • (1) CFast™ card (1 slot): RAW movies
  • (2) SD card (2 slots): Recording of MP4 movies, photos (JPEG), custom pictures, menus and other data possible
• Rec Mode (MP4 Recording): Slow motion recording,pre-recording, frame recording, interval recording
• Other Recording Functions: Relay recording, doubleslot recording
  • Others: Custom picture setting, black balance adjustments, color bars, peaking display, zebra display, My Menu setting, fan, waveform monitor display, assignable buttons (1-17), key lock, marker display, enlarged display, custom display, peripheral illumination correction, GPS support (GP-E2), monaural microphone, and other functions
• Playback:
  • Playback Operations: Normal playback, fast forward (at speeds of ×5, ×15, ×60), fast reverse (at speeds of ×5, ×15, ×60), frame forward, frame reverse, rec review
  • Clip Display: 3x4 (clip) index screen (RAW/MP4/Photo)
• Terminals:
  • Input only: REMOTE terminal, MIC jack, INPUT terminals (2 sets)
  • Output only: SDI terminal, HDMI OUT terminal, headphones jack, USB terminal, VIDEO terminal
  • Input/Output Control: Ethernet terminal
• Power Supply:
  • 14.4 V DC (battery pack), 16.7 V DC (DC-IN)
• Image Processing Platform:
  • Dual DiG!C DV 6
• Related Accessories:
  • Battery Pack (BP-A30/BP-A60)
  • Battery Charger (CG-A10/ CG-A20*)
  • LCD Monitor (LM-V1)*
  • LCD Attachment Unit (LA-V1)*
  • Clamp Base (CL-V2)*
  • Camera Grip (GR-V1)*
  • Handle Unit (HDU-2)*
  • OLED Electronic View Finder (EVF-V70)
  • Shoulder Support Unit (SU-15)
  • 8-pin Remote Cable (RR-10/RR-100)
  • Rod Clamp (RD-1)
  • AC Adapter (CA-A10)
  • Compact Power Adapter (CA-CP200B)
  • Unit Cable (UN-5/UN-10)
  • Remote Controller (RC-V100)
  • GPS Receiver (GP-E2)
  • Shoulder Strap (SS-1200)
  • Tripod Adapter (TA-100)
  • Tripod Base (TB-1)
  • EF lens groups, EF cinema lens groups
  • Accessories designed for the EF lens group and EF cinema lens group
  • *Indicates new accessories
• Dimensions (WxHxD) (excluding cable,belt, etc.):
  • Approx. 5.7" x 5.7" x 5.4" (144 x 146 x 137mm)
  • Approx. 6.7" x 8.2" x 5.4" (169 x 209 x 137mm) [With mic holder unit attached]
  • Weight: Approx. 2.9 lb. (1335g)

Note

NOTE: Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.
