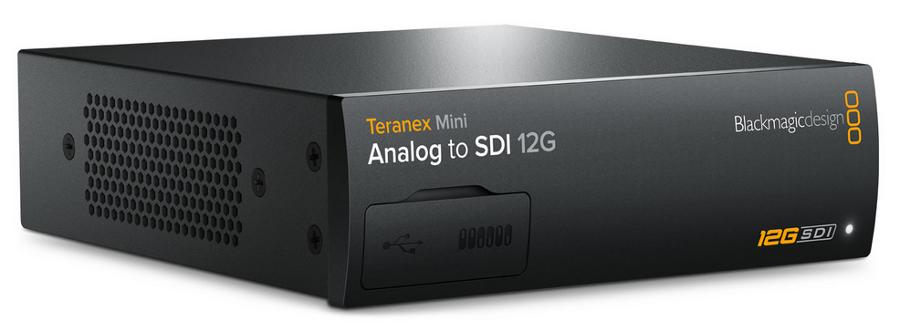

Blackmagic Design Teranex Mini - Analog to SDI 12G [RESTOCK ITEM]
Analog Video to 12G-SDI Mini Converter

OUR PART #:  CONVNTRM/BB/A-RST-01

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $411.05
List Price: $495.00
You save 17%!
Be the first to review.
Blackmagic Design Teranex Mini - Analog to SDI 12G [RESTOCK ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The Teranex Mini - Analog to SDI 12G from Blackmagic Design is one of their next generation mini converters featuring 12G optical fiber and 12G-SDI, which supports all SD, HD and Ultra HD formats up to 2160p60. This model converts incoming analog video signals to SD, HD, 6G and 12G-SDI. This makes it ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power.  The Teranex Mini lineup is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen. They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear. You can even use them in editing and color grading suites to drive big screen displays and projectors.

Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems.

The family of Teranex Mini converters include cutting edge, multi rate 12G-SDI technology that’s 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

Another innovative feature to consider is the optional Teranex Mini - Smart Panel that includes a spin knob, color LCD and multiple buttons. This means the user can simply remove the basic front panel from a Teranex Mini and replace it with a Teranex Mini Smart Panel to allow full setup and control from the front panel.

Blackmagic Design Analog to SDI 12G Includes:

  • Teranex Mini - Analog to SDI 12G
  • Software SD Card

Blackmagic Design Analog to SDI 12G Features:

  • Advanced 12G-SDI connections for working with SD, HD and Ultra HD up to 2160p60
  • Professional XLR audio connections with low noise floor when used in analog mode
  • Broadcast quality analog connections
  • Built in power 90V - 240V international power supply for use anywhere in the world
  • Ethernet for remote management and back up power over ethernet (POE)
  • DIP switches and connection diagram for easy setup when Smart Panel is not used
  • Optional front panel with LCD screen and push button controls
  • Elegant, compact, durable design that can be used in racks, on desktops or mounted anywhere
  • Unique crossflow cooling with variable speed fans for quiet, reliable operation
  • Optional rack mount shelf for mounting 3 Teranex Minis side by side in 1RU

Blackmagic Design Teranex Mini - Analog to SDI 12G Specifications:

  • Connections:
    • Analog Video Input: Component SD/HD, NTSC, PAL and S-Video
    • SDI Video Output: User selectable to SD, HD and 12G-SDI
    • Analog Audio Input: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input
    • AES/EBU Audio Input: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for timecode input
    • Multi Rate Support: SDI output switchable between HD for composite and S-Video and Ultra HD for component HD
    • Updates and Configuration: USB or Ethernet
    • Re-Clocking: Yes
  • Standards:
    • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
    • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
    • SDI Color Space: REC 601, REC 709
    • SDI Format Support: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94
    • Analog Format Support: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60
    • Analog Color Space: REC 601, REC 709
    • Analog Color Precision: 4:2:2
  • Software:
    • Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet
    • Internal Software Upgrade: Via included updater application.
  • Settings Control:
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
  • Power Requirements:
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input
    • Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet)
    • Power Consumption: 15 Watts
    • Operational Voltage Range: 90 - 240V AC
  • Physical:
    • Dimensions (H x W x D): 1.75" x 5.51" x 6.69"
    • Weight: 1.41 lbs.
  • Environmental:
    • Operating Temperature: 0°to 40°C (32° to 104°F)
    • Storage Temperature: -20°to 60°C (-4° to 140°F)
    • Relative Humidity: 0% to 90% non-condensing
