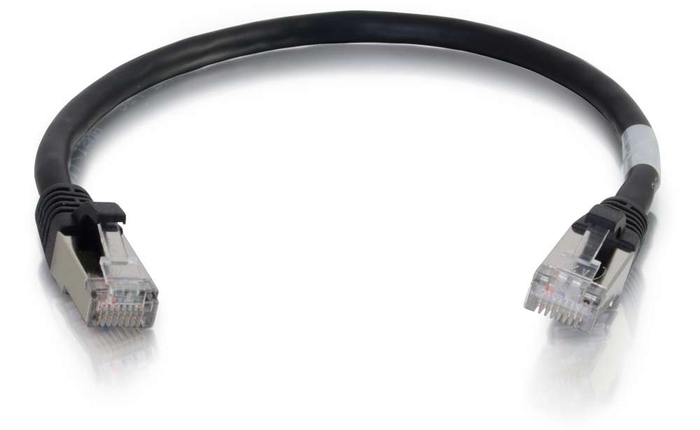

Cables To Go 00824 Cat6 Snagless Shielded (STP) 35 ft Ethernet Network Patch Cable, Black

Protect a high speed network from noise and electromagnetic interference when connecting with C2G's Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable handles bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.

Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Each cable includes an individual length label for ease of use.

Cables to Go Cat6 Snagless Shielded Patch Cable Specifications:

• Part Number: 00824
• Color: Black
• Connector 1: RJ-45 Male
• Connector 2: RJ-45 Male
• Warranty: Lifetime
• Weight: 1.052 lbs
• Length: 35 ft
• Physical Specifications:
  • Cable Type: Stranded SSTP
  • Wiring Scheme: 568B
  • Temperature Rating: 75°C
  • Testing: ANSI/TIA 568 C.2 Cat6 component tested
• Conductors (4 Pair):
  • Conductor type: 26AWG (7/0.16) (bare copper)
  • Insulation: FM-PE
• Overall Cable:
  • Foil shield: Aluminum foil (100% coverage)
  • Braided shield: Copper braid (40% coverage)
  • Jacket: PVC
• Connector:
  • Connector Type: RJ-45 Male
  • Shell: Nickel plated for shielding
  • Housing: Polycarbonate
  • Contacts: 50µm gold plated
  • Hood: Molded Snagless PVC
