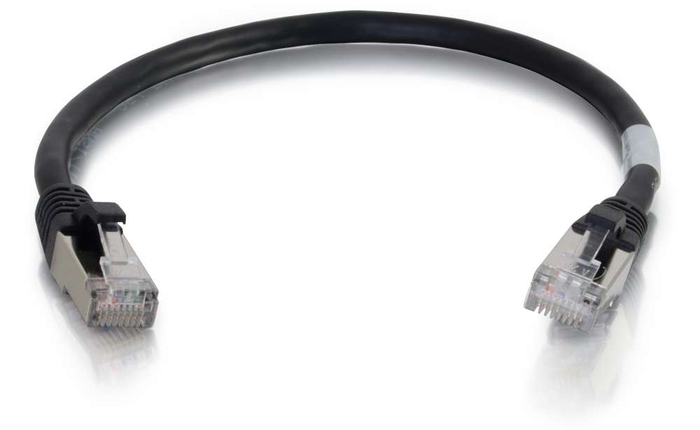

Cables To Go Cat6 Snagless Shielded (STP)
30 ft Ethernet Network Patch Cable, Black

OUR PART #:  00823

Protect a high speed network from noise and electromagnetic interference when connecting with C2G's Snagless Shielded Cat6 patch cable.
Learn More
Our Price: $23.48
List Price: $26.99
You save 13%!
Write the first review.
Cables To Go Cat6 Snagless Shielded (STP)
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Protect a high speed network from noise and electromagnetic interference when connecting with C2G's Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable handles bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.

Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Each cable includes an individual length label for ease of use.

Cables to Go Cat6 Snagless Shielded Patch Cable Specifications:

  • Part Number: 00823
  • Color: Black
  • Connector 1: RJ-45 Male
  • Connector 2: RJ-45 Male
  • Warranty: Lifetime
  • Weight: 0.912 lb
  • Length: 30 ft
  • Physical Specifications:
    • Cable Type: Stranded SSTP
    • Wiring Scheme: 568B
    • Temperature Rating: 75°C
    • Testing: ANSI/TIA 568 C.2 Cat6 component tested
  • Conductors (4 Pair):
    • Conductor type: 26AWG (7/0.16) (bare copper)
    • Insulation: FM-PE
  • Overall Cable:
    • Foil shield: Aluminum foil (100% coverage)
    • Braided shield: Copper braid (40% coverage)
    • Jacket: PVC
  • Connector:
    • Connector Type: RJ-45 Male
    • Shell: Nickel plated for shielding
    • Housing: Polycarbonate
    • Contacts: 50µm gold plated
    • Hood: Molded Snagless PVC
