Liberty AV Solutions 22-2C-PSH-BLK
1000 Foot Reel Audio and Control Wire - 22 AWG One Pair Shilded in Black

OUR PART #:  22-2C-PSH-BLK

This shielded Plenum wire from Liberty AV is the 22-2C-PSH-BLK, a multi-purpose cable that comes in a 1,000 foot length.
Learn More
Our Price: $178.20
List Price: $198.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 22-2C-PSH-BLK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

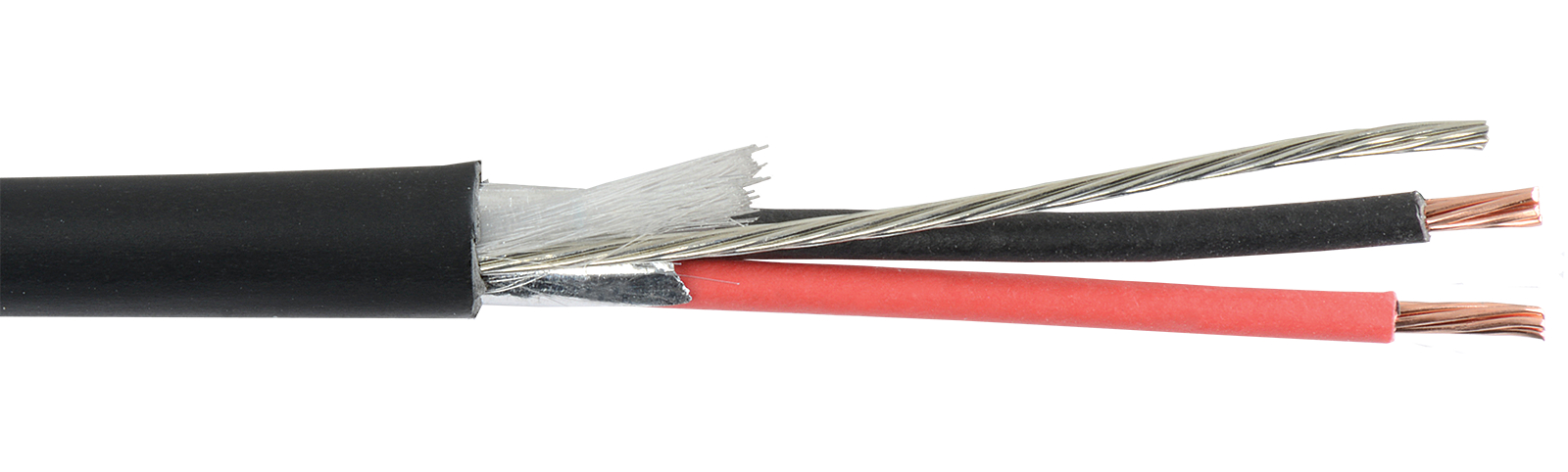

This shielded Plenum wire from Liberty AV is the 22-2C-PSH-BLK, a multi-purpose cable that comes in a 1,000 foot length. This wire is a 2 conductor 22 AWG stranded, twisted, and shielded cable with NEC type CMP and CEC type CMP FT6. This product is manufactured and compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Common applications for this wire include:

  • Line Level, Microphone level Audio runs under 100 feet
  • Balanced and unbalanced Audio formats
  • Infrared (IR), RS-232C signaling

Liberty AV 22-2C-PSH-BLK Features:

  • 7-strand annealed bare copper conductors
  • Plenum rated PVC alloy insulation
  • Twisted, shielded with drain out
  • Plenum rated PVC alloy jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • 1000 foot spools

Liberty AV 22-2C-PSH-BLK Specifications:

  • Conductor:
    • 22 AWG
    • 7-strand annealed bare copper conductors
    • Diameter: 0.029" | 0.73mm
  • Electrical:
    • DC resistance: 16.4 ohm / 1000’ | 53.79 ohm/KM
    • Mutual capacitance: 39.7 pF/FT | 130.22 pF/M
    • Impedance: 47 ohm
    • Velocity of Propagation: 55%
    • Voltage rating: 300V
    • Maximum current: 2.8A @ 25°C
  • Insulation:
    • Plenum rated polyvinyl chloride
    • Wall thickness: 0.008" | 0.20mm
    • Diameter: 0.044" | 1.13mm
  • Regulatory:
    • NEC: CMP 75°C
    • CEC: CMP FT6 60°C
    • EU RoHS-2 2011/65/EU Compliant
  • Color Code
    • Black, Red
  • Packages:
    • Reel: 1000’ | 305M
    • Weight: 13 Lbs/1000’ | 20 Kg/KM
  • Assembly:
    • 2 conductors twisted
    • Lay length: 3.0" | 80mm
    • 4.0 twists per foot | 12.5 twists per meter
  • Installation:
    • Pull Tension: 11 Lbs | 49 N
    • Bend radius: 1.18" | 30mm unloaded
    • Bend radius: 2.36" | 60mm loaded
    • NOTE: Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
  • Construct:
    • Ripcord under jacket
  • Applications:
    • Plenum line level balanced audio
    • Plenum security and low voltage power
    • Shield  100% aluminum/polyester tape foil out
    • 24 AWG 7-strand tinned copper drain
  • Performance:
    • Assuming 600 ohm source impedance:
      • Line level balanced audio 130 feet
  • Jacket:
    • Plenum rated polyvinyl chloride
    • Colors: Natural White
    • Wall thickness: 0.014" | 0.36mm
    • Diameter: 0.118" | 3.00mm
  • Final Outside Diameter (inches):
    • 0.118
