Whirlwind MIP6S
Clear Media Input Plate, Stereo to Mono Line Converter

OUR PART #:  MIP6S

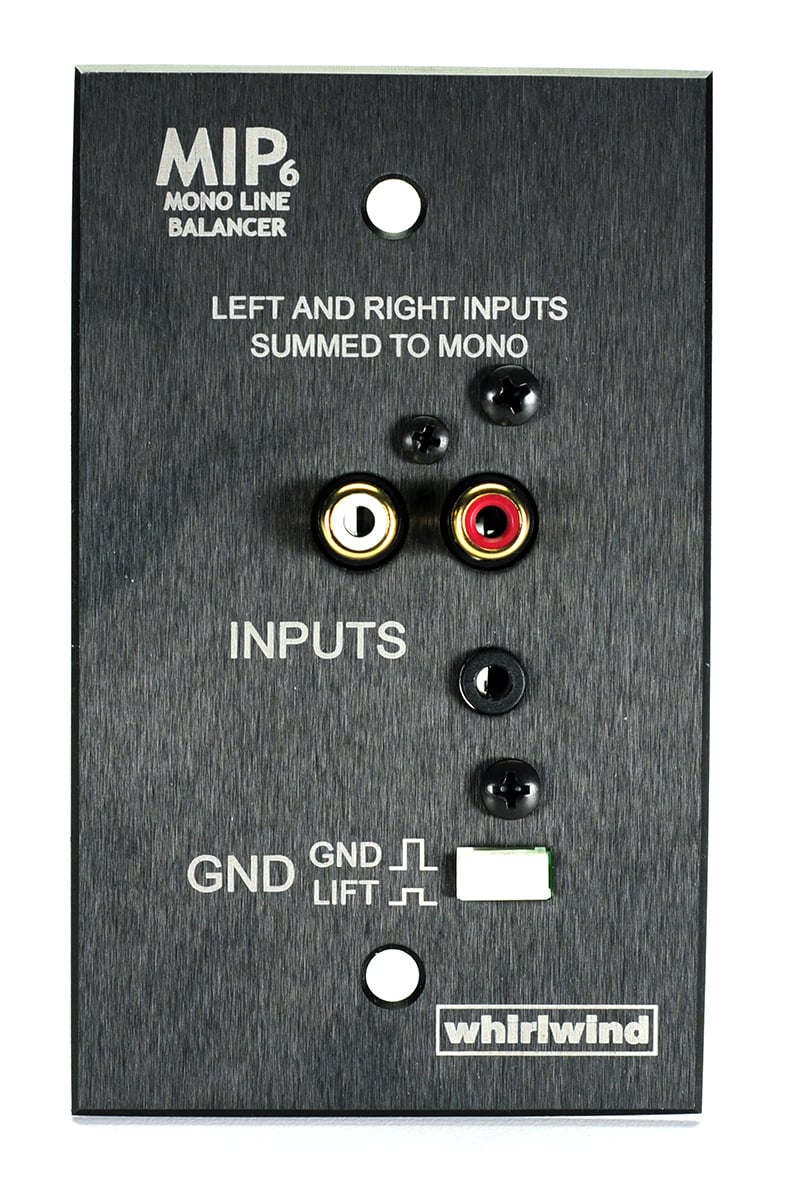

NOTE: The images above show the wall plate in black. Actual product comes in a clear  finish.
Learn More
Our Price: $147.00
List Price: $188.24
You save 22%!
Write the first review.
Whirlwind MIP6S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

NOTE: The images above show the wall plate in black. Actual product comes in a clear  finish.

The Whirlwind MIP6S is a stereo to mono line converter and balancing device. Stereo inputs can be connected to the 3.5mm TRS jack or the left and right RCA jacks. The inputs are permanently summed to mono and balanced with a single 1:1 transformer. A single 3 pin screw terminal plug is provided for output connection. A Ground Lift switch breaks the ground connection between the inputs and the output screw terminal. Insertion loss is approximately 1.7 dB for summed inputs and 7.7 dB for a single mono source, measured into a 2 kOhm load.
