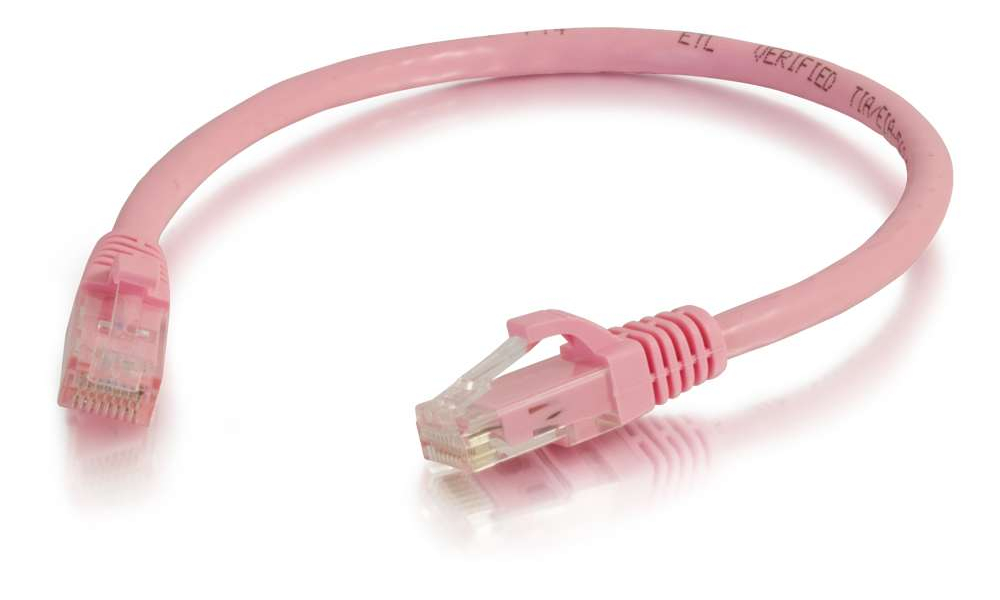

Cables To Go Cat6a Snagless Unshielded (UTP) Patch Cable
Pink Ethernet Network Patch Cable, 1 ft

OUR PART #:  04043

The Snagless Unshielded Cat6a patch cable (model no.
Learn More
Our Price: $3.12
List Price: $5.99
You save 48%!
Write the first review.
Cables To Go Cat6a Snagless Unshielded (UTP) Patch Cable
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Snagless Unshielded Cat6a patch cable (model no. 04043) from Cables To Go is well suited for fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. This Ethernet network cable meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

C2G Cat6a Snagless Unshielded Network Patch Cable Features:

  • Snagless design protects clips when plugging and unplugging
  • Standard RJ45 connectors and unshielded twisted pair wires
  • Suitable for network adapters, hubs, switches, routers, DSL/cable modems, patch panels, and other high performance networking applications

C2G Cat6a Snagless Unshielded Network Patch Cable Specifications:

  • Model Number: 04043
  • Color: Pink
  • Connector 1: (1) RJ-45 Male
  • Connector 2: (1) RJ-45 Male
  • Warranty: Lifetime
  • Weight: 0.046 lb
  • Length: 1 ft
  • Electrical Characteristics:
    • Conductor DC Resistance - 9.38 Ohm / 100m (maximum)
    • Impedance - 100 Ohms
    • Capacitance - 5600pf/100m
    • Propagation Delay - 545ns/100m (maximum)
    • Delay Skew - 45ns/100m (maximum)
  • Physical Characteristics:
    • Wiring Scheme - T568B
    • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
    • Connector: 50 micron gold-plated RJ45
    • Temperature Rating - 60°C
    • Voltage Rating - 30V
    • Approvals - RoHS Compliant
    • Warranty - Lifetime
    • Package Type - Polybag
  • Conductor (Qty. 4 twisted pair):
    • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
    • Insulation - H-D PE
    • Diameter - 0.98 ± 0.05mm
    • Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
  • Connector Type (Qty. 2):
    • Connector Type - 8P8C (RJ45)
    • Gender - Male
    • Connector Material - Polycarbonate
    • Contact Material - Copper Alloy, Gold Plating - 50µm
    • Hood Material - Molded PVC
  • Overall Cable:
    • Jacket - PVC
    • Minimum Average Thickness - 0.60mm
    • Outer Diameter - 6.20 ± 0.30mm
