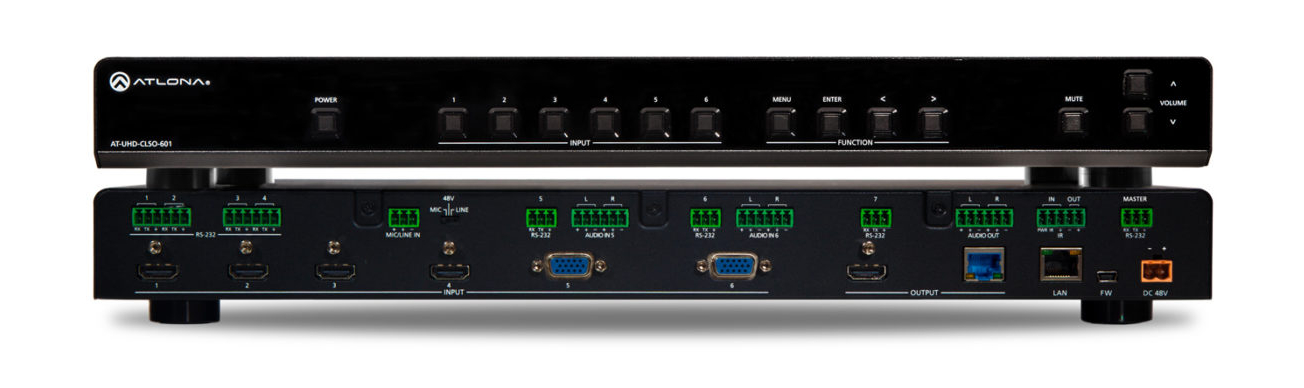

Atlona Technologies AT-UHD-CLSO-601
4K/UHD 6 Input Multi-Format Switcher with HDMI & HDBaseT Outputs

OUR PART #:  AT-UHD-CLSO-601

The Atlona AT-UHD-CLSO-601 is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs.
Learn More

Call for price! Not available online.

Similar Products

The Atlona AT-UHD-CLSO-601 is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It simplifies classroom and small office system integration by providing four HDMI and two multi-function analog inputs. The CLSO-601 is designed to be the central component of an automated AV system. Automatic display control powers the display automatically whenever a source is connected or disconnected. Automatic input selection on the CLSO-601 works by sensing the presence of any video signal.

The CLSO-601 combines the benefits of a scaling switcher with automatic display control and automatic input selection, and the advantages of HDBaseT signal transmission to extend AV, power, control, and Ethernet over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands. The CLSO-601 is ideal for applications where multiple signals with different resolutions must be optimized for a display. Professional audio features such as a microphone input with 48 volt phantom power and ducking are also included, allowing the switcher to address a wide array of AV needs often encountered in classrooms, conference rooms, boardrooms, training rooms, and other presentation settings. In addition to automated input selection, the switcher can be controlled via the Atlona AT-ANC-108D button control panel.

The AT-UHD-CLSO-601 is part of the Atlona CLSO Series of multi-format switchers and matrix switchers for presentation AV systems. The CLSO Series features built-in HDBaseT extension, plus powerful control and audio system integration features. The AT-UHD-CLSO-601 features an HDBaseT output and is compatible with Atlona UHD-EX Series receivers. This switcher can also conveniently be controlled by the ANC-108D button control panel.

Applications for the Atlona AT-UHD-CLSO-601 include:

  • Complete system applications – The CLSO-601 providesa comprehensive yet value-oriented AV integration solution for classrooms,huddle rooms, small conference rooms, and other presentation spaces.
  • Conference rooms and meeting rooms – The CLSO-601conveniently provides automatic switching and display control for simplifieduser operation, especially when laptops are brought into the system.
  • Presentation spaces where two displays are needed – This switcher can beinstalled in a lectern to serve a confidence monitor, plus the primary displayin a remote location.

Atlona AT-UHD-CLSO-601 includes:

  • 1 x AT-UHD-CLSO-601
  • 16 x Female Captive Screw Connector:
    • 6 pin: audio (x3)
    • 5 pin: IR (x1)
    • 3 pin: RS-232 (x8)
    • 3 pin: MIC/Line (x1)
    • 2 pin: power (x1)
  • 1 x 48V/3.125A DC power supply adaptor
  • 1 x Pair of dual purpose wall/rack mounts
  • 1 x IR Remote Control
  • 1 x User manual

Atlona AT-UHD-CLSO-601 Features:

  • Four HDMI inputs:
    • Digital inputs to support up to four DVI, HDMI and Display Port Sources
    • Works with PCs, Blu-ray players, document cameras, teleconference systems, wireless solutions with industry standard digital audio/video outputs
  • Two multi-function analog inputs on 15-pin HD connectors:
    • Accepts RGBHV, component, S-video, or composite signals using common adaptors and break out cables
    • Provides input options for legacy analog sources
  • Mirrored, dual outputs on HDBaseT and HDMI:
    • Supports dual display applications with both local and extended distance displays up to 328 feet (100 meters)
    • Eliminates cost associated with extra extension components; simplifies installation. HDMI output allows additional HDBaseT transmitter for dual long distance applications
  • 4K/UHD @ 30Hz capability:
    • Compatible with Ultra High Definition sources and displays
    • Supports high resolution applications such as CAD, desktop publishing, and detailed financial reporting
  • Built-in 4K scaler:
    • Scales to and from most resolutions up to 4K to optimize content from any source to any monitor or projector up to 4K
    • Eliminates the need for external scaling components
  • AV, Ethernet, and control over HDBaseT:
    • Delivers 4K/UHD video, audio, 100BaseT Ethernet, and control through a single cable
    • Eliminates multiple cable runs between source, control system router and display
  • Power over Ethernet for remote-powered HDBaseT receiver:
    • Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT
    • No local AC outlet required saves time and integration costs
  • Auto-switching:
    • Selects last connected HDMI or VGA source
    • Reduces complexity or eliminates control system completely

Atlona AT-UHD-CLSO-601 Specifications:

  • SKU: AT-UHD-CLSO-601
  • Video Resolutions:
    • VIDEO: VIDEO: 4096×2160 @24/25/30Hz, 3840×2160 @24/25/30Hz (UHD), 2048x1080p, 1080p @23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @50/59.94/60Hz, 720p @50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800, 1280×768, 1152×864, 1024×768, 800×600, 640×480
    • Composite/S-Video: NTSC, NTSC4, PAL, PAL-M, PAL-N, SECAM
  • Audio:
    • Analog Output: PCM 2Ch (de-embedded)
    • HDMI/HDBaseT Output: PCM 2Ch
  • Distance:
    • CAT5e/6 @ 4K: up to 230 feet (up to 70 meters)
    • CAT6a/7 @ 4K: up to 328 feet (up to 100 meters)
    • CAT5e/6 @ 1080p: up to 328 feet (up to 100 meters)
    • HDMI IN/OUT @ 4K: up to 15 feet (up to 5 meters)
    • HDMI IN/OUT @ 1080p: up to 30 feet (up to 10 meters)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • HDCP: Switchable – Compliant / Non complaint
  • Connector:
    • Firmware: Mini-B USB
    • HDBaseT: RJ45 (8P8C)
    • HDMI: Type A
    • VGA: 15-pin HD d-sub, accepts RGBHV, component, composite, or S-video with adaptor
    • LAN: RJ45 (8P8C), TCP/IP control
    • IR: 5-pin captive screw
    • RS-232: 3-pin captive screw
    • Audio: 5-pin captive screw
    • Power: 2-pin, 48V captive screw
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 33W
    • Idle Consumption: 3.1W
    • Supply:
      • Input: AC100~240V 50/60Hz
      • Output: DC 48V/3.125A
  • Dimension:
    • H x W x D: 1.73 x 17.08 x 10.04 (inch) / 44 x 433.8 x 255 (mm)
    • W/feet: 2.17 x 17.08 x 10.04 (inch) / 55.15 x 433.8 x 255 (mm)
    • Rack Unit: 1
  • Weight:
    • Device: 6.90lbs (3.12kg)
    • Shipping: 11.02lbs (5kg)
  • Certification:
    • Power Supply: CE, FCC, cULus, RoHS, CCC, RCM
    • Unit: CE, FCC
