Avolites 31-01-2210-PT
Touring Quartz Package

OUR PART #:  31-01-2210-PT

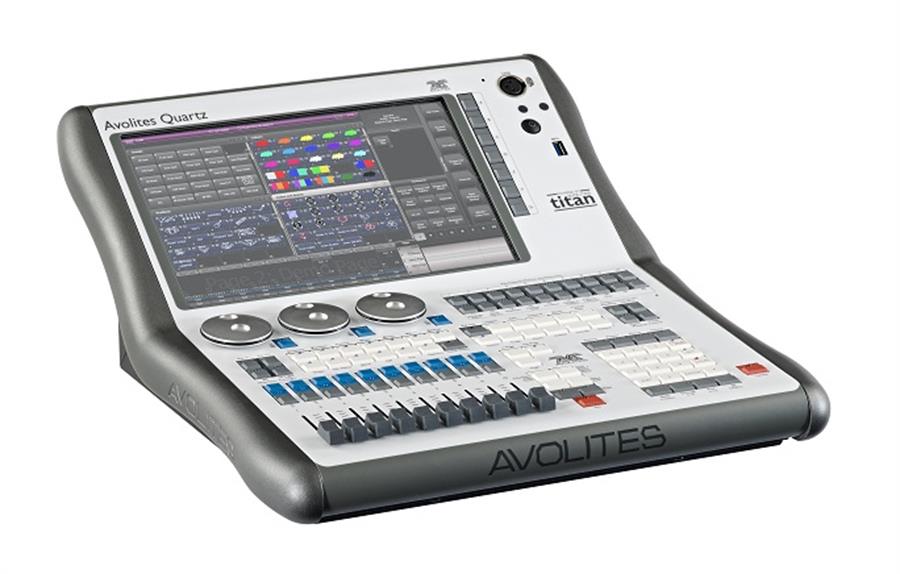

The Avolites Touring Quartz Package (Part Number 31-01-2210-PT) consists of the Quartz controller with cover, Littlite and flight case.
Learn More

Call for price! Not available online.
List Price: $10,625.00

Similar Products

The Avolites Touring Quartz Package (Part Number 31-01-2210-PT) consists of the Quartz controller with cover, Littlite and flight case. The Quartz allows you to access the full power of Titan anywhere with its complete with on-board processing and a bright, vibrant 12.1” screen. In Avolites smallest full-featured console, this super compact unit, measures only 16.73 inches (42.5cm) wide making the Quartz the ideal companion for all your lighting projects, from touring and festivals to clubs and one-offs.

Featuring the same high quality faders and hardware you’ve come to expect from Avolites, the Quartz can go anywhere you can, ideal for life on the road. Offering full compatibility with Multi user, the Quartz is also perfect for use as a back-up or extra programming surface, cutting your programming time. The Quartz is ready to benefit from multi band Sound to Light Triggering functionality, offered in Titan version 9.

Avolites Touring Quartz Package includes:

  • Titan Operating System
  • 12.1” High Brightness Touchscreen
  • 10 Playback Faders’ 1xGigabit ethercon port
  • 4 Physical DMX Ports
  • 16 DMX Universes with ArtNet or sACN
  • Expandable to 64 Universes via Titan NetProcessors
  • Front and Rear Mounted USB-3 ports
  • Cover
  • Littlite
  • Flight Case

Avolites Touring Quartz Package Specifications:

  • Part Number 31-01-2210-PT
  • Super compact form - just 42.5cm wide
  • 4 physical DMX XLR-5 connectors
  • 16 DMX universes from the console - 8192 channels
  • Compatible with Titan Net - up to 64 universes
  • Gigabit network port for Titan Net, Artnet and streaming ACN
  • Built in MIDI input, no extra boxes required
  • 10 precision playback faders
  • 3 high quality optical encoders
  • Compatible with Titan Remote
  • 20 programmable macro buttons
  • Supports multi-band Sound-to-Light
  • Bright and vibrant 12.1" angled touch sreen with brightness control
  • DVI-D for external display
  • Headphone output
  • Button layout harmonised with the rest of the Titan range
  • Robust construction - built for life on the road
  • Conveniently located front panel mounted super speed USB3 port
  • Expandable with Titan Mobile Wing through dedicated USB port
  • Dimensions:
    • Console Only:
      • W x D X H: 16.73 x 18.35 x 7.64 in (425 x 466 x 194mm)
      • Weight: 17.64 lbs (8Kg)
    • Console in Flight Case:
      • W x D X H: 20.47 x 18.90 x 11.81 in (520 x 480 x 300mm)
      • Weight: 34.50 lbs (15.65Kg)
