Product Overview
iRig Acoustic Stage is a hi-tech solution for reproducing the full sound of acoustic guitars and other instruments with high-quality sound live on stage and in the studio. Designed with a high-tech MEMS microphone and preamplifier/processor the iRig provides high-quality natural sound and advanced features.

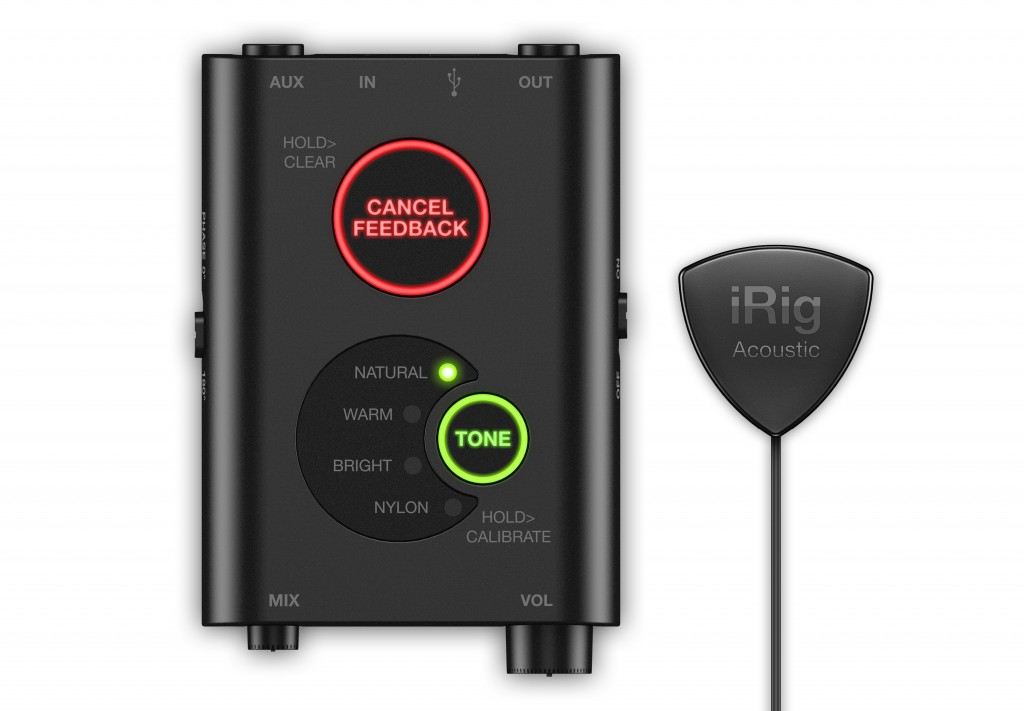

IK Multimedia IRIG-ACOUSTIC-STAGE Includes:
- Dedicated iRig Acoustic Microphone
- iRig Acoustic Stage DSP/interface
- Dedicated iRig Acoustic microphone
- Belt clip
- Carrying case
- 2 x 1.5V AA Battery
IK Multimedia IRIG-ACOUSTIC-STAGE Features:
- Advanced MEMS microphone clips on to sound hole
- Preamp/DSP unit
- Dramatically improves your live acoustic sound
- 1/4" AUX input with volume for piezo, magnetic pickups or other onboard electronics
- 1/4" Output with level control for amplifier or PA system
- USB audio out for recording on a computer or mobile device
- Cancel Feedback with multiple frequency feedback cancelling
- 6 tone presets
- Personal instrument calibration
- Works on any acoustic, acoustic electric or ukulele with round sound hole
- Phase switch for optimizing dual source sound
IK Multimedia IRIG-ACOUSTIC-STAGE Specifications:
- Dedicated iRig Acoustic Microphone
- Microphone Type: MEMS
- Polar Pattern: omnidirectional
- Frequency Response: 30 Hz - 20 kHz, +/-3dB
- Max SPL: 130dB SPL
- Signal-to-Noise Ratio: 101 dBA
- Maximum soundboard thickness: 4mm / 0.16"
- Connections
- Dedicated iRig Acoustic Microphone Input: 2.5mm / 3/32" TS mono jack
- AUX Instrument Input Connector: 6.3mm / 1/4" TS mono jack
- AUX Instrument Input Impedance: 1 MOhms
- Analog Output Connector : 6.3mm / 1/4" TS mono jack, line-level, low impedance
- Analog Output Impedance: 50 Ohms (can drive long cables without any loss)
- Digital Output Connector: micro-USB
- DSP/Interface
- AD and DA Resolution: 32-bit
- Sampling Rate: 48 kHz
- Interface Output: USB class compliant audio output via micro-USB port
- Power: battery power (2xAA), USB bus power
- Battery Life: approximatively 12 hours of continuous usage with alkaline batteries and 15 hours with rechargeable high quality Ni-MH AA cells (2000 mAh and up)
