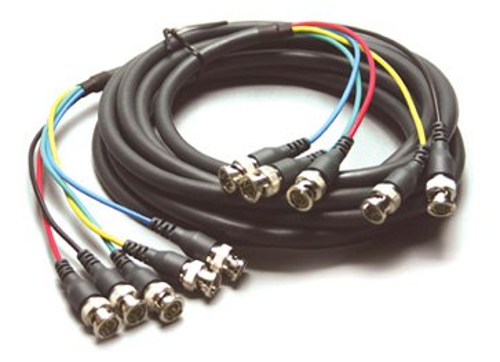

Kramer C-5BM/5BM-35
35 ft 5-BNC RGBHV Mini Coax Cable

OUR PART #:  C-5BM/5BM-35

Kramer's 5BM series cables are constructed of five mini coax cables in a single jacket with 75 Ohm BNC connectors at each end.
Learn More
Our Price: $48.80
List Price: $61.00
You save 20%!
Write the first review.
Kramer C-5BM/5BM-35
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Kramer's 5BM series cables are constructed of five mini coax cables in a single jacket with 75 Ohm BNC connectors at each end. They offer outstanding quality, durability, and high performance for any RGBHV video signal application.

Kramer C-5BM/5BM-35 Features:

  • Quality Construction: Constructed from flexible, high quality 5 mini coax cable
  • Applications: Well-suited for routing typical computer graphics video RGBHV signals to display devices such as projectors and monitors
  • Easy Installation: Breakout length is 0.5m (18") on any cables 1.8m (6 ft) or longer. Shorter cables have approx. 0.18m (7") breakout length

Kramer C-5BM/5BM-35 Specifications:

  • Construction:
    • Coax Center Conductor: 28 AWG 7/36 tinned copper
    • Dielectric: Foam polyethylene
    • Shield: 90% braid 38 AWG tinned copper
    • Coax Jacket Colors: Red, green, blue, yellow, black
    • Outer Jacket: PVC
    • Outer Jacket Color: Dark gray with white lettering
  • Diameters:
    • Center Conductor: 0.38mm (0.015")
    • Individual Coax: 2.75mm (0.108")
    • Outside Diameter: 9.2mm (0.362")
  • Dielectric:
    • 1.6mm (0.063")
  • Electrical:
    • Impedance: 75 Ohms
    • DC Resistance: 237 Ohms/km (72.2 Ohms/1000 ft)
    • Capacitance: 60pF/m (18.3pF/ft)
    • Velocity of Propagation: 78%
    • Temperature: -20°C to +75°C (-4° to +167°F)
    • Attenuation (dB/100 ft.):
      • -0.6dB @1MHz
      • -1.4dB @5MHz
      • -2.1dB @10MHz
      • -4.7dB @50MHz
      • -6.8dB @100MHz
      • -9.2dB @180MHz
      • -14.2dB @400MHz
      • -20.1dB @750MHz
      • -23.8dB @1000MHz
  • Regulatory:
    • UL: CL2
    • CSA: C(UL) CL2
