EAW-Eastern Acoustic Wrks VFM159i
Passive Two-Way Stage Monitor


The Eastern Acoustic Works VFM159i is a 2-way stage monitor loudspeaker system that includes a direct-radiating, vented...
Learn More
Our Price: $1,127.00
Write the first review.
EAW-Eastern Acoustic Wrks VFM159i
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

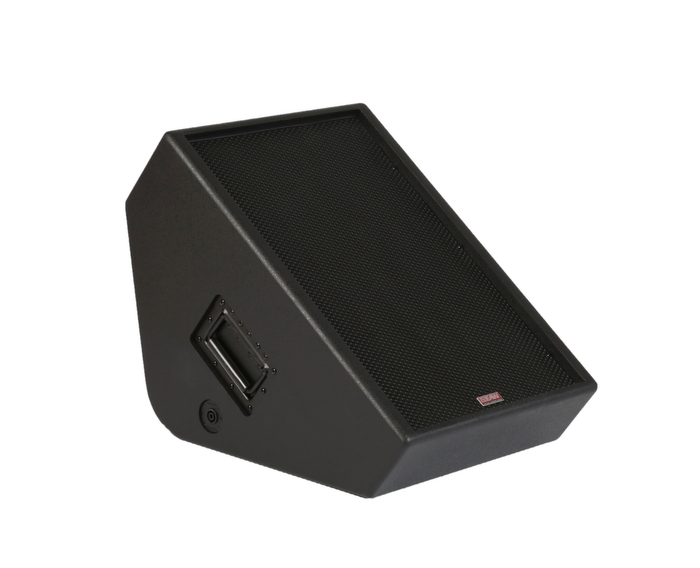

The Eastern Acoustic Works VFM159i is a 2-way stage monitor loudspeaker system that includes a direct-radiating, vented, 15" low-frequency (LF) cone transducer and a 1" exit / 1.75-" voice coil high-frequency (HF) compression driver loaded with a large, square, user-rotatable 90×60 coverage pattern horn.

Thanks to the fact that VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary "beamwidth-matching" internal passive crossover/filter networks that set the MK Series apart from all other 2-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFM159i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

A classic stage monitor design with NL4 connectors located on both sides for easy loop-through connections, the VFM159i models also includes a pole mount cup should they need to be used as small PA mains. Additionally, they feature handles that are integrated into the enclosure design, giving the low-profile enclosure a sleek, clean appearance.

It includes a 6-year manufacturer warranty.

EAW VFM159i Features:

  • Two-way, full range loudspeakers
  • Classic stage monitor design
  • Pole mount cup for use as main system
  • Large, user-rotatable horns for optimized pattern control
  • Beamwidth-matching crossover point
  • Long-lasting reliability

EAW VFM159i Specifications:


  • Subsystem:
    • Transducer: LF 1x 15" cone; HF 1x 1" exit, 1.75" voice coil compression driver
    • Loading: LF Vented; HF Horn-loaded
  • Operating Mode:
    • Amplifier Channels: Single-amp LF/HF
    • External Signal Processing: High pass filter
  • Performance
    • Operating Range (-10 dB, Hz): 63 – 20 k
    • Axial Sensitivity (1W @ 1m, dB SPL, Full-Range, Passive): 97
    • Power Handling / Impedance (Watts @ Ohms, Full-Range, Passive): 600 @ 8
    • Calculated Maximum Output Peak (dB SPL, Full-Range, Passive): 132
    • Calculated Maximum Output Long Term (dB SPL, Full-Range, Passive): 126
    • Nominal Coverage (degrees):
      • Horizontal: 90
      • Vertical: 60
    • Subsystems:
      • LF: 15" cone, vented
      • HF: 1" exit compression driver, horn-loaded
    • Powering: Full range


  • Dimensions (H [stage] x W x D ): 19.3" x 17.5" x 23.4" (489 x 445 x 596mm)
  • Floor Angle (degrees up): 37
  • Weight:
    • Net: 49 lbs. (22.2 kg)
    • Shipping: 65 lbs. (29.5)
