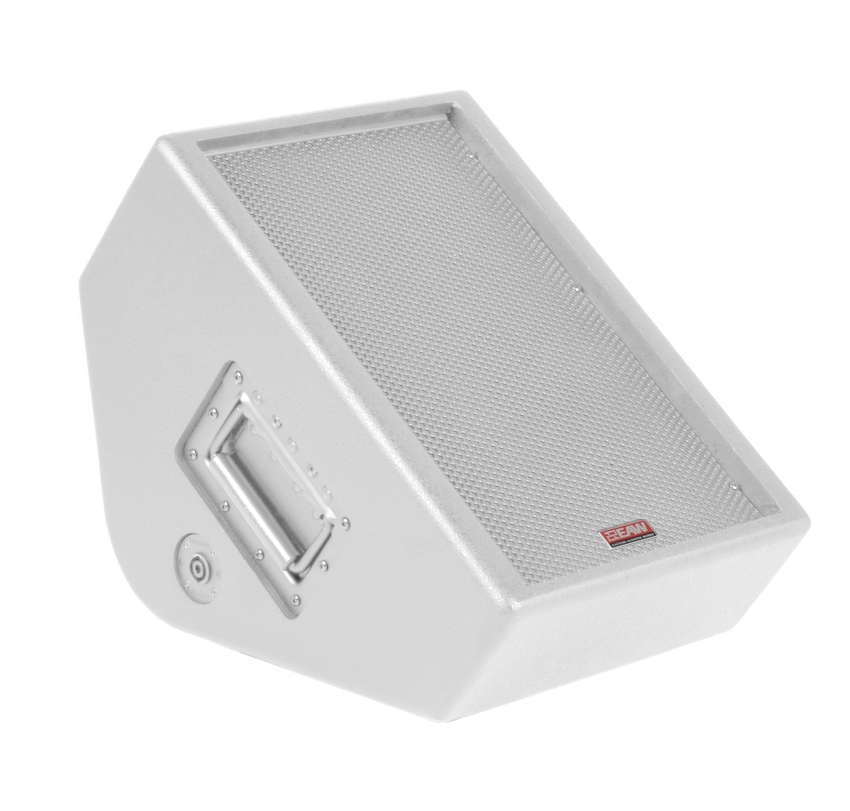

EAW VFM109I-WHITE VFM109i 10" Passive Two-Way Full-Range Stage Monitor, White

The VFM109i from Eastern Audio Works is a 2-way stage monitor loudspeaker system that features a direct-radiating, vented, 10" LF cone transducer as well as a 1" exit / 1.75" voice coil HF compression driver that is loaded with a large, square, user-rotatable 90×60 coverage pattern horn. This particular model comes in a white finish.

The HF sections in the VF Series full range systems (VFR/VFM) are similar to those developed for the EAW MK Series, so their engineers could add the same revolutionary "beamwidth-matching" internal passive crossover/filter networks that set the MK Series apart from all other 2-way systems. If powered by via an EAW-specified amplifier or a UX-Series digital signal processor, the VFM109i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFM109i has a classic stage monitor design with NL4 connectors located on both sides for easy loop-through interfacing. They also provide a pole mount cup should they need to be used as small PA mains. The engineers also integrated handles to the enclosure design, giving the low-profile enclosure a sleek, clean appearance.

Comes with a 6 year warranty.

Applications:

• Band PA
• DJ System
• Dance Club
• Schools
• Houses of Worship
• Rental Systems,
• Mobile Churches
• Auditoriums
• More

Eastern Audio Works VFM109i Features:

• 2-way, full range loudspeakers
• Classic stage monitor design
• Pole mount cup for use as main system
• Large, user-rotatable horns for optimized pattern control
• Beamwidth-matching crossover point
• Long-lasting reliability

Eastern Audio Works VFM109i Specifications:

• Configuration
  • Subsystem:
    • Transducer: LF 1x 10" cone; HF 1x 1" exit, 1.75" voice coil compression driver
    • Loading: LF Vented; HF Horn-loaded
  • Operating Mode:
  • Amplifier Channels: Single-amp LF/HF
  • External Signal Processing: High pass filter
• Performance
  • Operating Range (-10 dB, Hz): 70 Hz – 20 kHz
  • Axial Sensitivity (1W @ 1m, dB SPL): Full Range Passive: 94
  • Power Handling / Impedance (Watts @ Ohms): Full Range Passive: 500 @ 8
  • Calculated Maximum Output Peak (dB SPL): Full Range Passive: 127
  • Calculated Maximum Output Long Term (dB SPL): Full Range Passive: 121
  • Nominal Coverage (degrees):
  • Horizontal: 90
  • Vertical: 60
• Physical
  • Finish: White
  • Dimensions:
    • Height (stage): 14.7" (376mm)
    • Width: 12.5" (317mm)
    • Depth: 17.8" (453mm)
    • Floor Angle (degrees up): 37
  • Weights:
  • Net: 32 lbs (14.5 kg)
  • Shipping: 42 lbs (19.1 kg)
