EAW-Eastern Acoustic Wrks VFM109i
10" Passive Two-Way Full-Range Stage Monitor, Black

OUR PART #:  VFM109I-BLACK

Eastern Audio Works' VFM109i is a 2-way stage monitor loudspeaker system that has a direct-radiating, vented...
Learn More
Our Price: $856.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks VFM109i
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

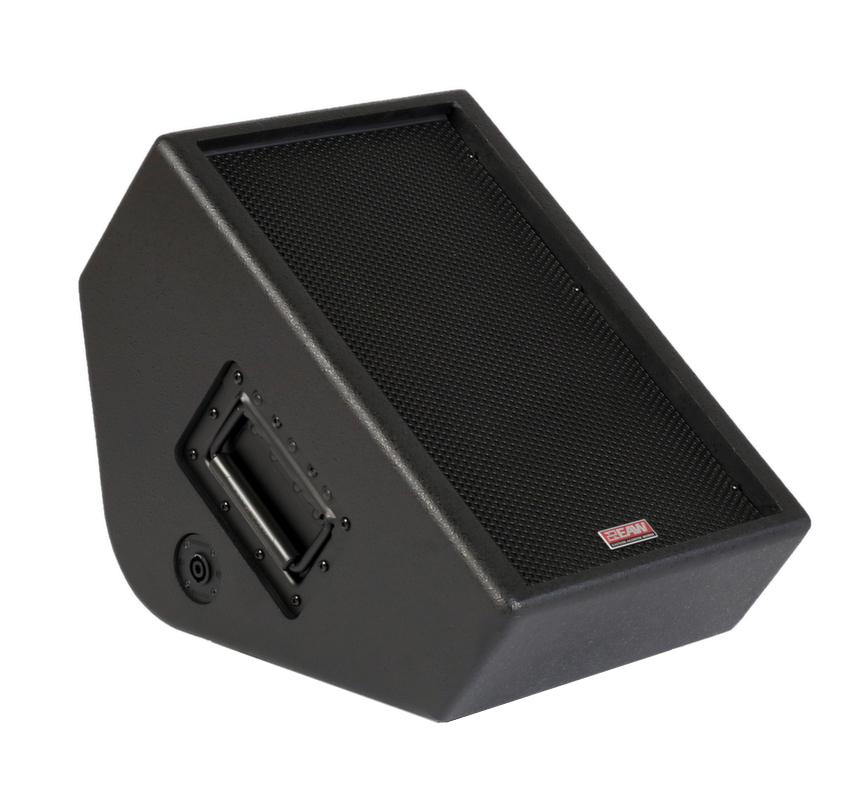

Eastern Audio Works' VFM109i is a 2-way stage monitor loudspeaker system that has a direct-radiating, vented, 10" LF cone transducer as well as a 1" exit / 1.75" voice coil HF compression driver loaded with a large, square, user-rotatable 90×60 coverage pattern horn. This particular model comes in a black finish.

Because the HF sections in the VF Series full range systems (VFR/VFM) are similar to those developed for the EAW MK Series, their engineers could incorporate the same revolutionary "beamwidth-matching" internal passive crossover/filter networks that set the MK Series apart from all other 2-way systems. If powered by via an EAW-specified amplifier or a UX-Series digital signal processor, the VFM109i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFM109i has a classic stage monitor design with NL4 connectors located on both sides for easy loop-through integration. They also provide a pole mount cup should they need to be used as small PA mains. Engineers built handles right into the enclosure design, giving the low-profile enclosure a sleek, clean appearance.

Comes with a 6 year warranty.

Applications:

  • Band PA a
  • DJ System
  • Dance Club
  • Schools
  • Houses of Worship
  • Rental Systems,
  • Mobile Churches
  • Auditoriums
  • More

Eastern Audio Works VFM109i Features:

  • 2-way, full range loudspeakers
  • Classic stage monitor design
  • Pole mount cup for use as main system
  • Large, user-rotatable horns for optimized pattern control
  • Beamwidth-matching crossover point
  • Long-lasting reliability

Eastern Audio Works VFM109i Specifications:

Configuration

  • Subsystem:
    • Transducer: LF 1x 10" cone; HF 1x 1" exit, 1.75" voice coil compression driver
    • Loading: LF Vented; HF Horn-loaded
  • Operating Mode:
    • Amplifier Channels: Single-amp LF/HF
    • External Signal Processing: High pass filter

Performance

  • Operating Range (-10 dB, Hz): 70 Hz – 20 kHz
  • Axial Sensitivity (1W @ 1m, dB SPL): Full Range Passive: 94
  • Power Handling / Impedance (Watts @ Ohms): Full Range Passive: 500 @ 8
  • Calculated Maximum Output Peak (dB SPL): Full Range Passive: 127
  • Calculated Maximum Output Long Term (dB SPL): Full Range Passive: 121
  • Nominal Coverage (degrees):
    • Horizontal: 90
    • Vertical: 60

Physical

  • Finish: Black
  • Dimensions:
    • Height (stage): 14.7" (376mm)
    • Width: 12.5" (317mm)
    • Depth: 17.8" (453mm)
    • Floor Angle (degrees up): 37
  • Weights:
    • Net: 32 lbs (14.5 kg)
    • Shipping: 42 lbs (19.1 kg)
