EAW-Eastern Acoustic Wrks QX594i
Three-Way Trapezoidal Enclosure Speaker, White

OUR PART #:  QX594I-WHITE

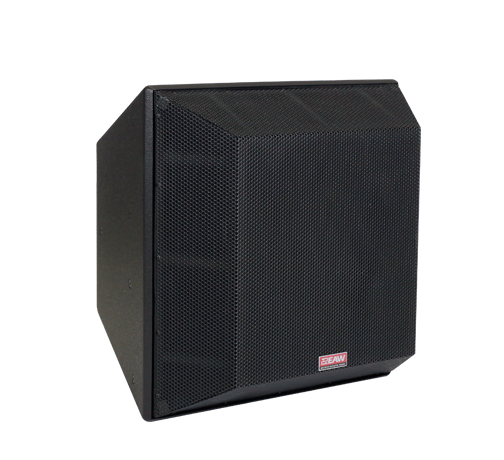

Note: Image shown is for display purposes only. This speaker comes in white. For more information please contact your Full Compass Sales Pro.
Learn More
Our Price: $4,841.00
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks QX594i
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Note: Image shown is for display purposes only. This speaker comes in white. For more information please contact your Full Compass Sales Pro.

The EAW QX594i loads an ultra-efficient mid/high compression driver with a 90° (h) x 45° (v) constant directivity horn. Four Phase Aligned™ 12-in low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction based on their spacing to extend pattern control well into the low frequency range.

Because the four low frequency transducers surround the coaxial mid/high compression driver symmetrically in both the horizontal and vertical planes, response across the full frequency spectrum appears to originate from a single point in space. This basic design facilitates an idealized summation of the three frequency sections, eliminating the anomalies associated with designs that physically offset the sections. This idealized coherence applies in both the horizontal and vertical planes throughout the coverage area.

EAW QX594i Features:

  • High output, bi-amplified, three-way performance
  • Broadband pattern control
  • Ultra-efficient, coaxial MF/HF compression driver
  • Four Phase Aligned 12-in cone transducers (verticaland horizontal pairs)
  • Installation flexibility

EAW QX594i Specifications:

  • Configuration
    • Subsystem:
      • Transducer:  LF 4x 12 in. cone; MF 1x. 2 in. exit 3.5 in. compression; HF 1x 2 in. exit, 1.75 in compression driver
      • Loading: LF: Phase-Aligned™; MF: Horn-loaded; HF: Horn-loaded
      • Amplifier Channels: Bi-amp (Passive MF/HF) LF, MF/HF
      • External Signal Processing: DSP w/EAW Focusing
  • Performance
    • Operating Range (-10 dB, Hz): 55 – 20k
  • Axial Sensitivity (1W @ 1m, dB SPL):
    • LF: 103
    • Passive MF/HF: 111
  • Power Handling/Impedance (Watts @ Ohms)
    • LF: 2000 @ 2 (single amp), 1000 @ 4 (2x pairs)
    • Passive MF/HF: 175 @ 8
  • Calculated Maximum Output Peak (dB SPL)
    • LF: 142
    • Passive MF/HF: 139
  • Calculated Maximum Output Long Term (dB SPL)
    • LF: 136
    • Passive MF/HF: 133
  • Nominal Coverage (degrees)
    • Horizontal: 90
    • Vertical: 45
  • Powering: Bi-amplified (passive MF/HF)
  • Dimensions (inches/millimeters)
    • Height (front): 27.96/710
    • Height (rear): 15.87/403
    • Width (front): 27.96/710
    • Width (rear): 15.87/403
    • Depth: 23.82/605
    • Trap. Angle (degrees per side): 19.9
    • Trap. Angle (degrees top and bottom): 19.9
  • Weights (pounds/kilograms)
    • Net: 134/61
    • Shipping: 149/68
