Elation Proteus Hybrid 470W Discharge IP65 Rated Hybrid Moving Head Beam, Spot, Wash Fixture

OUR PART #: PROTEUS-HYBRID MFR #: PRH021

Copied to clipboard

The Proteus Hybrid™ from Elation Lighting is an innovative full featured IP65 rated 3-in-1 luminaire which can be utilized as a beam, spot or wash fixture. ...Read more

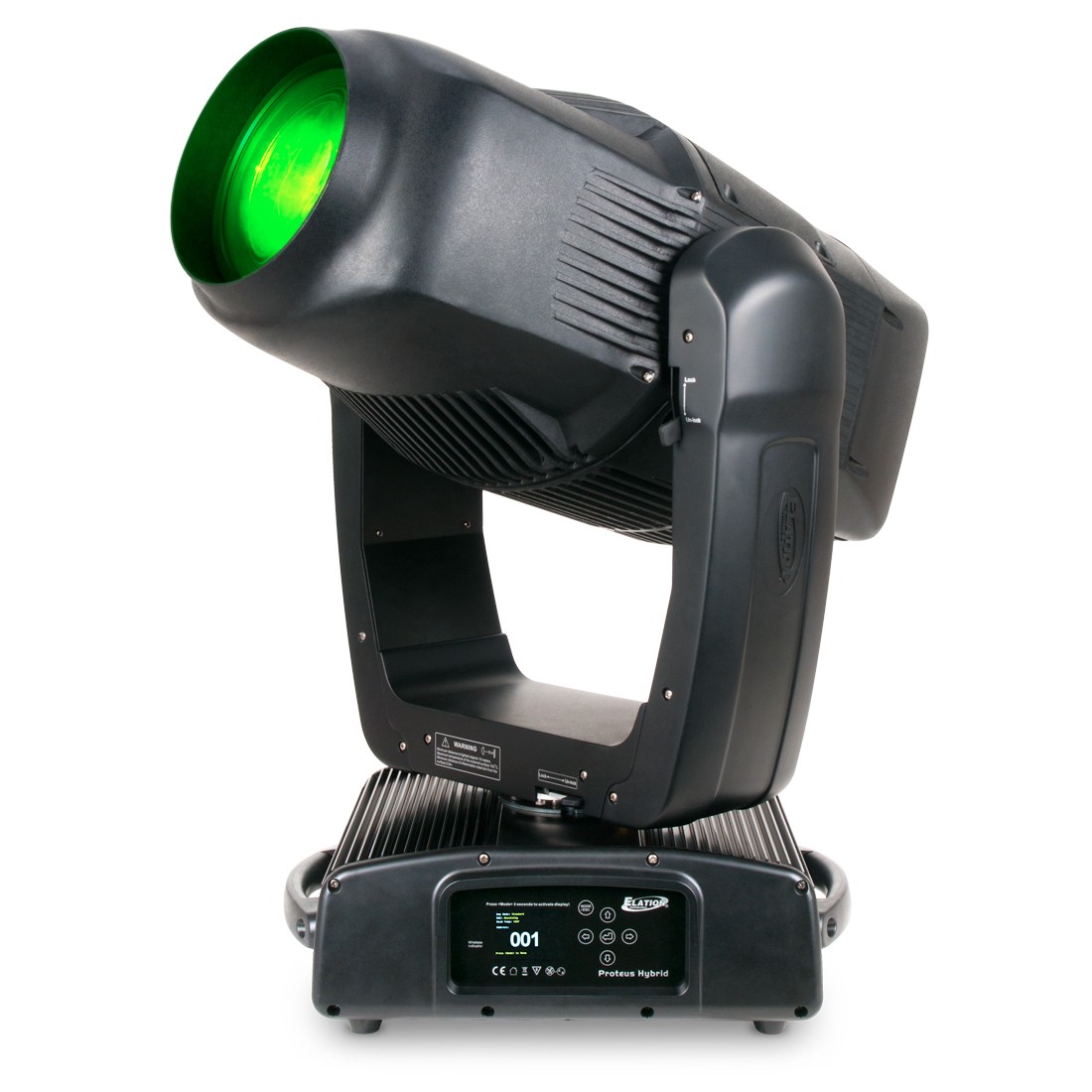

Elation Proteus Hybrid 470W Discharge IP65 Rated Hybrid Moving Head Beam, Spot, Wash Fixture Image 1
Elation Proteus Hybrid 470W Discharge IP65 Rated Hybrid Moving Head Beam, Spot, Wash Fixture Image 2
Elation Proteus Hybrid 470W Discharge IP65 Rated Hybrid Moving Head Beam, Spot, Wash Fixture Image 3
v8iZYjFaTDA
1 Video
Elation Proteus Hybrid 470W Discharge IP65 Rated Hybrid Moving Head Beam, Spot, Wash Fixture

Call for price! Not available online.

Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Proteus Hybrid™ from Elation Lighting is an innovative full featured IP65 rated 3-in-1 luminaire which can be utilized as a beam, spot or wash fixture. It features the Philips™ MSD Platinum 21R 470W 80CRI lamp, which produces 8,000K, 23,000 lumens. This fixture boasts of having an advanced optical system, a revolutionary internal thermal cooling system, 2.8° to 24° zoom in beam mode and 3.8° to 32° zoom in spot mode.

With true CMY color mixing plus linear CTO color correction, the Proteus Hybrid comes with 13 dichroic colors including UV, CTO, CTB and white (open), 8 rotating, interchangeable glass & metal gobos and 14 static-stamped gobos. Included are 6-way linear and 8-facet rotating prisms, bi-directional animation wheel, DMX, RDM (Remote Device Management), Art-NET and sACN (DMX over Ethernet) support, internal E-FLY™ wireless DMX receiver. Cabling for the Proteus Hybrid includes 5pin IP DMX in/out, RJ45 etherCON in/out and powerCON TRUE1 in connections. Additional control options come from the 6 button control full color 180° reversible menu display, while the Proteus Hybrid's electric specifications include 700W max power consumption and a multi-voltage universal auto switching power supply (100-240V).

Features

  • IP65 Rated Dust and Water Protection
  • 3-in-1 Beam, Spot and Wash Luminaire
  • Innovative Auto Focus Function
  • Minimal Lux Loss in Spot Mode
  • 6-Way Linear and 8-Facet Rotating Prisms with Prism Overlay Function
  • Bi-Directional Animation Wheel
  • Full CMY Color Mixing and Linear CTO Color Correction
  • Pan/Tilt Lock
  • Art-NET and sACN (DMX over Ethernet) Support

Specifications

  • Source:
    • Philips™ MSD Platinum 21R 470W Lamp
    • 23,000 Total Lumen, 8,000K, 80CRI
  • Effects:
    • 6-Way Linear and 8-Facet Rotating Prisms
    • Prism Overlay Function
    • Bi-Directional Animation Wheel
    • Strobe: 1-18fps
    • Dimming: 0% - 100%
  • Color:
    • True CMY-Flag Color Mixing
    • Linear CTO Color Correction
    • 13 Dichroic Colors Including UV, CTO, CTB + White
  • Gobos:
    • (2) Gobo Wheels
    • (8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
    • Size: OD 16.6mm / ID 9.0mm
    • (14) Static-Stamped / Indexing Metal Gobos
  • Control / Connections:
    • (3) DMX Channel Modes (25 / 27 / 39)
    • RDM (Remote Device Management)
    • 6 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • Battery Powered Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • Internal E-FLY™ Wireless DMX Receiver
    • 5pin IP DMX In/Out
    • RJ45 etherCON In/Out (Art-NET, sACN)
    • powerCON TRUE1 Power In
  • Size / Weight:
    • Length: 17.5” (445mm)
    • Width: 22.5” (572mm)
    • Vertical Height: 31.5” (800mm)
    • Weight: 84.0 lbs. (38 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 700W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
  • Optional Accessories:
    • 1322000054 E Loader III

Note

NOTE: *Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
