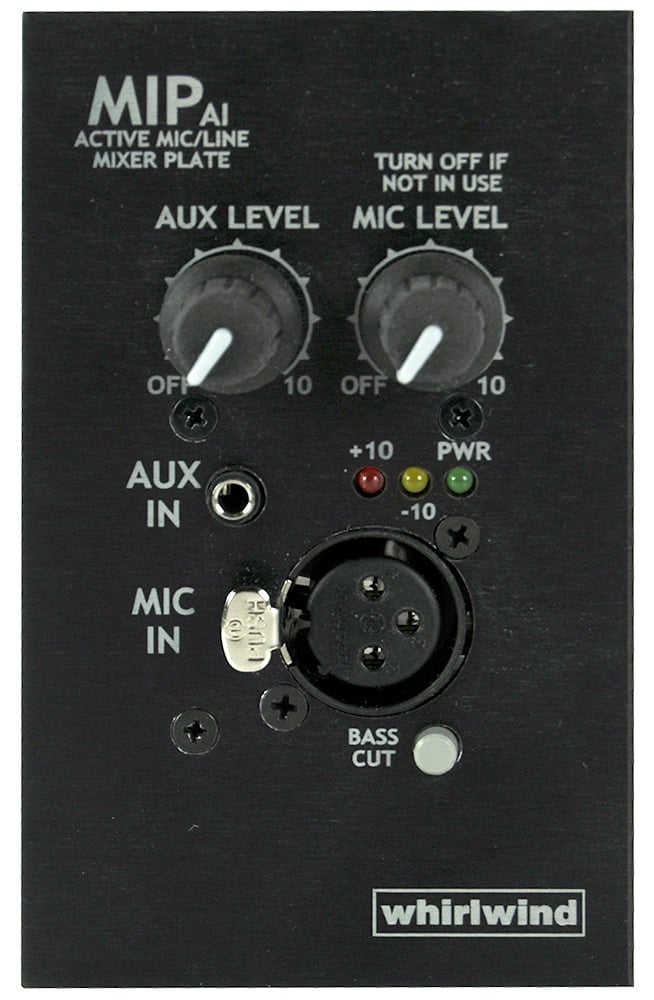

Whirlwind MIPAI
Single Gang Media Input Plate

OUR PART #:  MIPAI

The Whirlwind MIPAI media input plates are active...
Learn More
Selected Model Price: $114.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Whirlwind MIPAI
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Whirlwind MIPAI media input plates are active, dual input mixer plates designed to combine line and microphone input sources into a single line level balanced output that can be sent over long distances to remote audio processing equipment. Applications include gymnasiums, banquet halls, conference centers and others where local volume control is desired for the source material. Separate level controls are provided for each input and deliver enough gain to drive modern power amplifiers to full output.

Up to three MIPAI plates can be daisy-chained together and powered from a single supply located in the equipment rack. Features include LED level indicators, a bass cut switch on the mic input for reducing rumble and a 3.5mm aux input jack that automatically sums stereo inputs to mono. Screw terminal connections are provided and wiring can be done with two pieces of BeldenĀ® 8451 type wire or a single Cat5 type wire. Electrical backbox depth of 2.5" minimum recommended for gangable box type, 2.125" for utility box type.

MIPAI Termination Box with Screw Terminal I/O, XLRM Output, and Power Supply
Whirlwind MIPAO/PS MIPAI Termination Box with Screw Terminal I/O, XLRM Output, and Power Supply
Whirlwind's MIPAO is a direct audio output box designed to connect the output of the Whirlwind MIPAI plate to signal processing gear and the 24 VDC wall power supply.
95.61 108.00 11

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available

To be the first to review this item, click here.

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
