Christie Digital DHD599-GS
5625 Lumen DLP HD Laser Projector in White - Body Only

OUR PART #:  DHD599-GS

NOTE: Some gear shown above are NOT INCLUDED and sold separately . This model comes with the projector body only.
Learn More

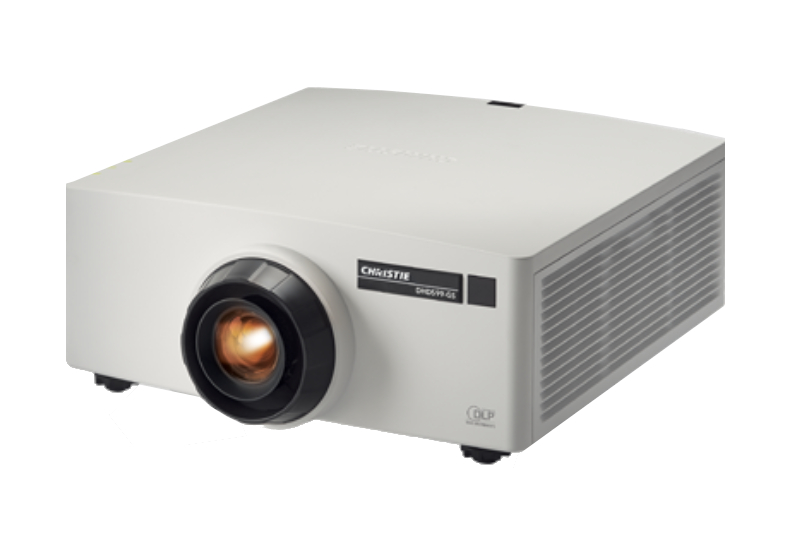

Christie Digital DHD599-GS - Front View
Christie Digital DHD599-GS - Control Panel View
Christie Digital DHD599-GS - Rear View

Click a thumbnail to see more images. (5 total)

Similar Products

NOTE: Some gear shown above are NOT INCLUDED and sold separately. This model comes with the projector body only. For more information on this and other products, please contact your Sales Pro.

Featuring laser phosphor illumination, the Christie DHD599-GS 1DLP® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of low-cost operation. This model (Part Number 140-035109-XX) comes in white, and includes just the projector body only. With its small footprint, low-weight, quiet operation and a full suite of lenses, the Christie DHD599-GS is ideal for boardrooms, higher education, houses of worship and smaller location-based entertainment venues.

Christie 599-GS projector models deliver accurate color reproduction, image quality and high-brightness. Christie 850-GS models include Christie BoldColor Technology for the most life-like images and natural color reproduction possible with laser phosphor illumination – an industry first.

Christie Digital DHD599-GS Features:

  • Laser phosphor illumination and 1DLP technology for excellent image quality and reliability
  • 20,000 hours of low-cost operation
  • Built-in color matching for a more uniform image in a multiple projector configuration
  • Features precise software color adjustments for hue, saturation and gain. Adjust the hue of each primary color component (red, green, blue and white) for perfecting images on an individual projector or for matching colors across multiple adjacent displays
  • Blending and warping capabilities for curved surfaces using the optional Dual processor warp module?
  • 24/7 operation
  • Standard HDBaseT input
  • Optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes???

Christie Digital DHD599-GS Specifications:

  • Part Number: 140-035109-XX
  • Brightness:
    • 5625 ISO lumens (typical)
    • 5000 Center lumens (typical)
    • 5000 ANSI lumens (typical)
  • Contrast: 1,500,000:1 Full On/Off (Christie RealBlackenabled): 300,000:1, Dynamic Contrast: 6000:1, Full On/Off (Christie RealBlackdisabled): 1200:1, ANSI: 250:1 ANSI (nominal)
  • Display: 1DLP 0.65" DMD
  • Resolution: 1920 x 1080 (16:9)
  • Illumination: Solid State (Laser Phosphor)
  • Illumination Life: 20,000 hrs
  • Inputs:
    • HDMI x 1
    • DVI-D x 1 (digital only)
    • DisplayPort x 1
    • VGA x 1
    • Composite video x 1 (RCA)
    • S-Video x 1 (mini DIN)
    • Component video (Y/Pb/Pr)
    • USB x 1 (type B mini) - display over USB
    • USB x 1 (type A) - image viewer or WiFi dongle (optional)
    • RJ45 x 1 (ChristiePresenter over wired network connection)
  • Signals: HDTV formats VGA through to WUXGA (1920 x1200)
  • Pixel clock: 162 MHz
  • Scan rates:
    • Horizontal 15 kHz to 100 kHz
    • Vertical: 24 Hz to 85 Hz
  • Monitor out: VGA x 1
  • Networking:
    • RS-232 in
    • Ethernet (10/100) RJ45 with ChristieNET connectivity
    • Built-in backlit keypad
    • Compatible with Crestron Connected, AMX Discovery
  • Standard accessories:
    • IR remote w/ wired remote jack (wire not included)
    • AC line cord for projector head
    • User manual
  • Optional accessories:
    • 1DWUSB-BGN (wireless dongle for video and control) (133-113106-XX)
    • Warp module (133-111104-XX)
    • Cable cover (140-106108-XX white | 140-106119-XX black)
    • Ceiling mount (108-506102-XX)
    • Portrait side cover (140-108100-XX white | 140-108111-XX black)
    • Christie One Mount (108-506102-XX)?
    • One Mount Extender Rod (121-125109-XX)
    • One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod) (121-126100-XX)
  • Lens mount:
    • Tool-free lens insertion system
    • Boresight adjustable
    • Motorized horizontal and vertical lens offset
    • Motorized zoom and focus adjustment
  • Lenses:
    • 0.75-0.95: 1 zoom lens G (140-119102-XX)
    • 0.95-1.22 :1 zoom lens G (140-101103-XX)
    • 1.22-1.52: 1 zoom lens HP G/GS (140-131106-XX)
    • 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-100102-XX)
    • 1.22-1.53: 1 zoom lens standard G/GS except 700/850-GS (140-132107-XX)
    • 1.52-2.89:1 zoom lens G (140-102104-XX)
    • 2.90-5.50: 1 zoom lens G/GS (140-107109-XX)
  • Offsets:
    • +/-60% vertical?
    • +/-15% horizontal
  • Power:
    • voltage: 100-240VAC @ 50/60 Hz
    • consumption: 550W max, 280W eco mode
    • current: 6.0A max
  • Dissipation: 1774 BTU/hr max, Full power mode: 1875.5BTU/hr +/-15% ECO mode: 954.8 BTU/hr +/-15%
  • Audible noise: Standard Mode: 38dB(A), Eco Mode:34dB(A)
  • Dimensions (LxWxH):
    • Physical: 19.9 x 17.95 x 7.5 in (505 x 456 x 190mm) w/o feet
    • Shipping: 24.6 x 23.5 x 13.4 in (626 x 596 x 341mm)
  • Weight:
    • Physical: 36.0 lbs (16.5 kg)
    • Shipping: 49.2 lbs (22.3 kg)
  • Operating environment:
    • Temperature: 5 to 40°C (40 to 104°F)
    • Humidity: 10-85% non-condensing
  • Regulatory:
    • UL/CSA/IEC 60950-1
    • FCC Class A, FDA, CE, CCC, KC, EAC, PSE, C-tick, EAC?, SABS, BIS, VCCI, RCM and South Africa
    • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
    • RoHS, REACH, WEEE
  • Limited warranty:
    • 3 years parts and labor on the projector
    • 3 years or 15,000 hours parts and labor on the illumination system*
    • Contact an authorized Christie representative for full details of Christie Digital's limited warranty

NOTE: *Please reference the Christie Standard Limited Warranty document for details.

0.75-0.95 Zoom G/GS Lens
Christie Digital 140-119102-01 0.75-0.95 Zoom G/GS Lens
The Christie Digital 140-119102-01 lens has a  0.75-0.95:1 throw ratio on HD/WUXGA and 0.79-1.0:1 throw ratio on WXGA.? The 140-119102-01 lens projects a screen with a 50"-300" screen width.
2,130.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
0.95-1.22:1 Zoom Lens for Christie G-Series Projectors
Christie Digital 140-101103-01 0.95-1.22:1 Zoom Lens for Christie G-Series Projectors
The Christie 140-101103-01 Zoom Lens is a projector lens for the Christie DHD550-G and DWU550-G DLP projectors. It features a 0.95-1.22:1 throw ratio.
2,055.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
LENS, 2.9-5.50:1 ZOOM G/GS
Christie Digital 140-107109-01 LENS, 2.9-5.50:1 ZOOM G/GS
The Christie Digital 140-107109-01 is a 2.90-5.50:1 zoom lens?.Applies to: Christie DHD555-GS Christie DHD600-G Christie DHD700-GS Christie DHD850-GS Christie DWU555-GS Christie DWU600-G Christie DWU700-GS Christie DWU850-GS ...
1,895.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
1.52-2.89:1 Zoom Lens for Christie G-Series Projectors
Christie Digital 140-102104-01 1.52-2.89:1 Zoom Lens for Christie G-Series Projectors
The Christie 140-102104-01 Zoom Lens is a projector lens for the Christie DHD550-G and DWU550-G DLP projectors. It features a 1.52-2.89:1 throw ratio.
1,850.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
1.22-1.52:1 Zoom Lens for Christie G-Series Projectors
Christie Digital 140-100102-01 1.22-1.52:1 Zoom Lens for Christie G-Series Projectors
The Christie 140-100102-01 Zoom Lens is a projector lens for the Christie DHD550-G and DWU550-G DLP projectors. It features a 1.22-1.52:1 throw ratio.
975.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
